Bernardo | SKU:
05-1065
Pre-order

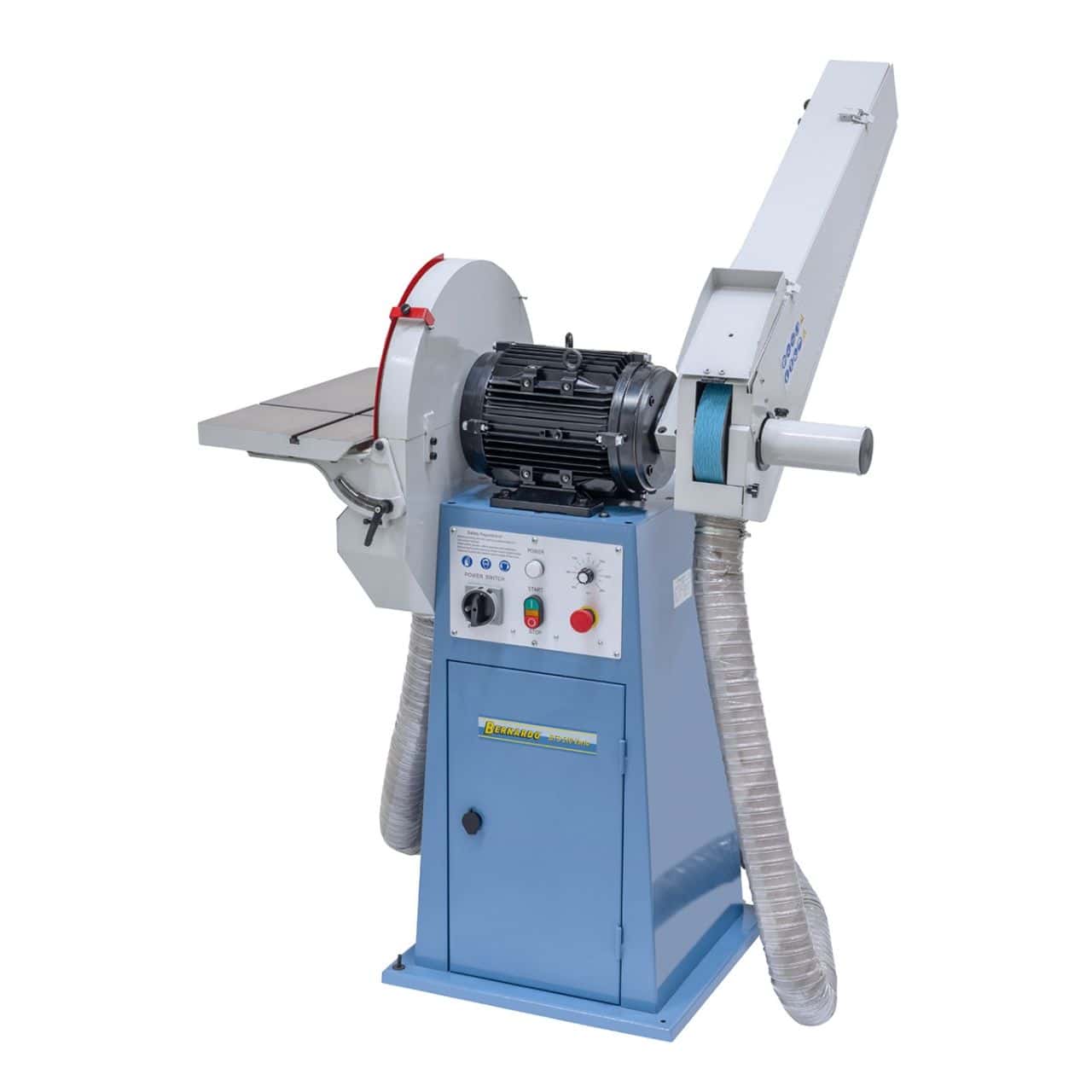

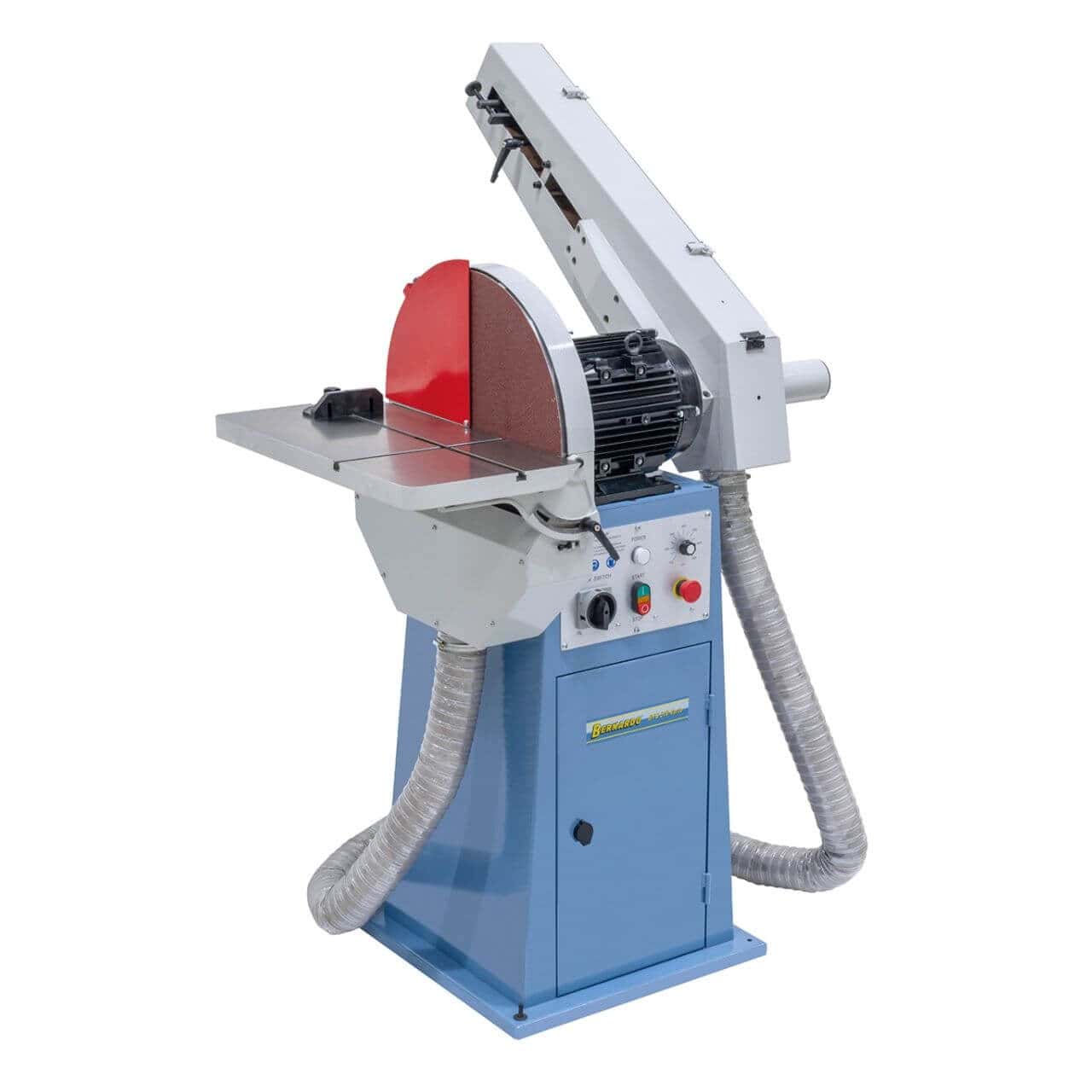

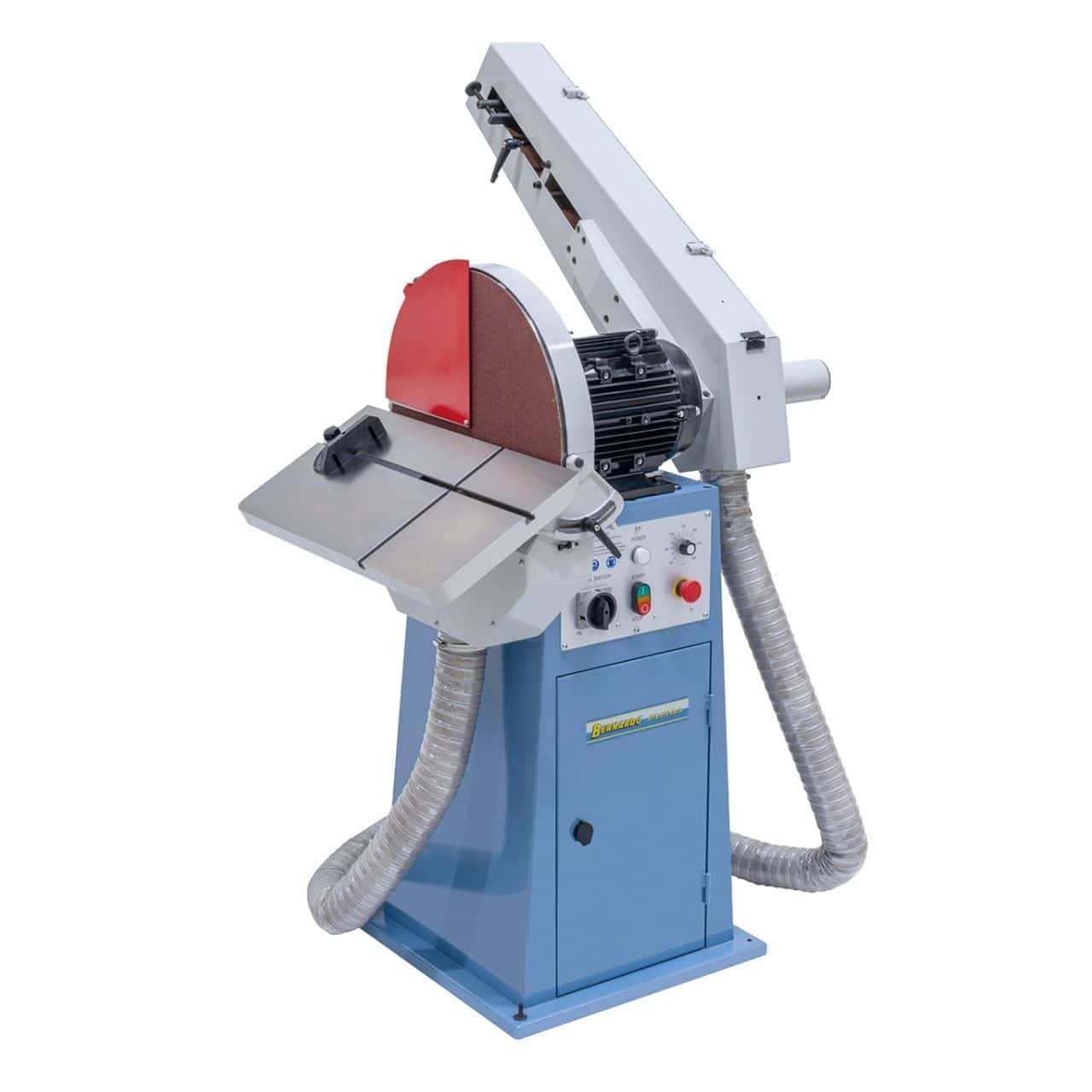

BTS 510 Vario disc and belt sander
€4.416,40
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
BTS 510 Vario disc and belt sander is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description

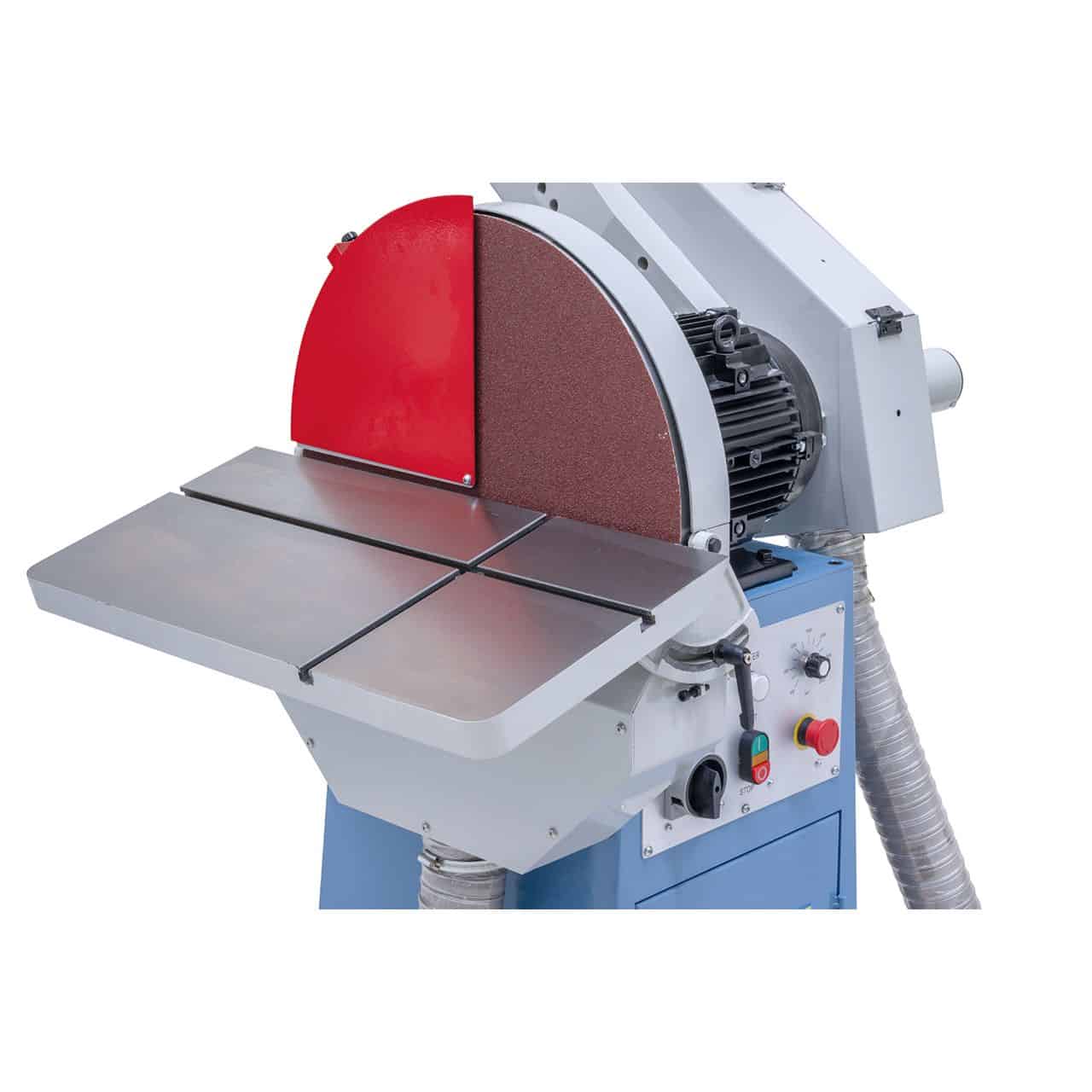

- The sanding table is mounted below the center to optimize the wear of the abrasive wheel : This configuration allows for more complete use of the abrasive wheel, ensuring greater efficiency in the sanding process.

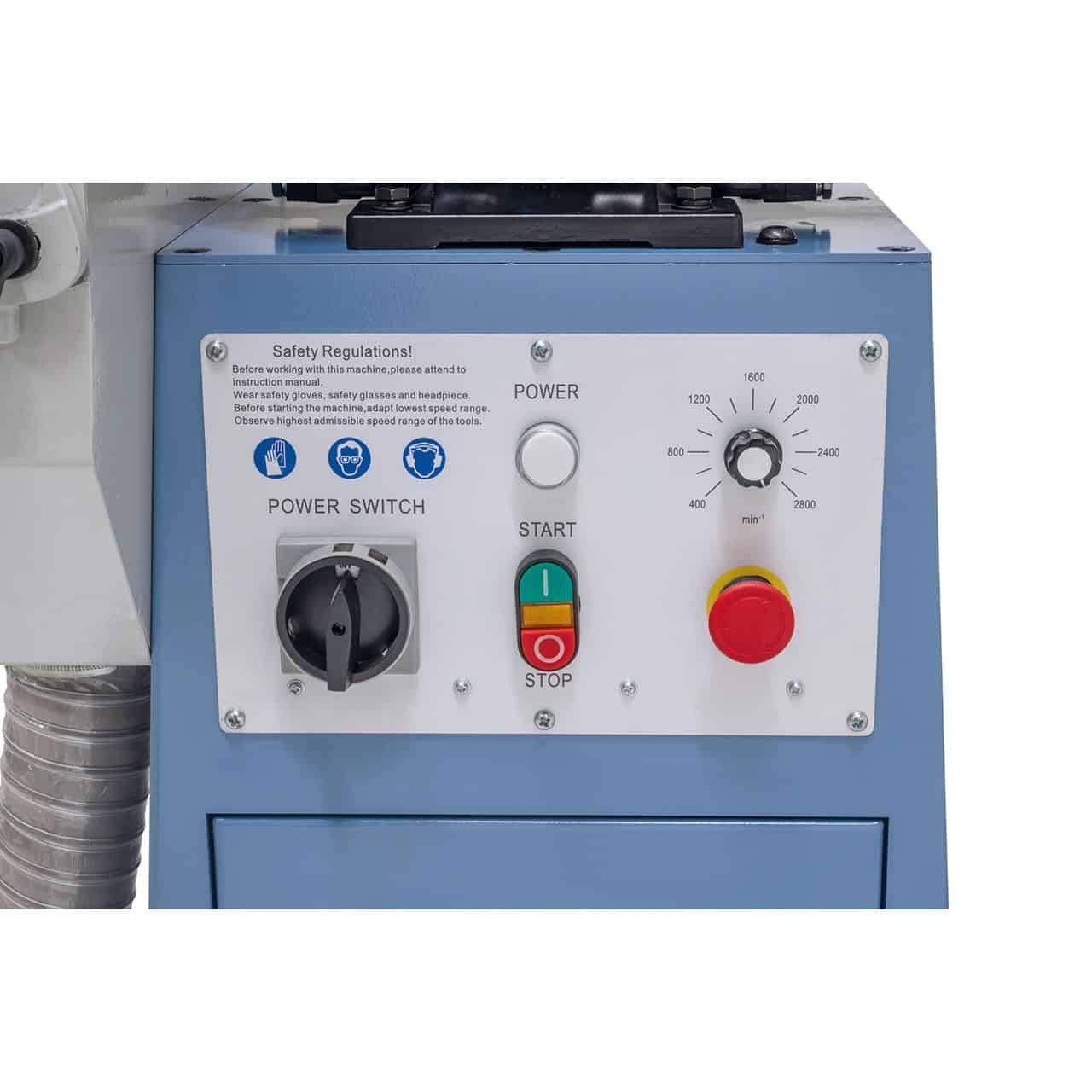

- Frequency converter included for continuous control of the rotation speed, ideal for adapting to the workpiece being worked on : The presence of the frequency converter allows the rotation speed of the grinding wheel to be continuously adjusted, which is particularly useful for adapting the machine to the specific needs of the workpiece being worked on.

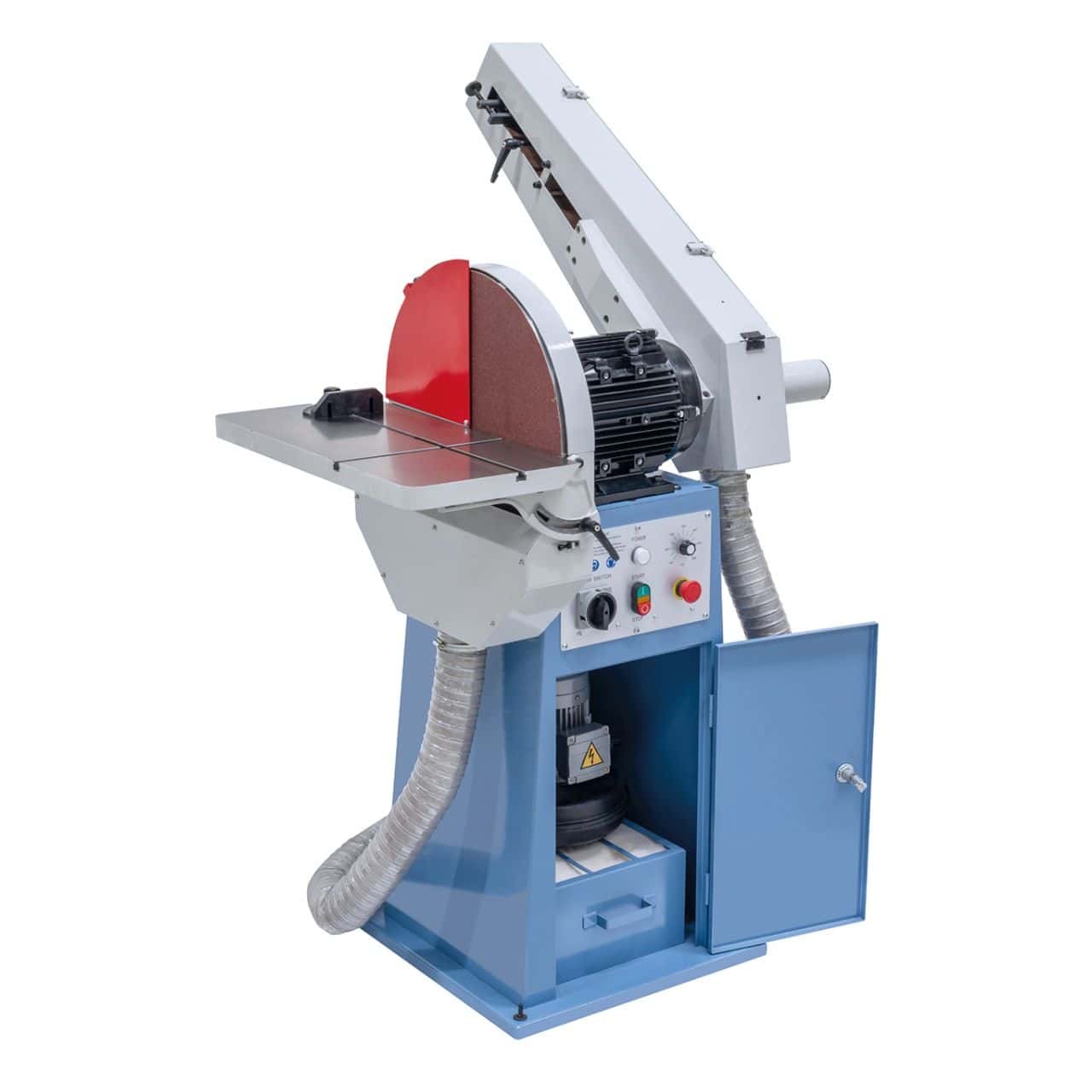

- The underlying frame features a lockable tool drawer : This underlying frame offers space for storing tools in an orderly and safe manner, thanks to the included lockable drawer.

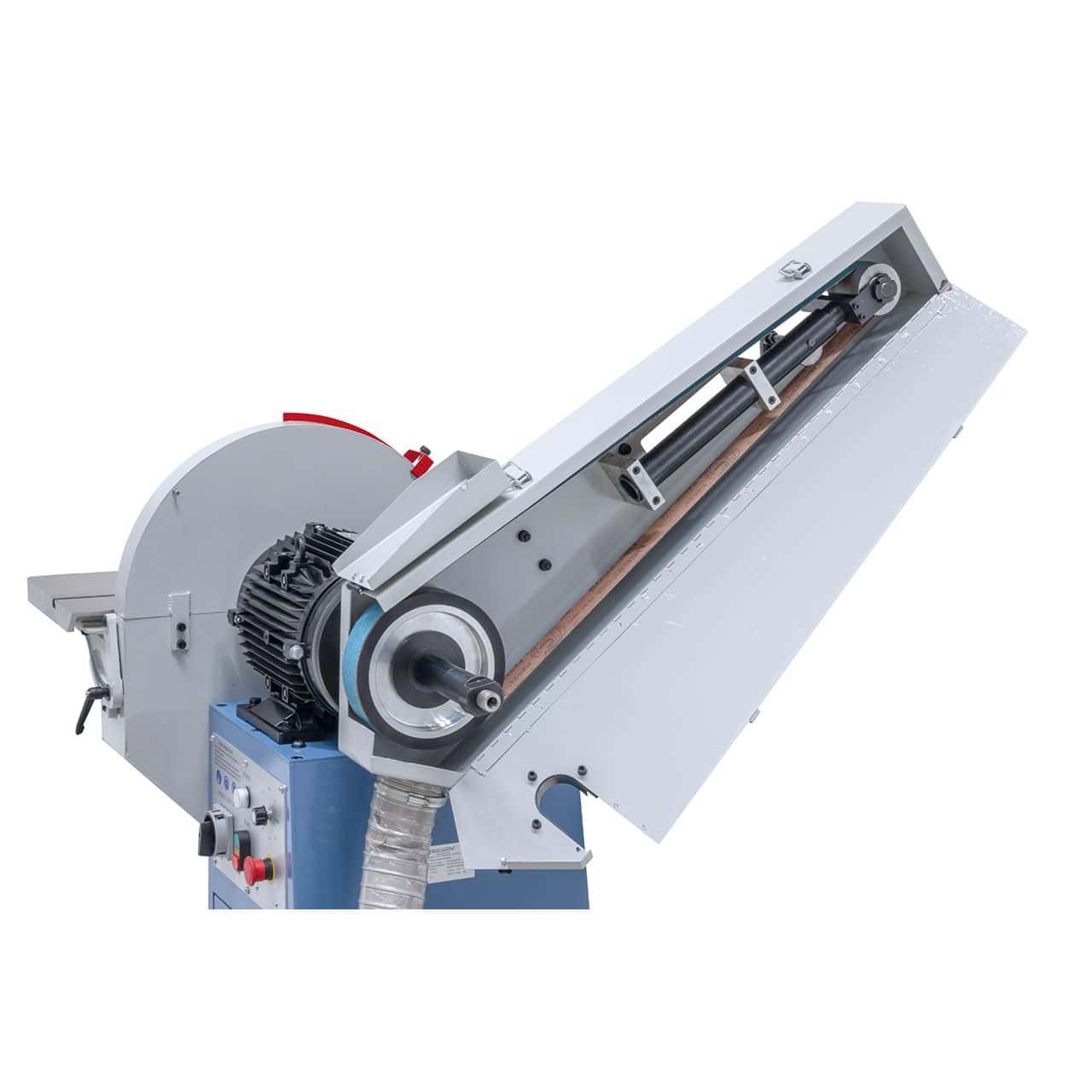

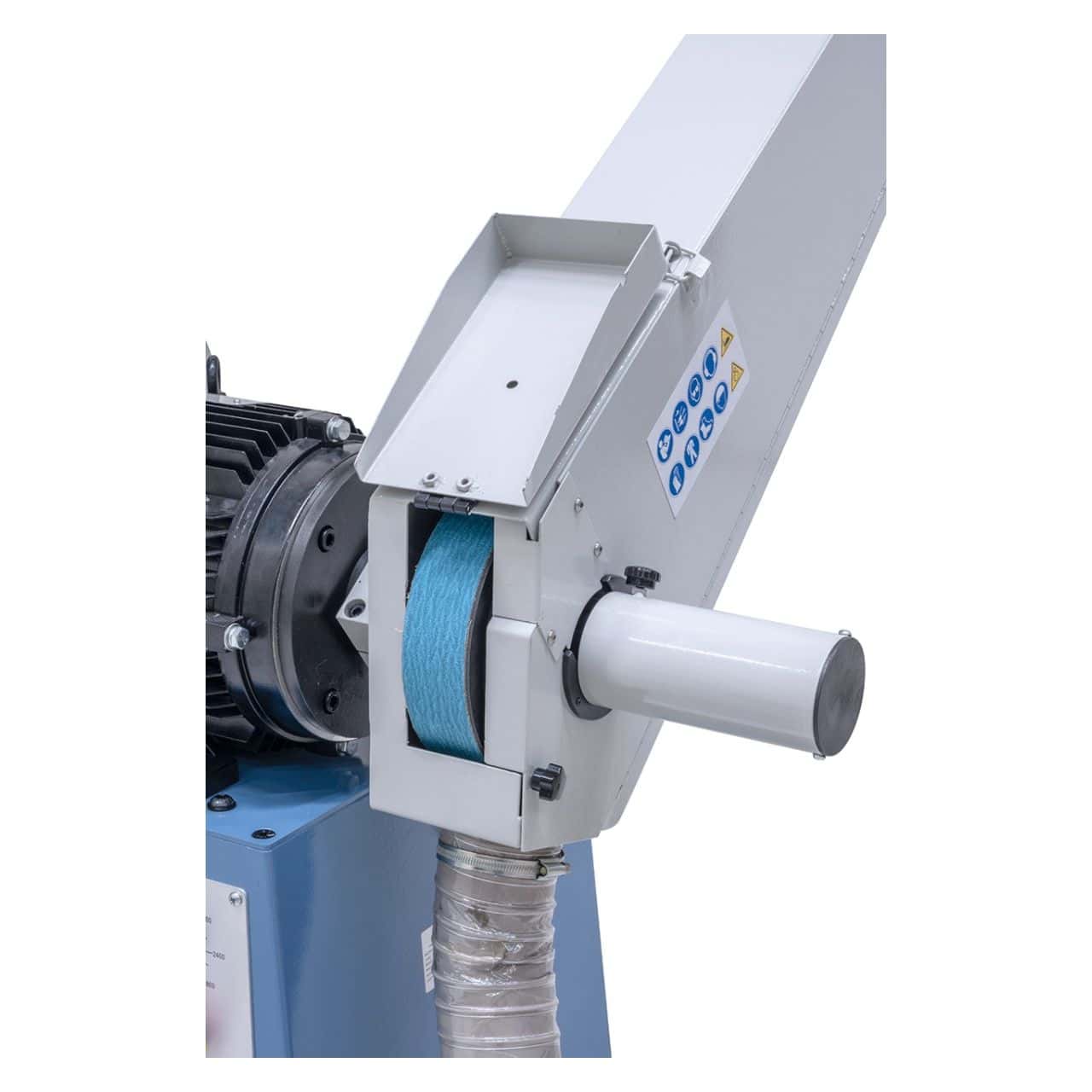

- The sanding arm can be individually adjusted and is equipped with a dust extraction connection : The ability to individually adjust the sanding arm allows the machine to be adapted to different work requirements, while the dust extraction connection helps to keep the work environment clean.

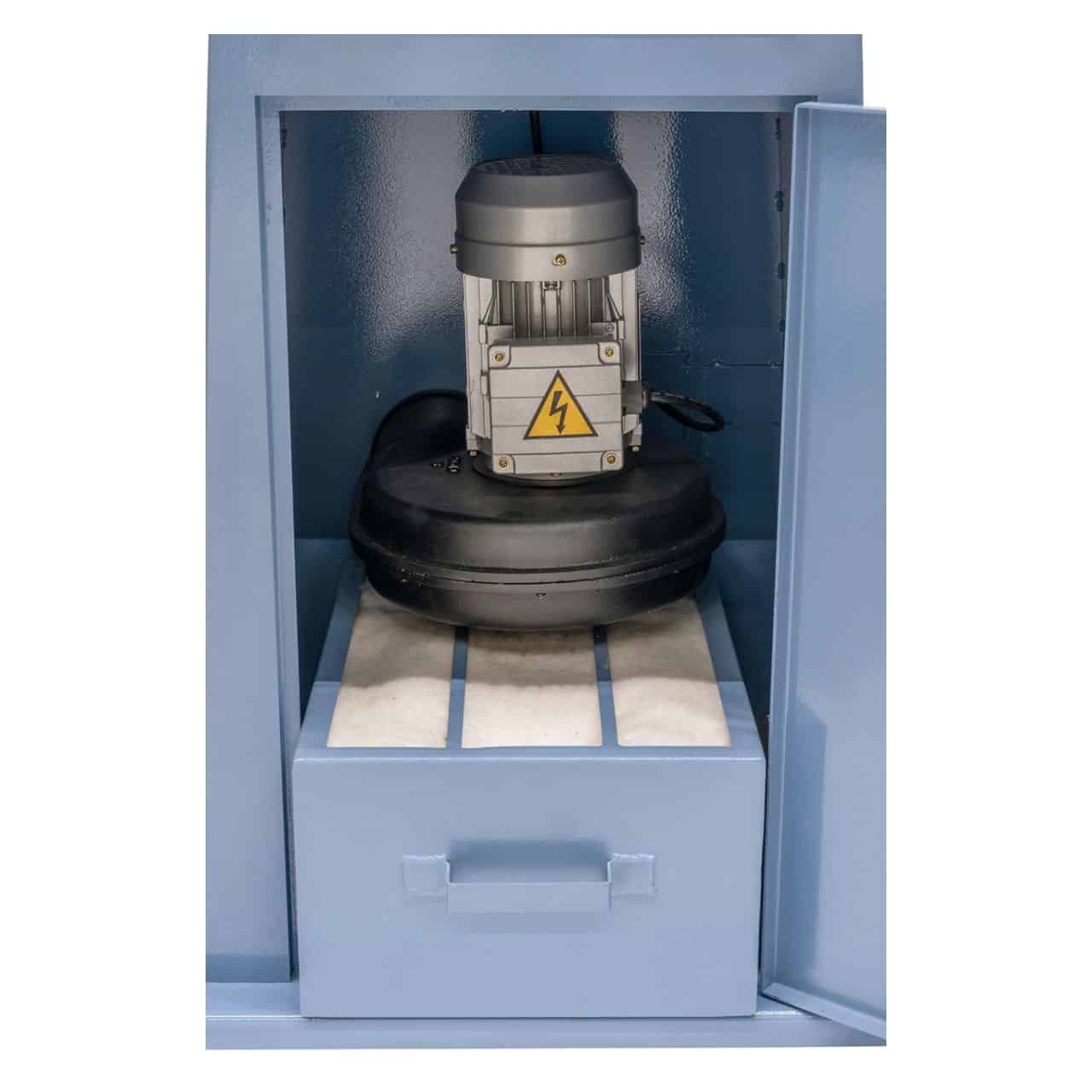

- Equipped with an integrated extraction system for optimal working conditions and clean air in the workplace : The presence of an integrated extraction system helps maintain a clean and safe working environment, improving overall working conditions.
- Heavy-duty, torsion-free machine structure : The machine's solid, torsion-free structure ensures greater stability during operation and less vibration, thus helping to achieve precise and uniform sanding results.

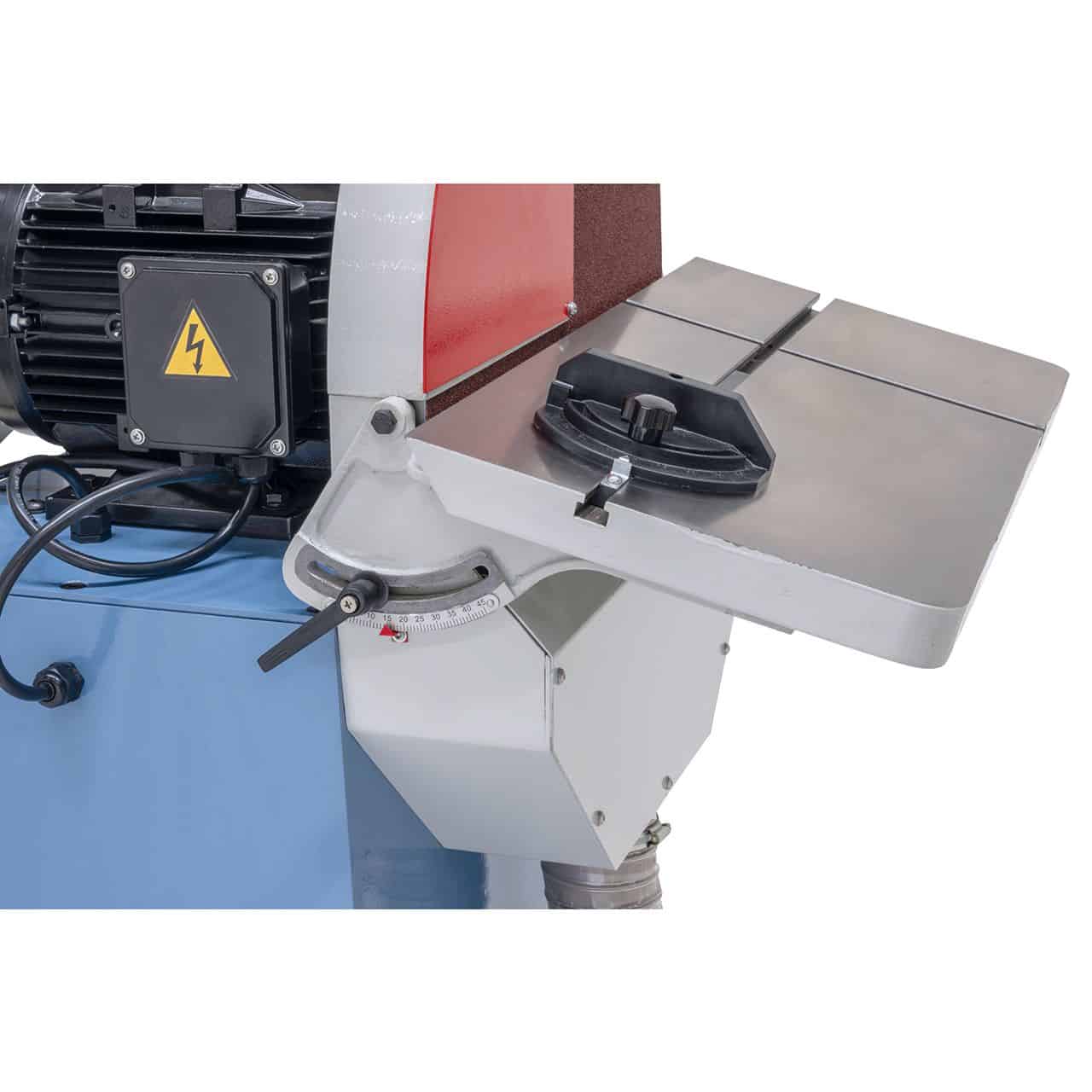

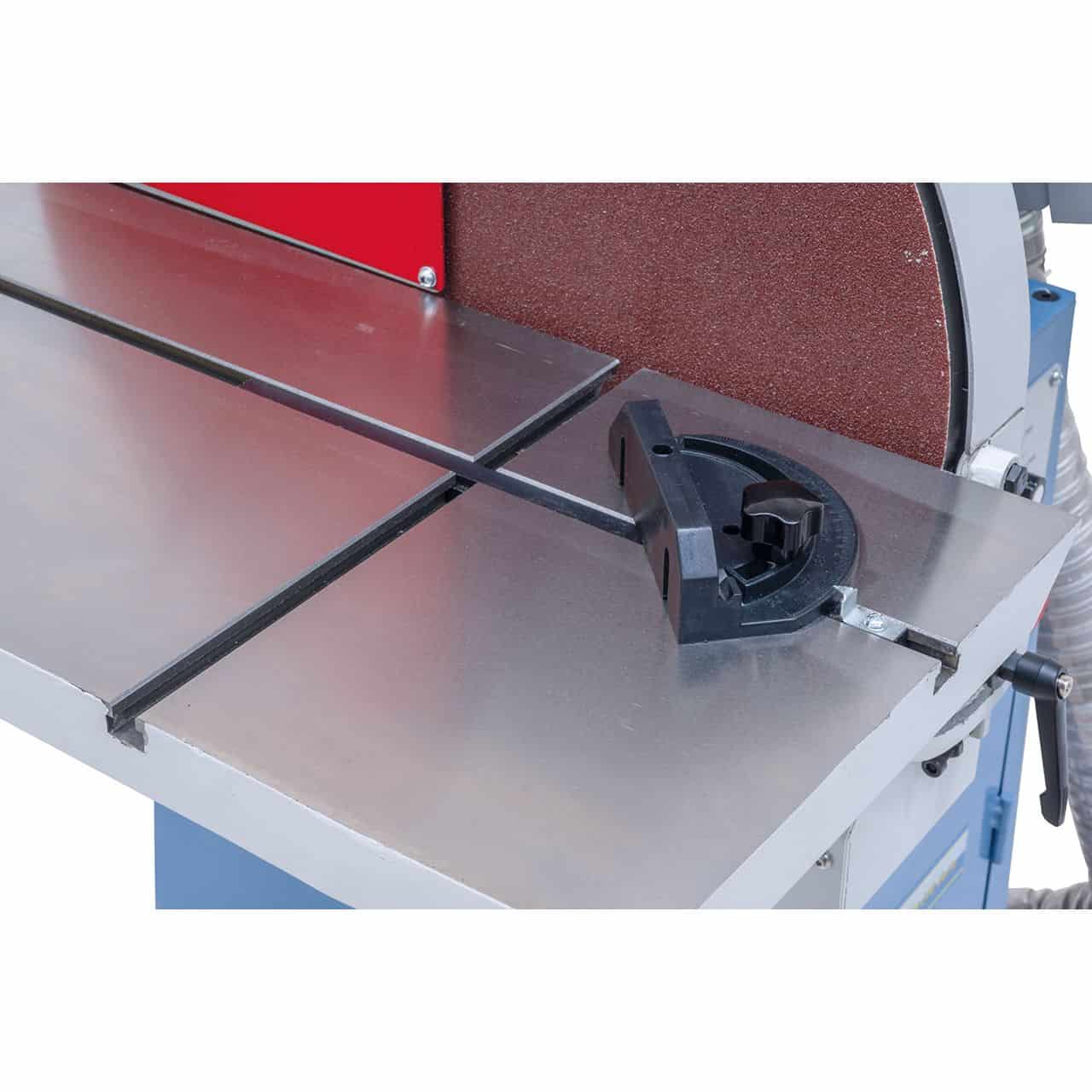

- Cast Iron Table with T-Slot for Attaching the Angle Guide : The cast iron table features a T-slot that allows the angle guide to be securely attached, ensuring precise angles during the sanding process.
- Powerful drive motor for best sanding results even during prolonged use : The presence of a powerful motor ensures reliable and high-quality performance during the sanding process, even under prolonged use.
Standard accessories:
- K60 sanding disc
- Plate with Velcro
- K100 abrasive belt
- Chamfering Guide
- Frequency converter
- Integrated suction
| Technical Specifications | Values |
|---|---|
| Abrasive Belt Dimensions | 2000 x 50 mm |
| Sanding Disc Diameter | 500 mm |
| Table Dimensions | 635 x 305 mm |
| Table Tilt Angle | 0° to +45° |
| Working Height | 1020 mm |
| Speed, Adjustable | 400 - 2800 rpm |
| Suction Connection | Ø 100 mm |
| Engine Power, 100% Duty Cycle | 2.2 kW |
| Engine Power, 40% Duty Cycle | 3.0 kW |
| Voltage | 400 V |
| Length | 1080 mm |
| Depth | 1020 mm |
| Height | 1600 mm |
| Approximate Weight | 197 kg |
Technical Specifications
Combina nastro e disco abrasivo, con velocità regolabile tramite inverter, aspirazione integrata e tavolo in ghisa con guida angolare.
È adatta per metalli, inox, plastica e legno, ideale per levigatura di superfici, sbavatura e lucidatura di saldature.
Sì, grazie all’inverter di frequenza integrato la velocità è regolabile in continuo da 400 a 2800 rpm.
La macchina utilizza un nastro abrasivo 2000 x 50 mm e un disco abrasivo Ø 500 mm con fissaggio velcro per cambio rapido.
Sono inclusi disco Ø 500 mm grana 60, nastro abrasivo grana 100, guida angolare, inverter di frequenza e sistema di aspirazione integrato.
