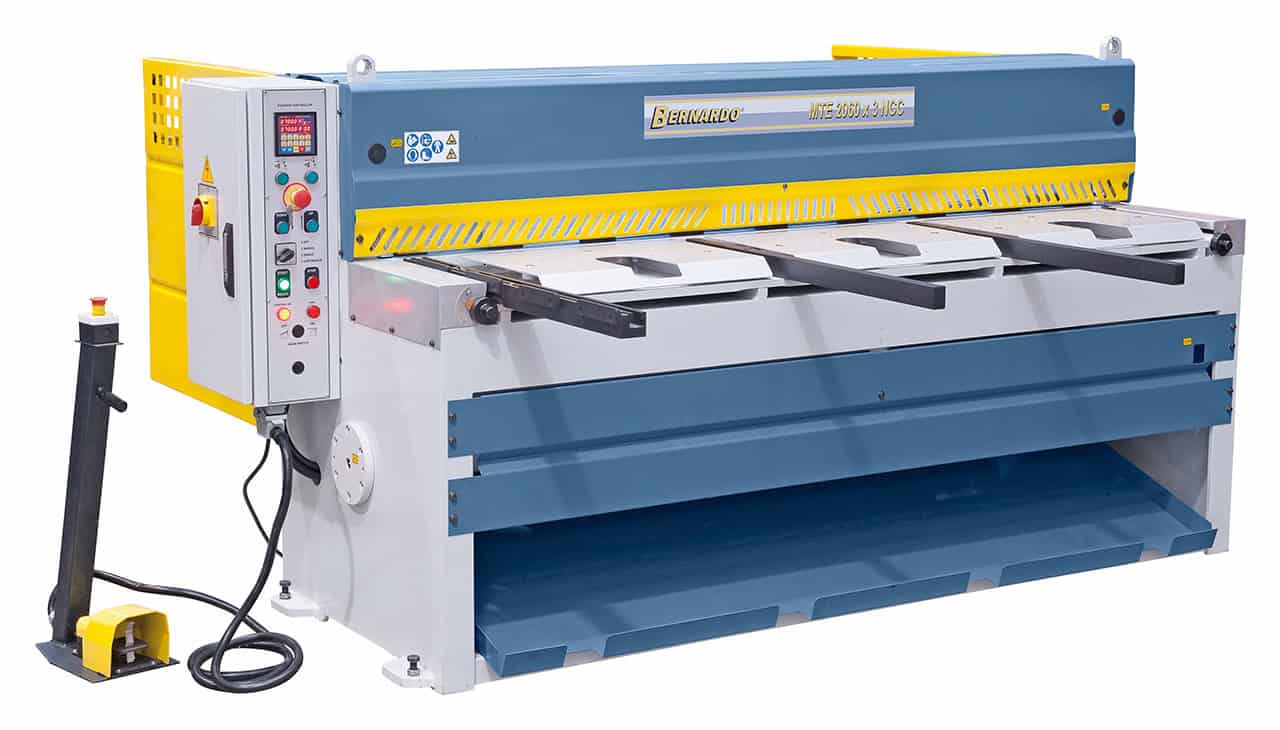

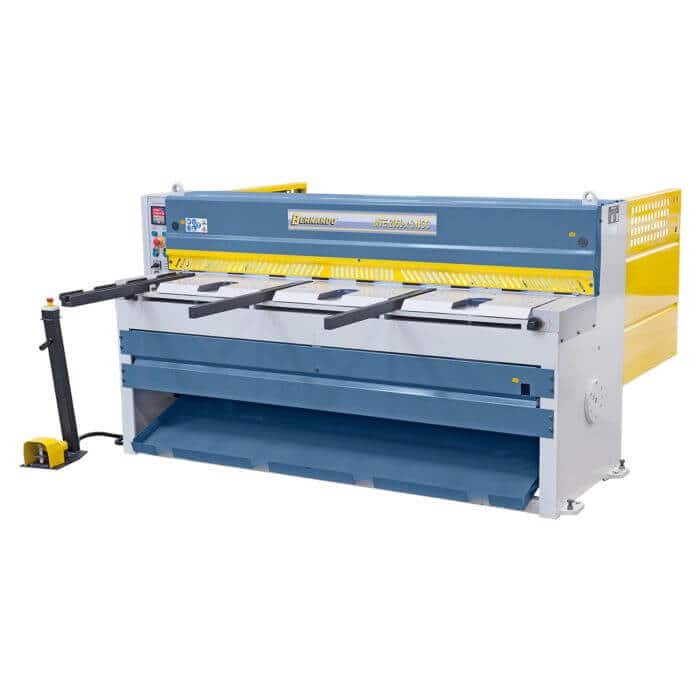

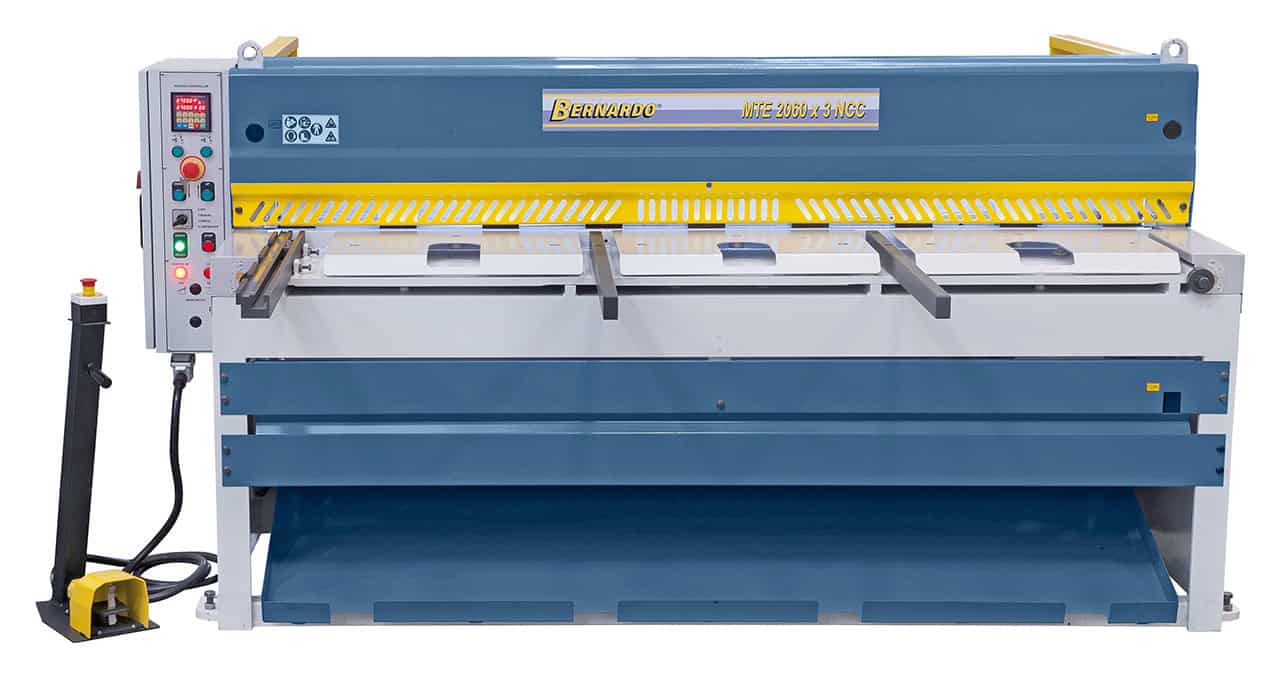

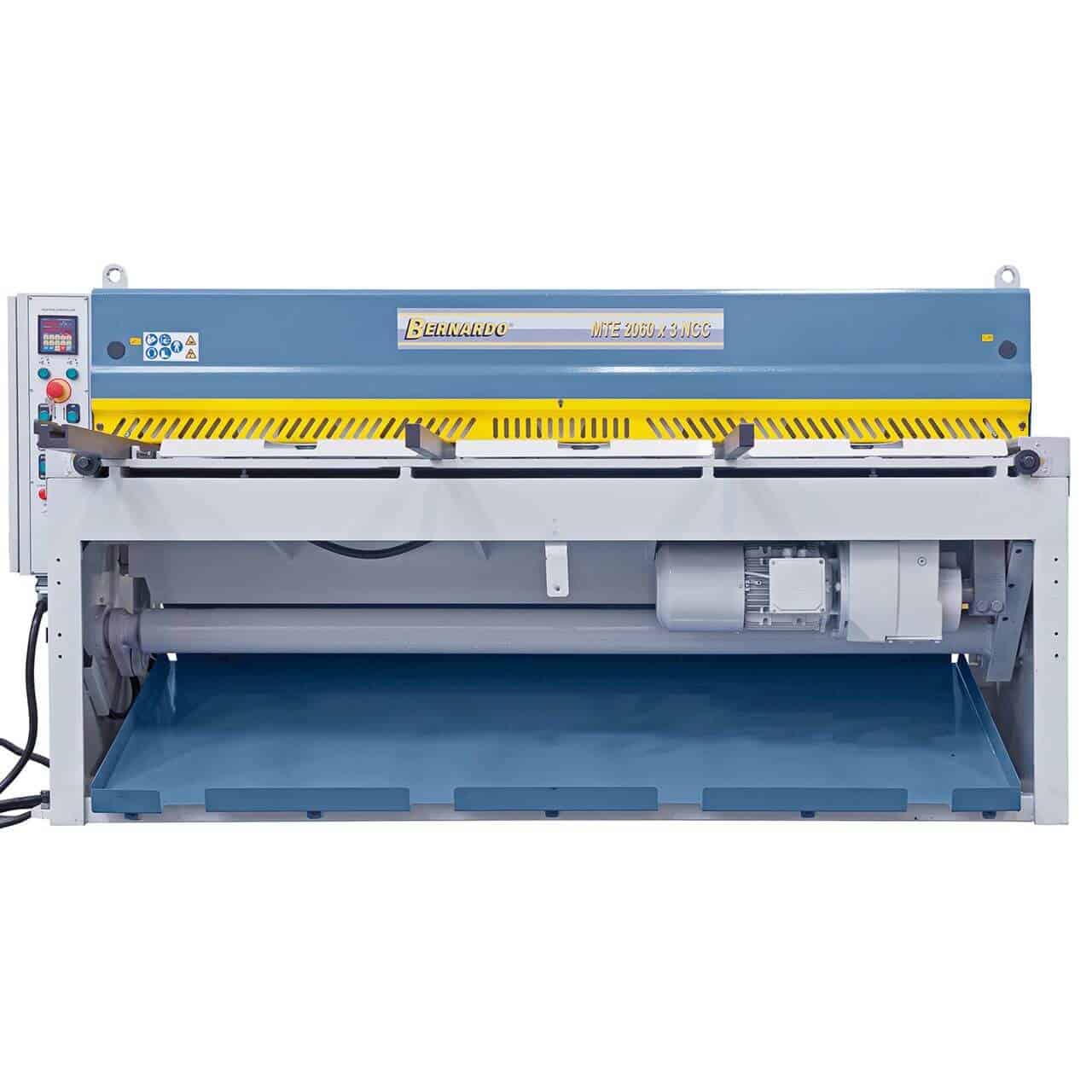

Motorized guillotine shear MTE 3060 x 3 NCC
€29.804,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Motorized guillotine shear MTE 3060 x 3 NCC is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- The sheet metal is ejected from the front (up to a maximum width of 400 mm) or from the rear of the machine.
- Motorized sheet metal shears for cutting various materials, such as sheet steel, brass, aluminum, copper, ...

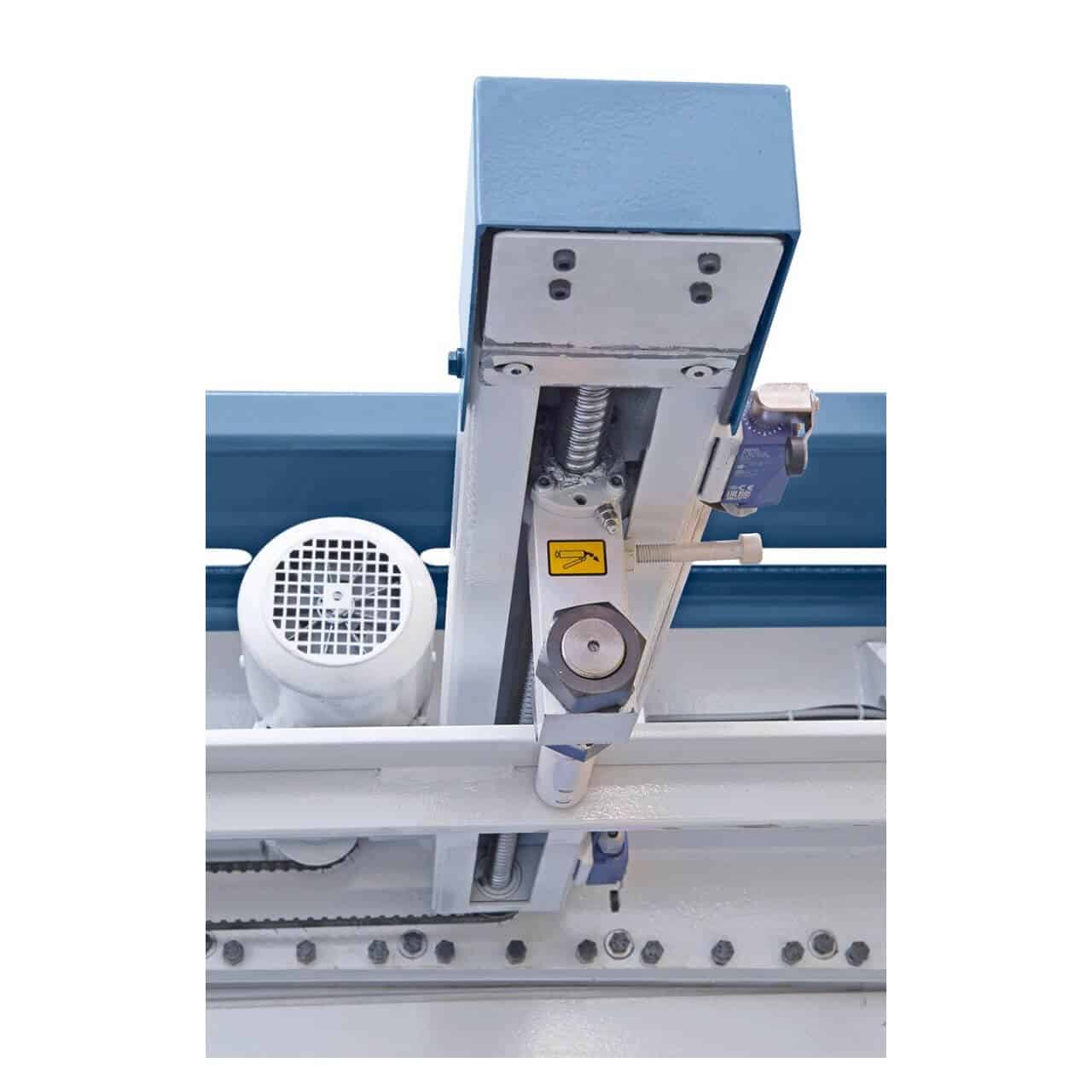

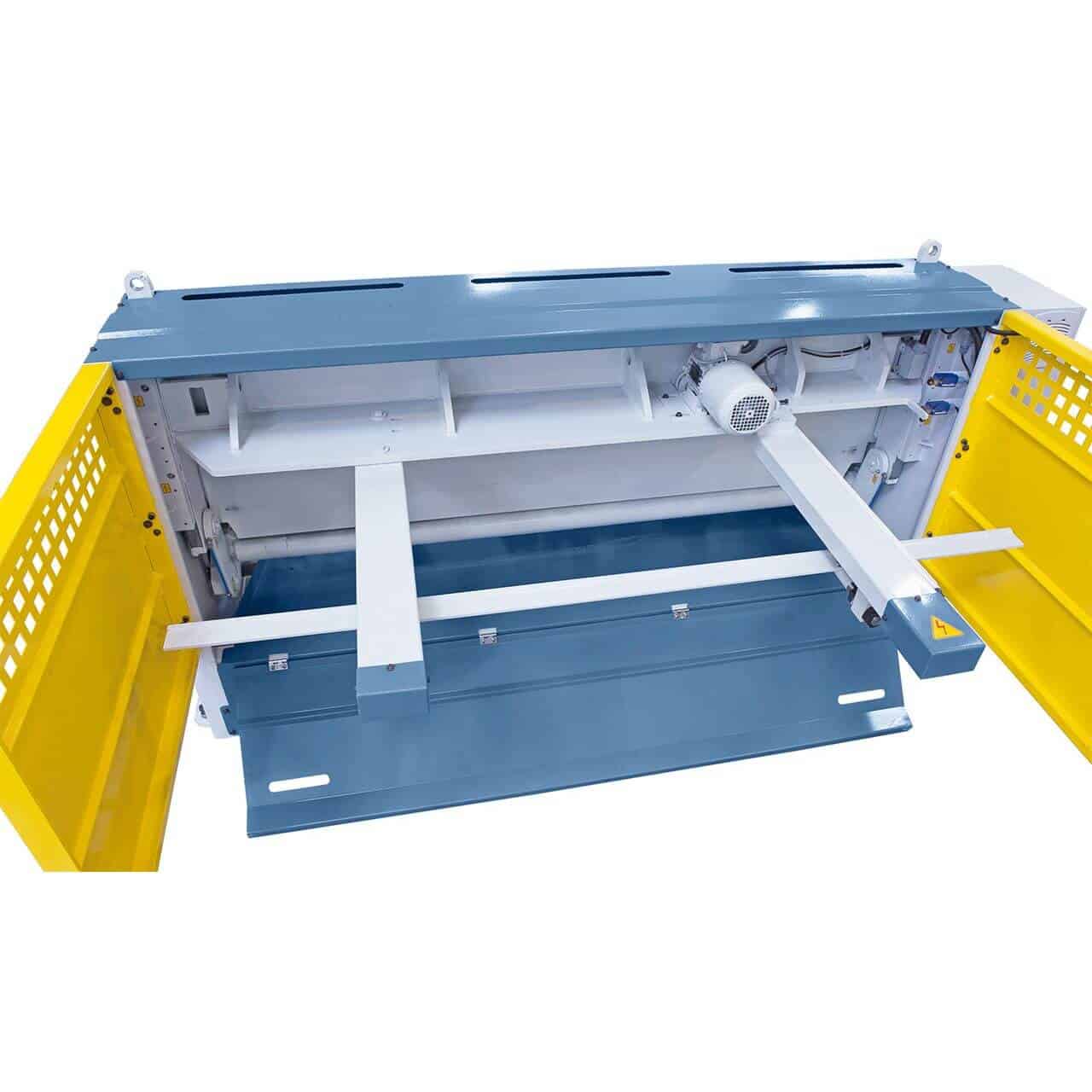

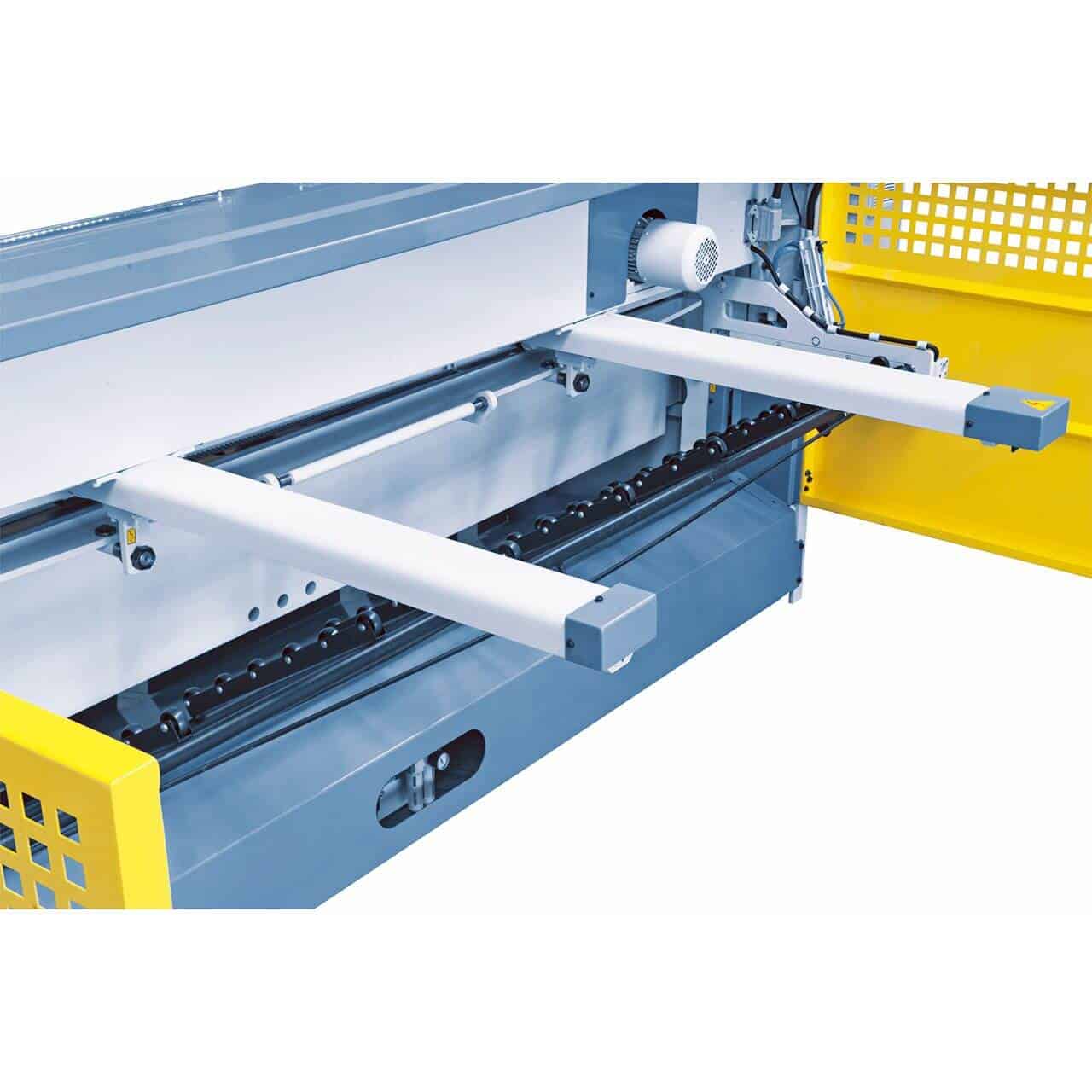

- Motorized back gauge, precise movement via ball screws
- Table top with integrated rollers, ideal for large workpieces
- The double-edged upper and lower blades made of quality steel ensure a clean, burr-free cut.
- Support table with right-angle stop with graduated scale, tilt cam and T-slot for the optional angle cutting device

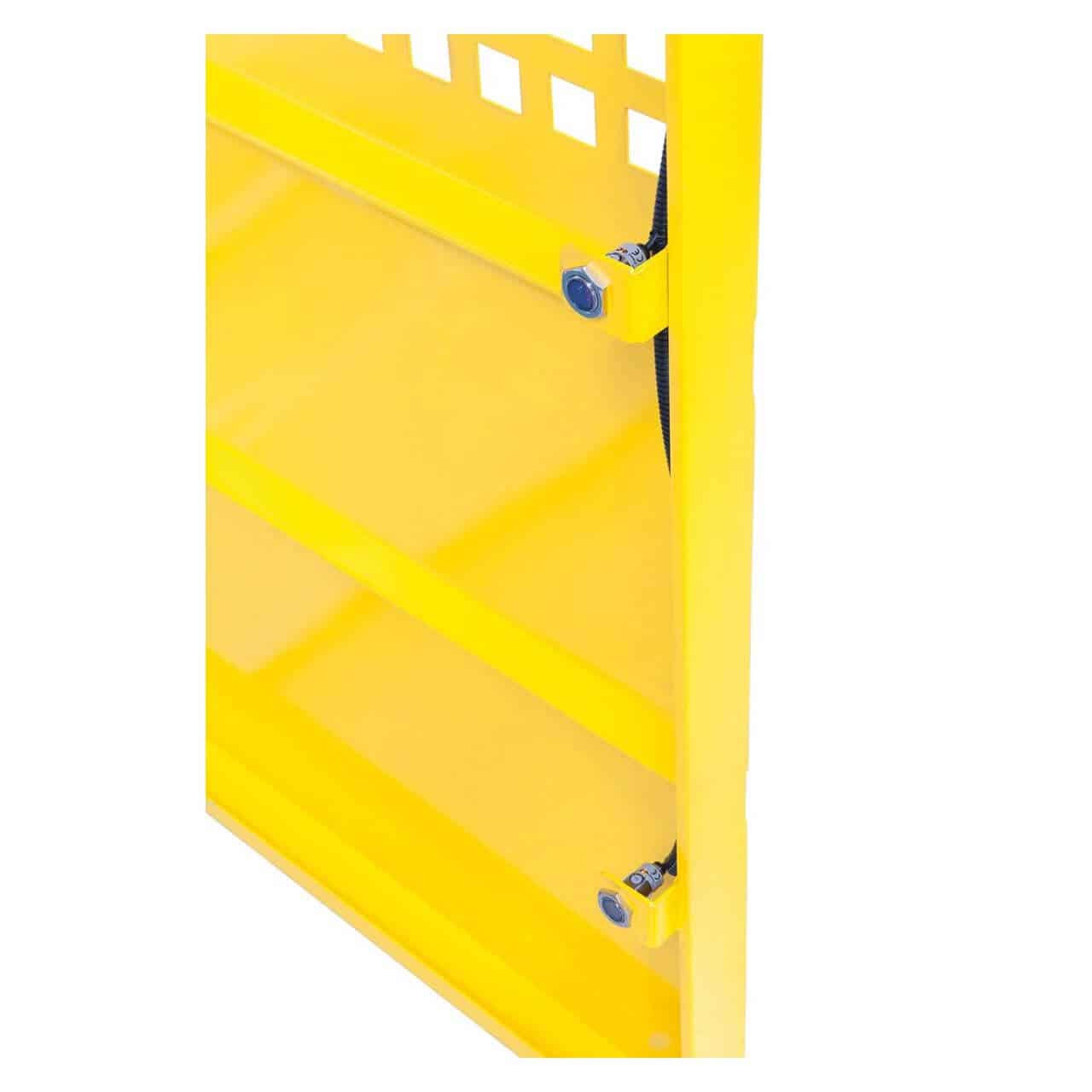

- High operator safety thanks to the protective plate and photocells on the rear of the machine

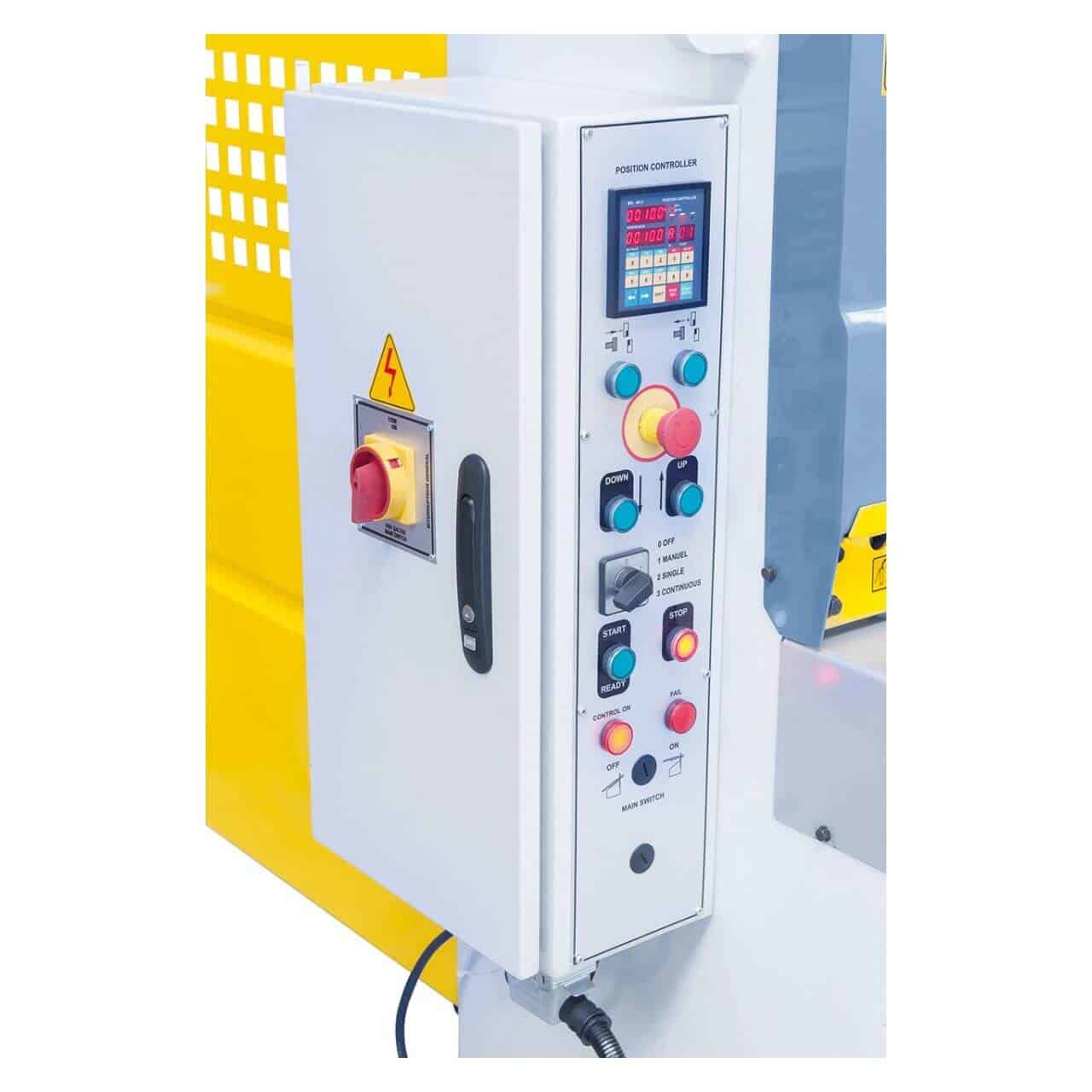

- Clearly structured control panel with integrated control (cutting counter, cutting width,...)
- Cutting counter
- Cutting line lighting
- Motorized NC back gauge
- Front sheet metal support
- Table top with integrated rollers

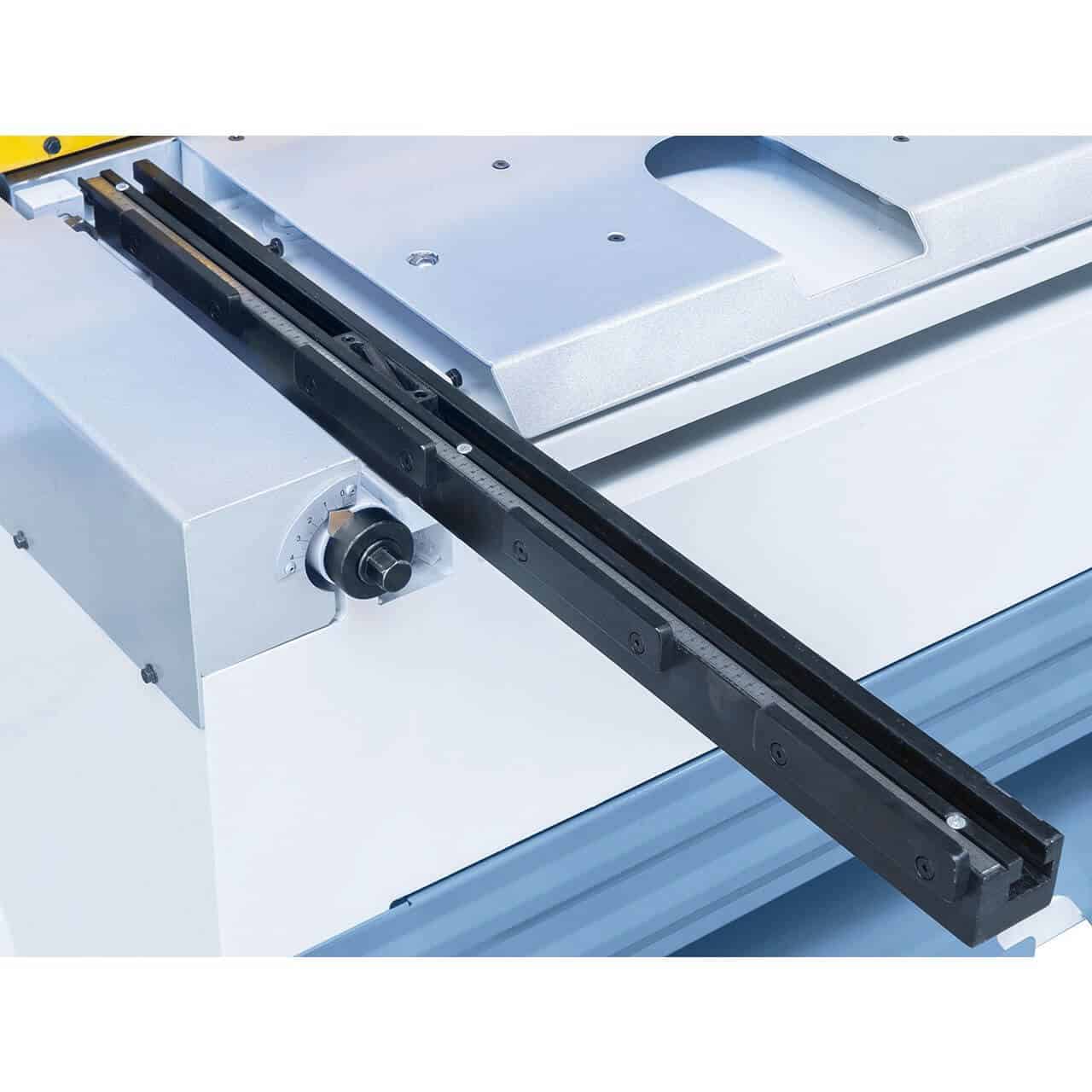

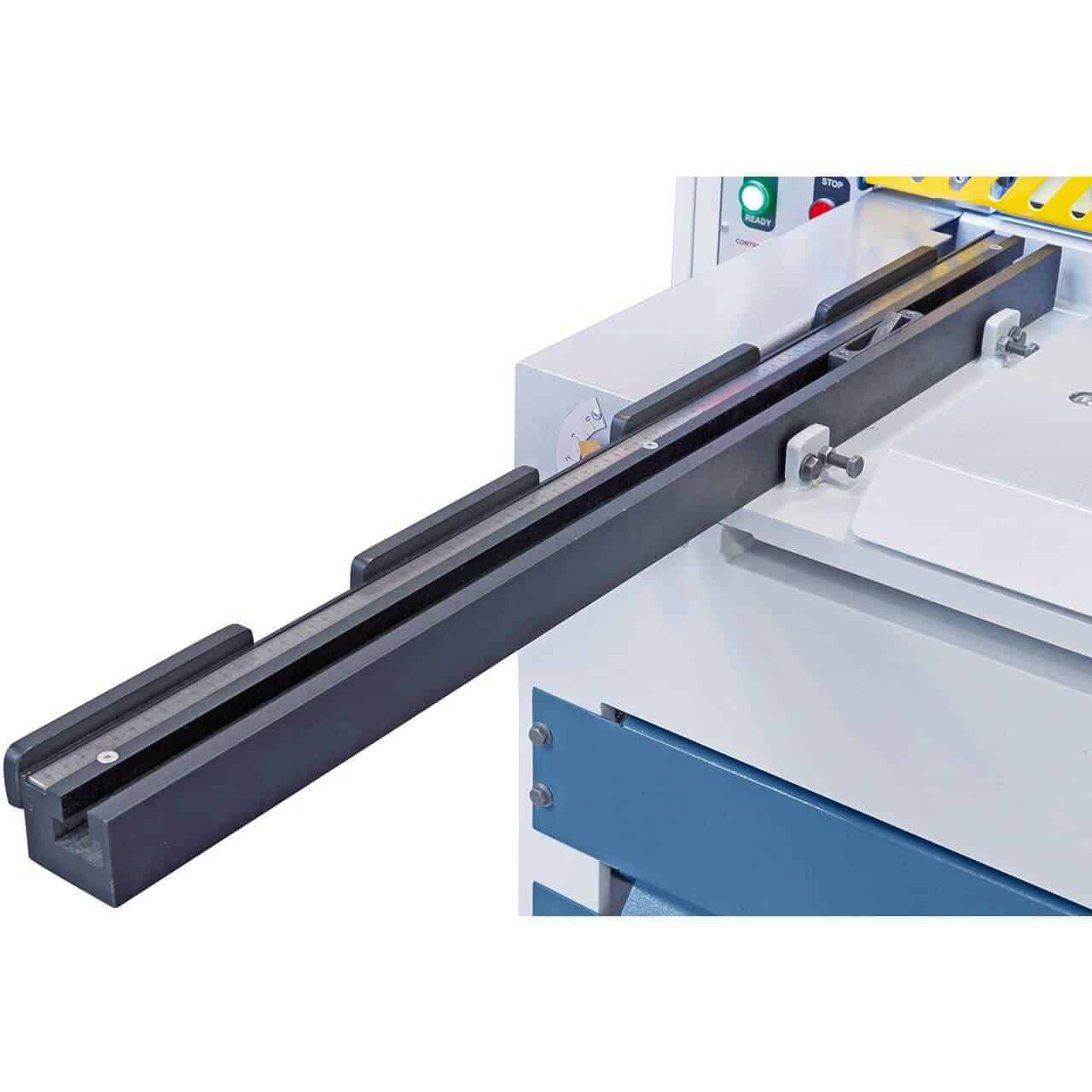

- Side stop ruler
- Protective plate with photocells
- NC Control BRL 401.2

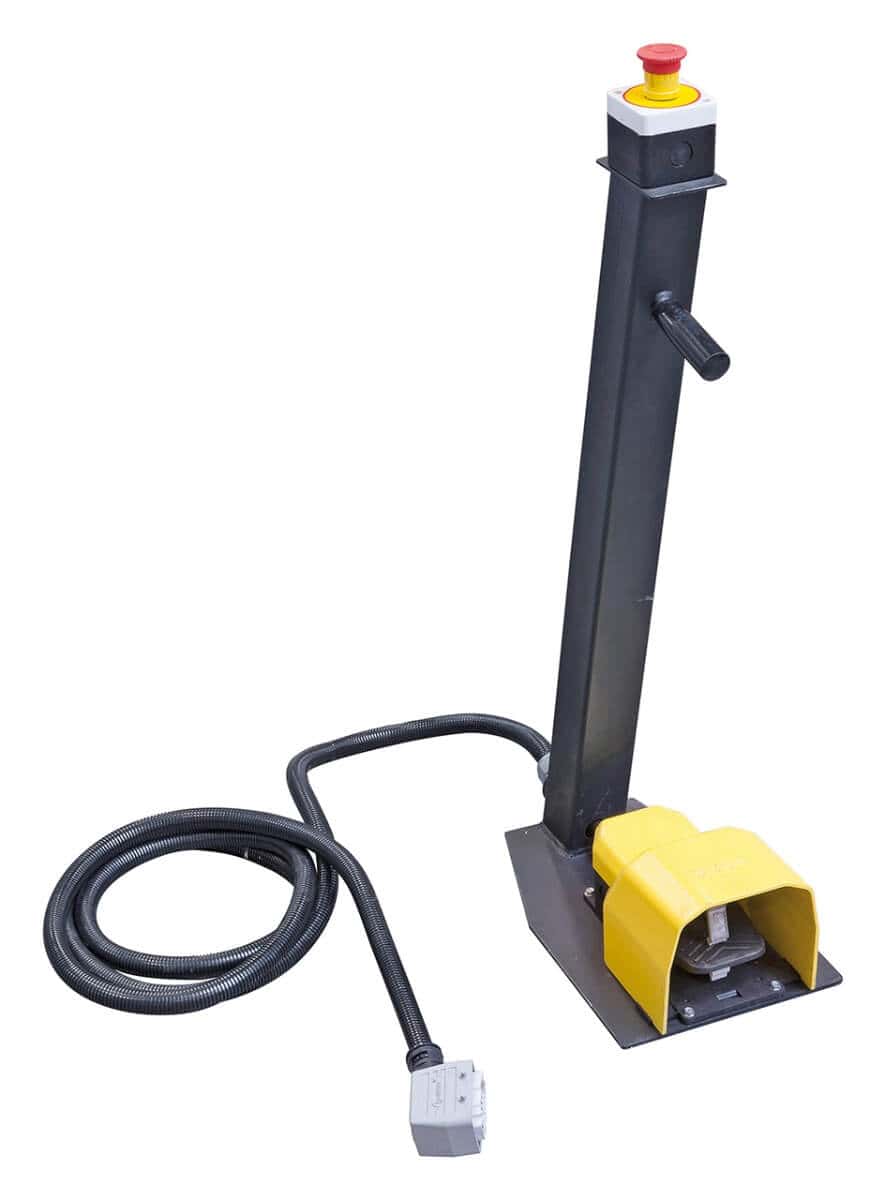

- Pedal with emergency stop
- Tool steel knives
| Technical Specifications | Value |
|---|---|
| Cutting Length | 3060 mm |
| Max Sheet Thickness | 3.0 mm |
| Cutting Angle | 1st 30' |
| Shots per Minute | 31 |
| Working Height | 810 mm |
| Rear Register | 0 - 750 mm |
| Table Width | 390 mm |
| Engine Power | 4.0 kW |
| Length | 3650 mm |
| Depth | 2100 mm |
| Height | 1260 mm |
| Approximate Weight | approx. 2200 kg |
| Material Resistance | 400 N/mm² |
Technical Specifications
Può tagliare lamiere fino a 3060 mm di lunghezza e 3 mm di spessore (acciaio 400 N/mm²), con tagli netti e senza bave.
È dotata di fotocellule posteriori, pedale con arresto di emergenza e pannello NC per garantire massima sicurezza all’operatore.
La battuta posteriore è motorizzata e movimentata tramite viti a ricircolo di sfere, controllata dal pannello NC BRL 401.2.
Monta lame superiori e inferiori a doppio tagliente in acciaio temprato, per tagli puliti e lunga durata.
La macchina pesa circa 2200 kg e viene consegnata con imballo industriale robusto, pronta per l’installazione in officina.
È adatta al taglio di acciaio, alluminio, ottone, rame e altre lamiere fino a 3 mm di spessore.
