Bernardo | SKU:
06-1673B
Pre-order

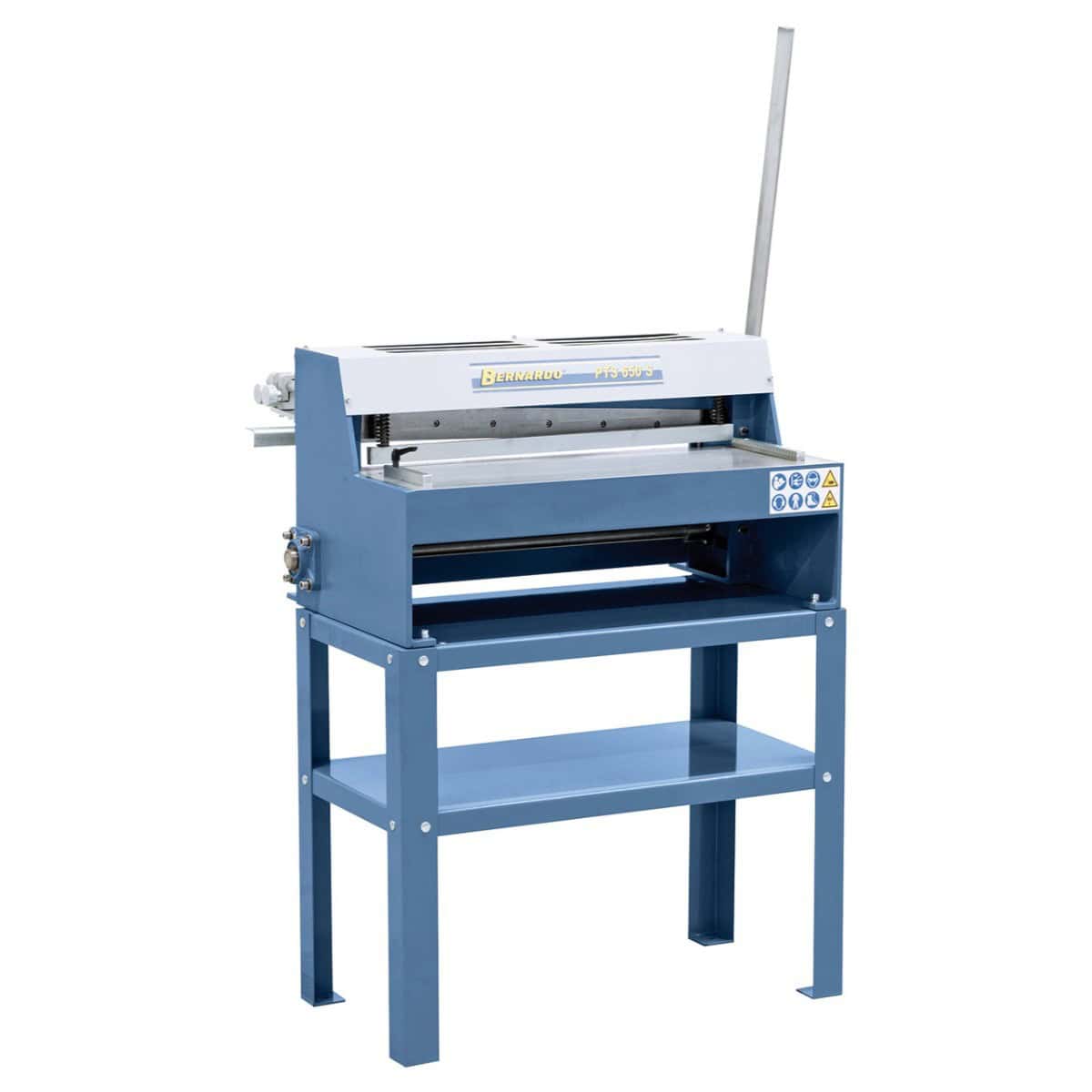

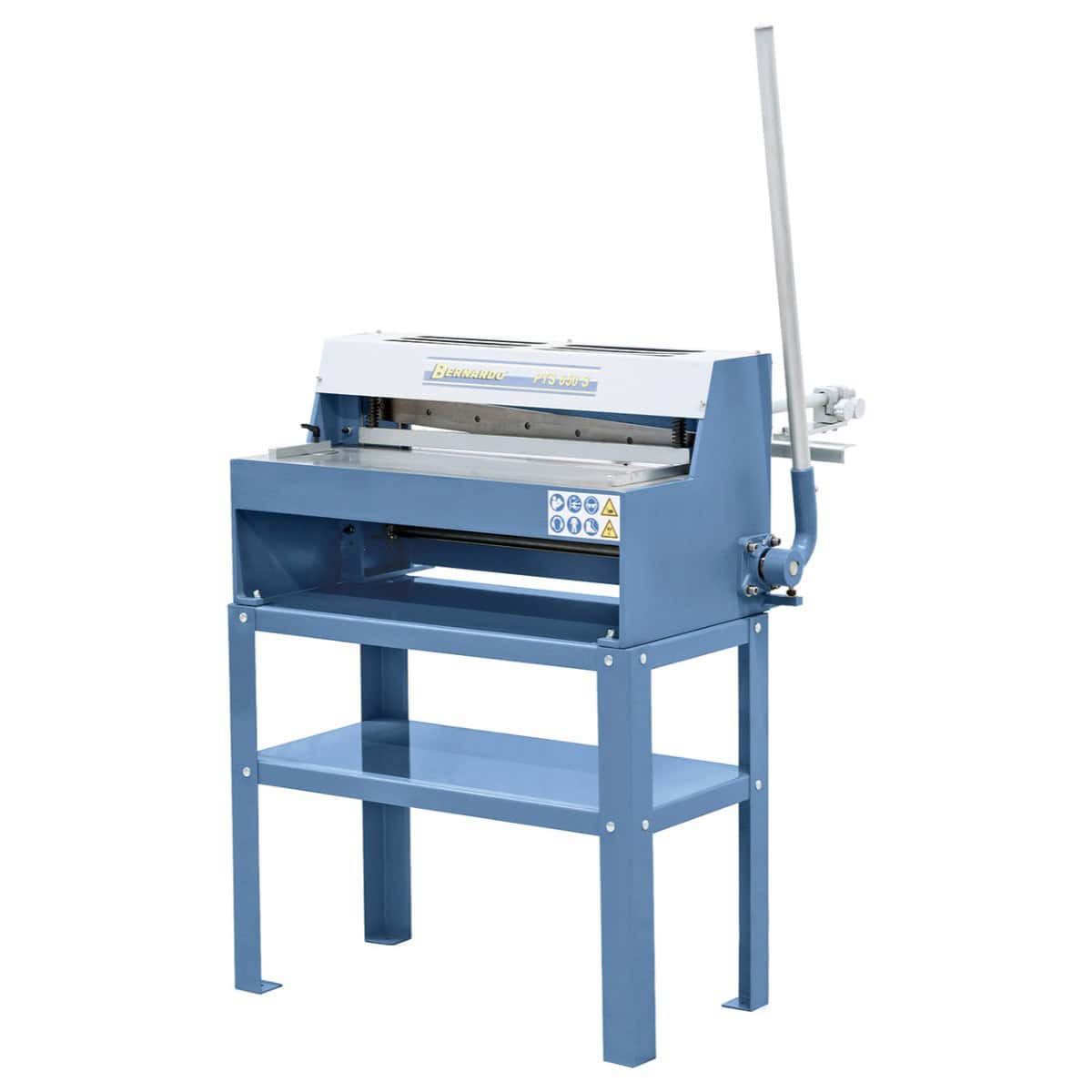

PTS 650 S manual lever shears
€847,90
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
PTS 650 S manual lever shears is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Manual guillotine shears for cutting various materials, such as sheet steel, brass, aluminum, and copper.

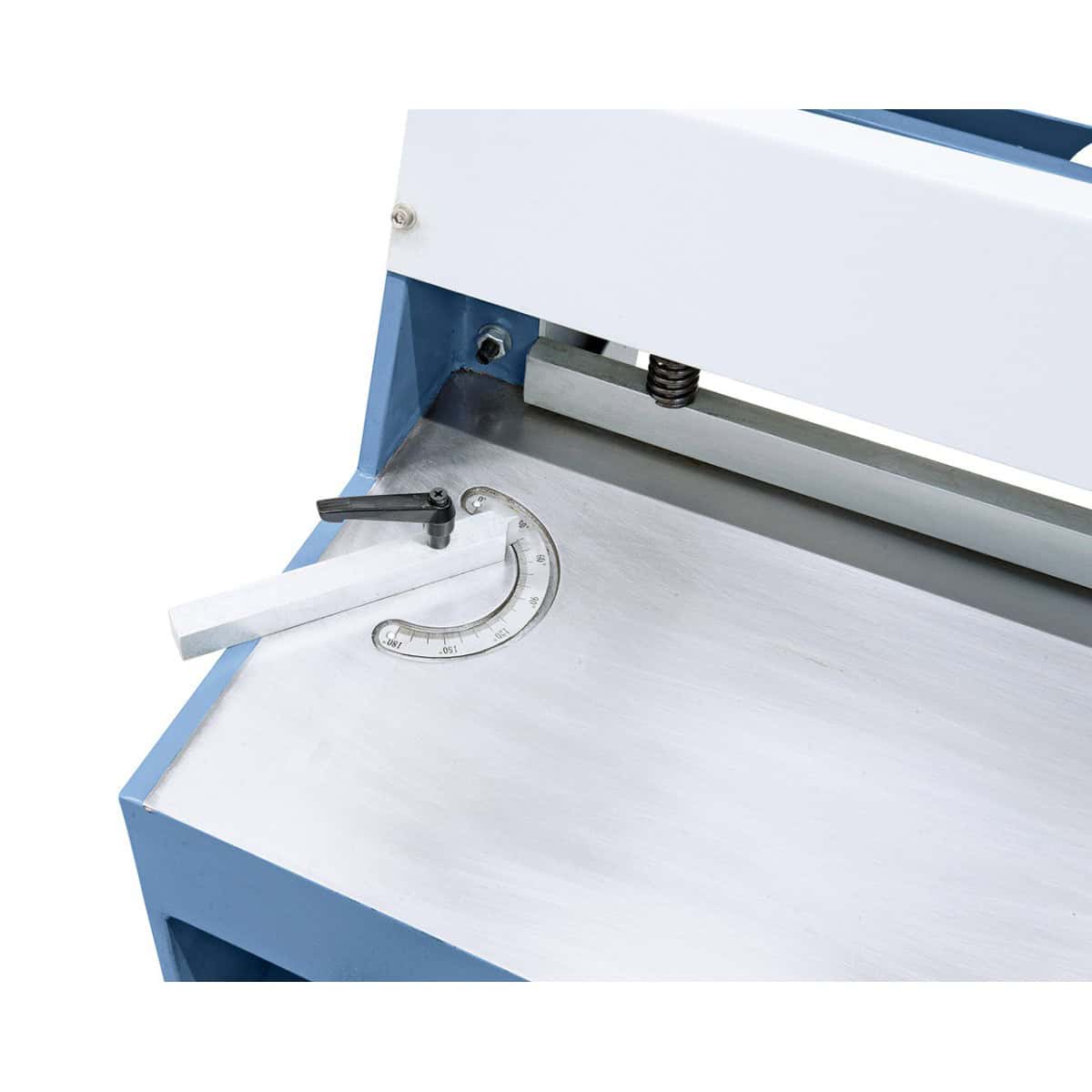

- Equipped with an angle stop as standard for making oblique cuts.
- Rear stop with micrometric adjustment included.
- Double-edged upper and lower blades made of quality steel ensure a clean, burr-free cut.
- Modern design with stable and durable structure.

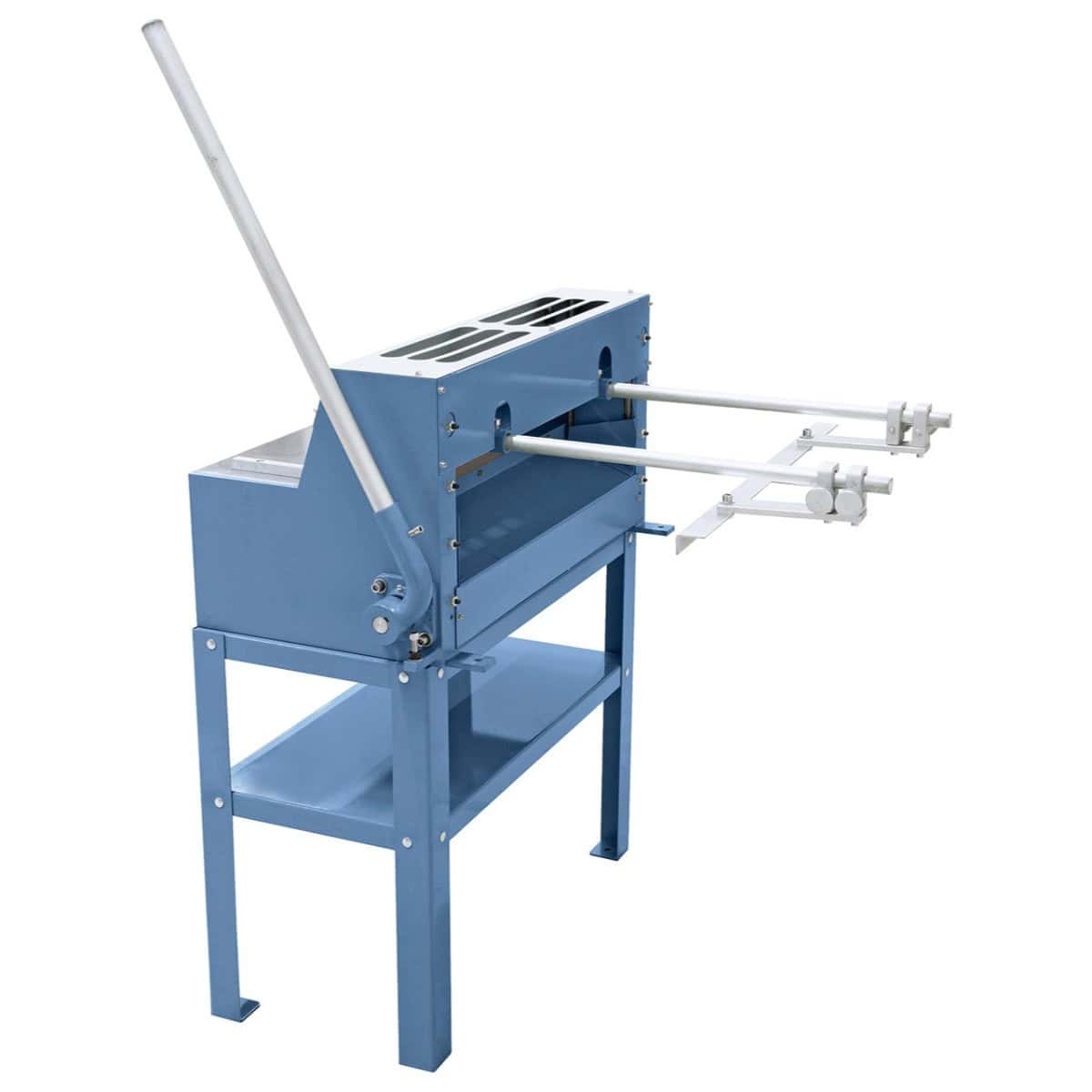

- The cutting is performed via lateral levers.
- Automatic clamping device to firmly hold the sheet metal during cutting.
Standard accessories
- Automatic presser
- Rear stop
- Oblique stop
- Tool steel blades
Technical specifications table
| Characteristic | Value |
|---|---|
| Cutting length | 650 mm |
| Maximum sheet metal thickness (400 N/mm²) | 1.25 mm |
| Cutting angle | 3rd |
| Rear stop | 0 - 500 mm |
| Side stop | 240 mm |
| Machine dimensions (L x W x H)* | 900 x 990 x 940 mm |
| Approximate weight | 100 kg |
Excluding base dimensions.
Technical Specifications
La cesoia può tagliare lamiere fino a 650 mm di lunghezza e 1,25 mm di spessore (400 N/mm²).
È adatta per acciaio, alluminio, rame e ottone, rispettando i limiti di spessore indicati.
Sì, grazie all’arresto obliquo di serie è possibile eseguire tagli angolari fino a 3°.
L’arresto posteriore è regolabile micrometricamente fino a 500 mm, per garantire tagli precisi e ripetibili.
La macchina pesa circa 100 kg e viene spedita su pallet con imballo protettivo. È consigliato lo scarico con muletto o transpallet.
La confezione include la cesoia PTS 650 S, il pressore automatico, l’arresto posteriore, l’arresto obliquo e le lame in acciaio.
