Bernardo  |  SKU: 01-1331XL

Radial drill RD 1600 x 50

€25.922,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

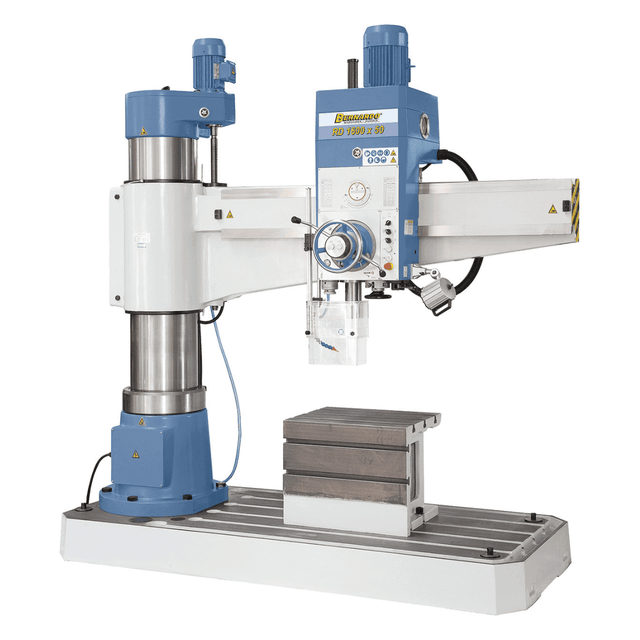

Radial Drill RD 1600 x 50

The RD 1600 x 50 Radial Drill is a high-precision machine designed for cost-effective machining of large single parts and small batches. Thanks to its high performance, ease of use, and wide range of applications, this model is ideal for mechanical operations, repair shops, and machine shops.

Main Features:

  • Large Support Plate: The large support plate is perfect for clamping large workpieces, ensuring stability and precision during machining.
  • Smooth and Thick Column: The column is designed to offer smooth arm movement, improving work quality and reducing vibrations.
  • Independent Hydraulic Clamping: The arm and drill holder are equipped with independent hydraulic clamping, ensuring stability during drilling, boring, tapping and threading operations.
  • Easy Arm Height Adjustment: The lift motor allows you to easily adjust the height of the extension arm while maintaining the spindle position, ideal for repetitive operations.
  • Hardened and Ground Gears: The gears, immersed in an oil bath, guarantee silent and long-lasting operation, prolonging the life of the machine.
  • Smooth Sliding of the Bit Holder: The bit holder slides smoothly on the arm thanks to the smooth surface, improving the efficiency and precision of operations.

Accessories Included:

  • Cubic table
  • Reduction sockets MK 5/4, MK 4/3, MK 3/2
  • LED car light
  • Initial fill with Shell Tellus 46
  • Refrigeration system
  • Lifting motor
  • Hydraulic motor
  • Control device
  • Height-adjustable protective cover

Technical Specifications:

Characteristic Values
Max. drilling power 50 mm
Max. thread M42
Min./max. arm length 350 – 1590 mm
Vertical movement of the arm 590 mm
Tip stroke (horizontal) 1240 mm
Hole stroke 320 mm
Spindle attachment MK 5
Spindle speed (16) 25 – 2000 rpm
Progress area (16) 0.04 – 3.2 mm/rev
Distance between spindle and cubic table 150 – 740 mm
Distance between spindle and support plate 645 – 1240 mm
Clamping surface of the support plate 1600 x 980 mm
Cubic table (L x W x H) 620 x 490 x 495 mm
Engine power 4.0 kW
Machine dimensions (L x W x H) 2450 x 980 x 2840 mm
Weight approx. 3500 kg

The RD 1600 x 50 Radial Drill is the ideal choice for workshops requiring a robust and precise machine for machining large workpieces. With its solid design and advanced features, this radial drill guarantees high-quality results, making it indispensable for precision applications in industrial environments.
