Bernardo  |  SKU: 08-1295

Combined machine with squaring carriage CF 310 F - 2600

€7.856,80
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

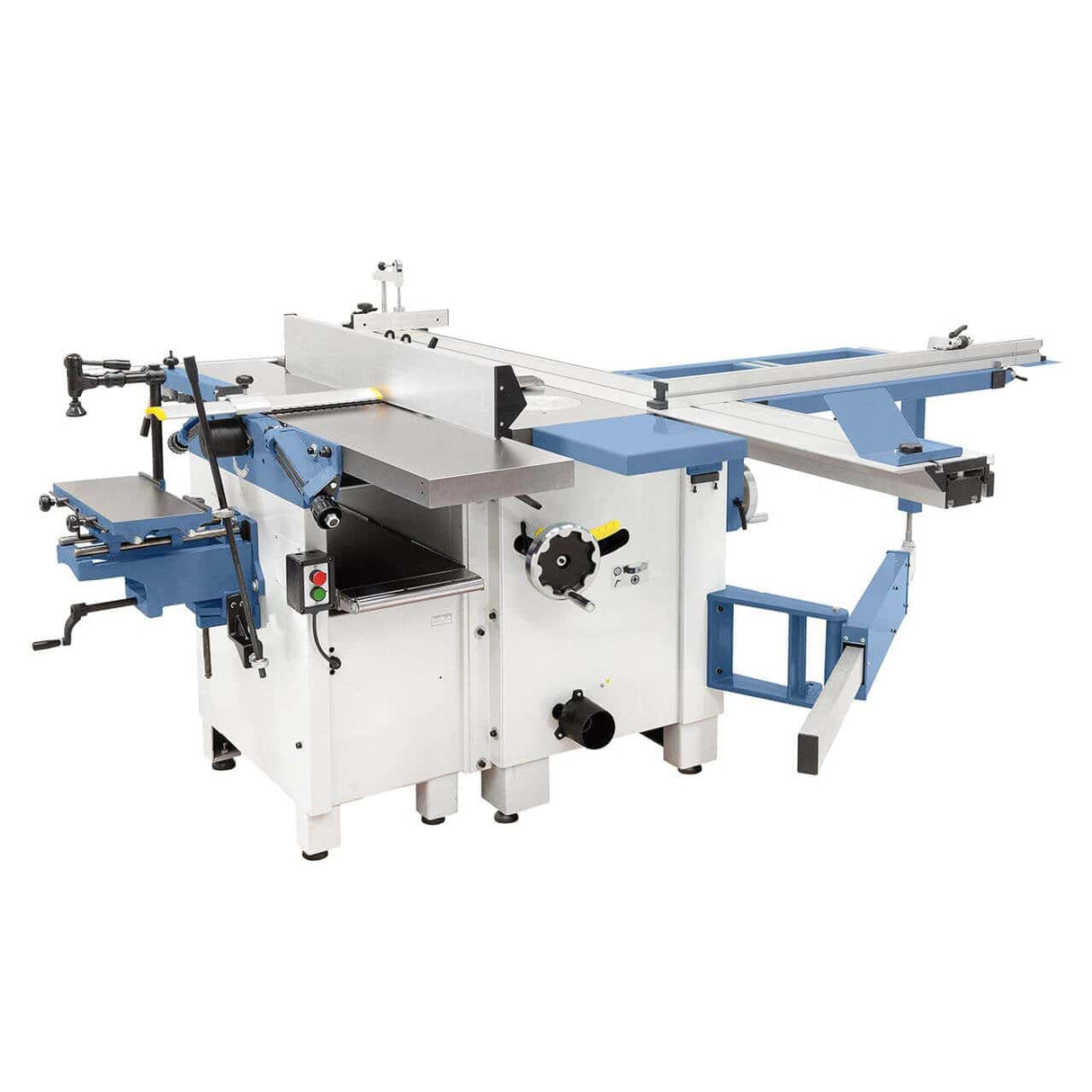

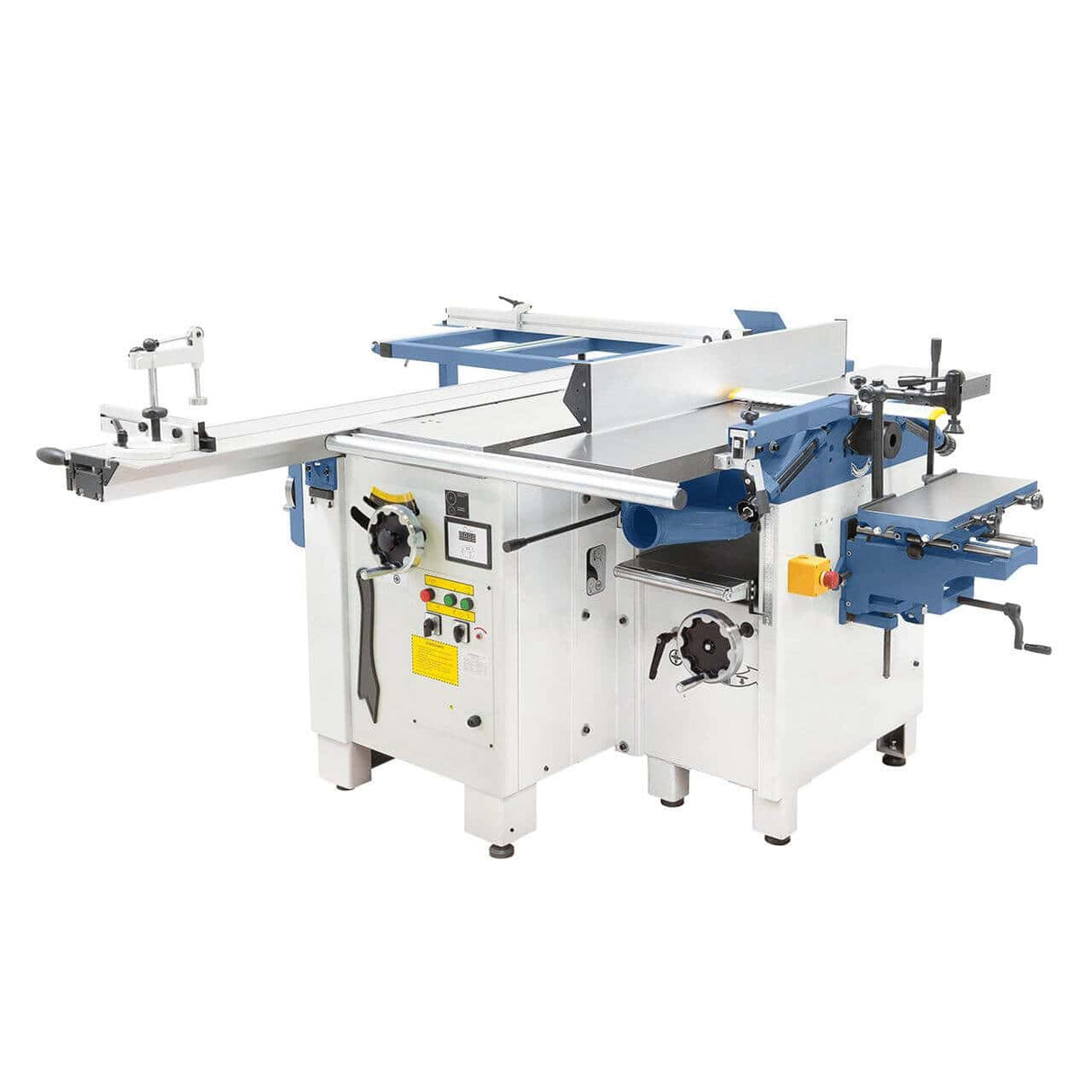

Combined machine with squaring carriage CF 310 F - 2600 / 400 V

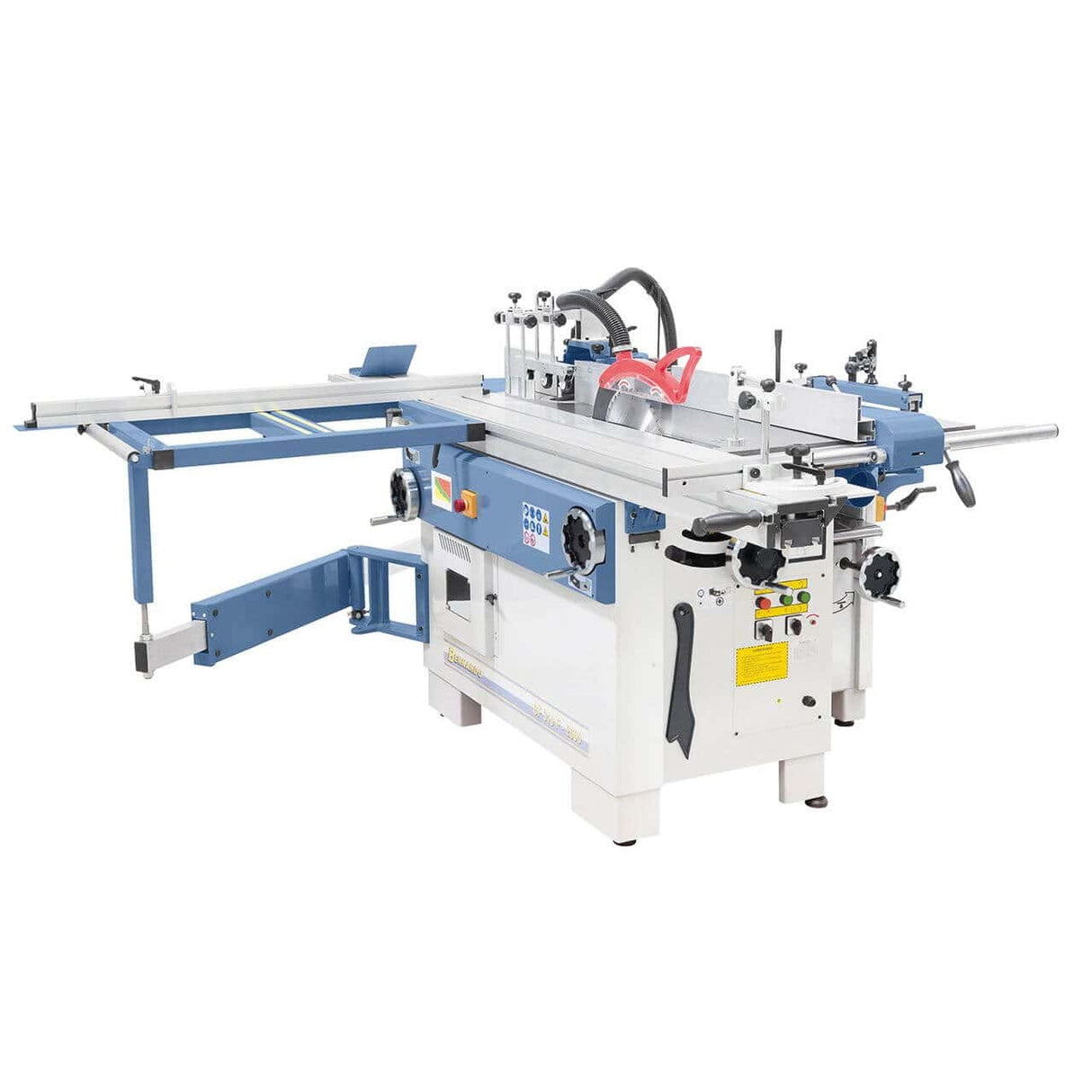

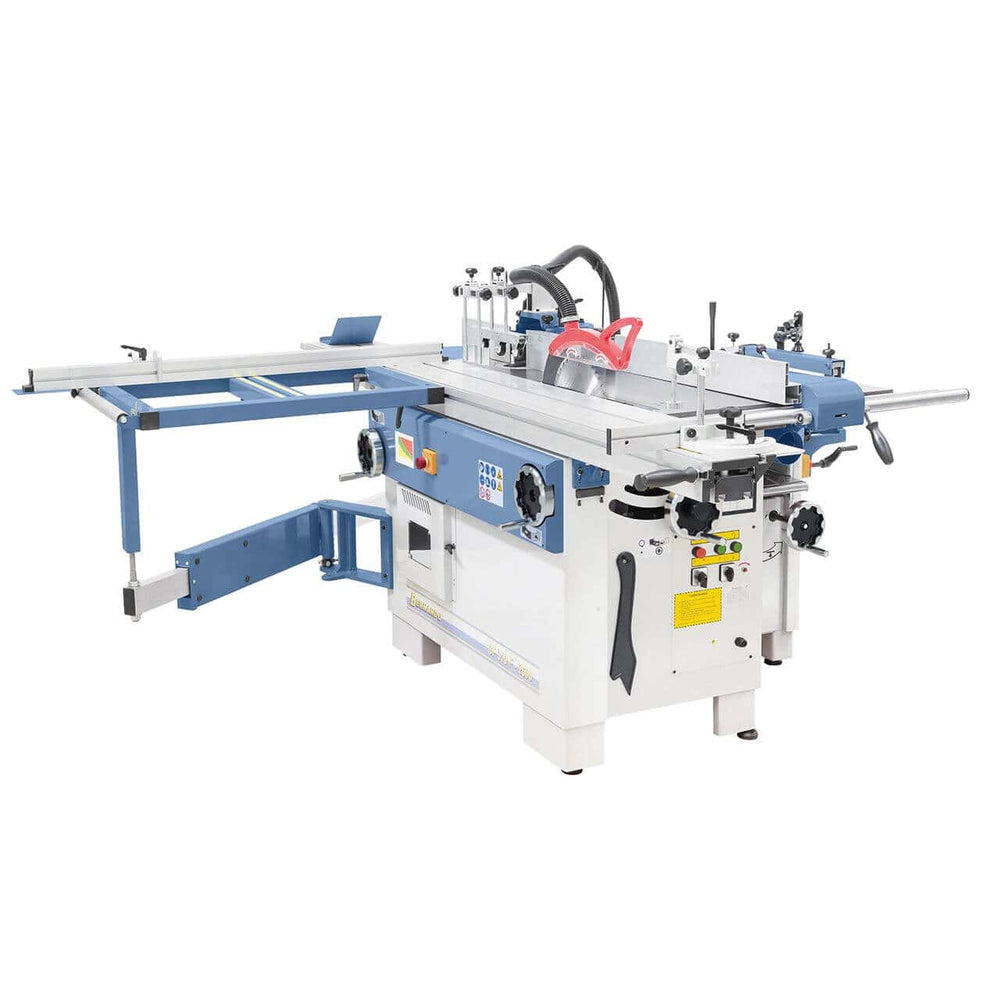

The CF 310 F - 2600 is a professional-grade combination machine that combines versatility and precision in a single compact structure. Featuring a 4-knife planer, mortiser, circular saw with scoring blade, tilting router, and 2600 mm sliding table, this work center is designed to satisfy even the most demanding woodworkers.

Main features
• Planer with 4-knife HSS shaft on maintenance-free bearings

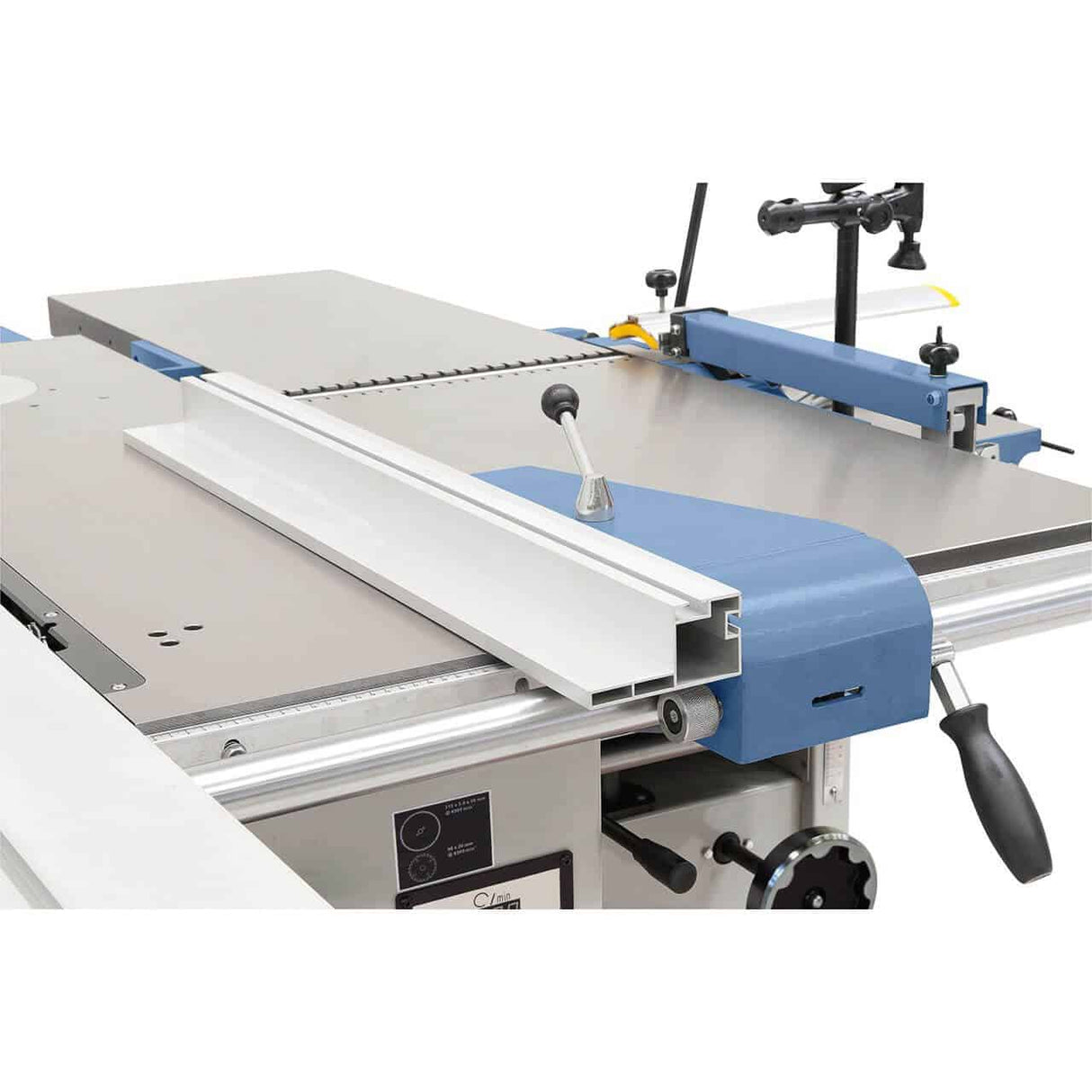

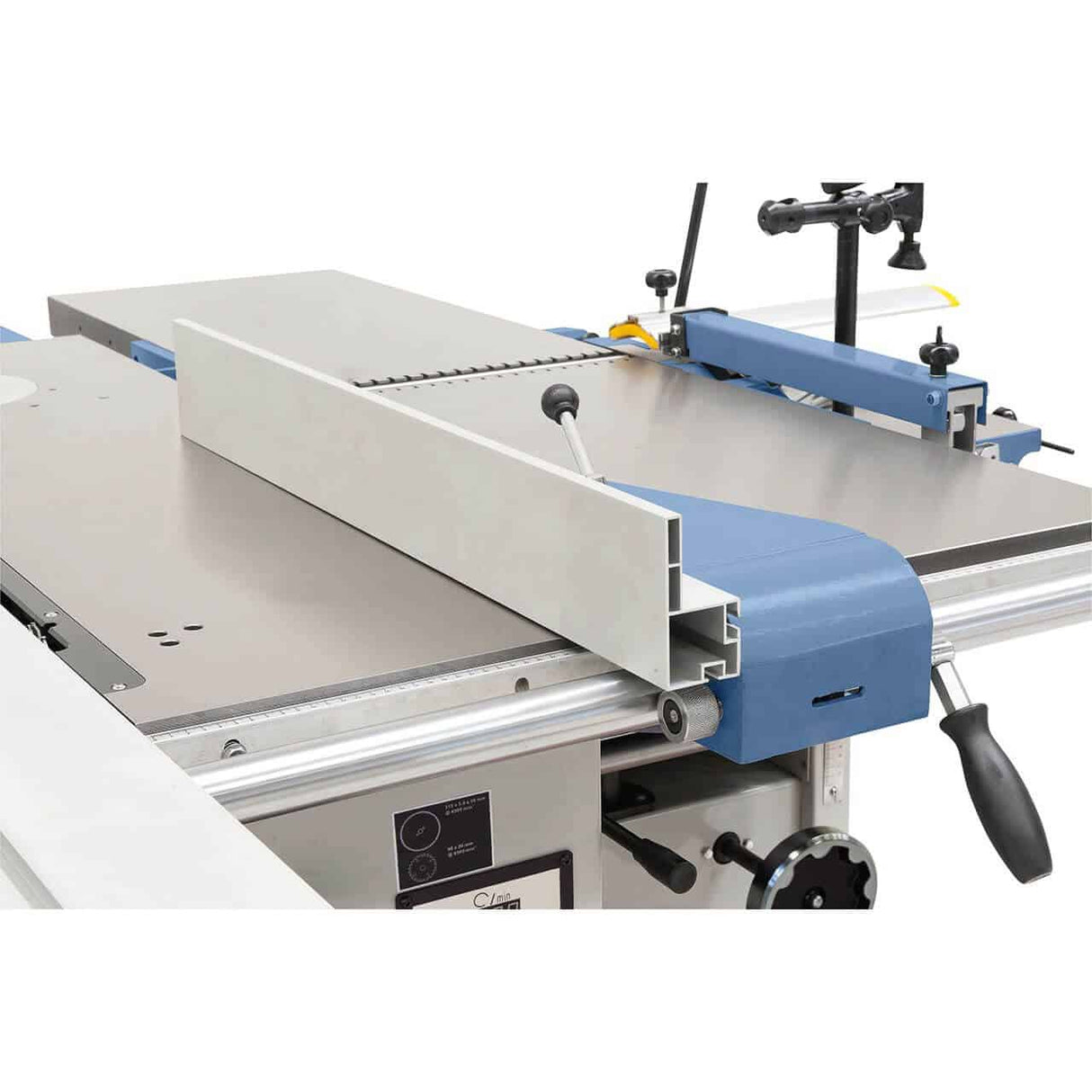

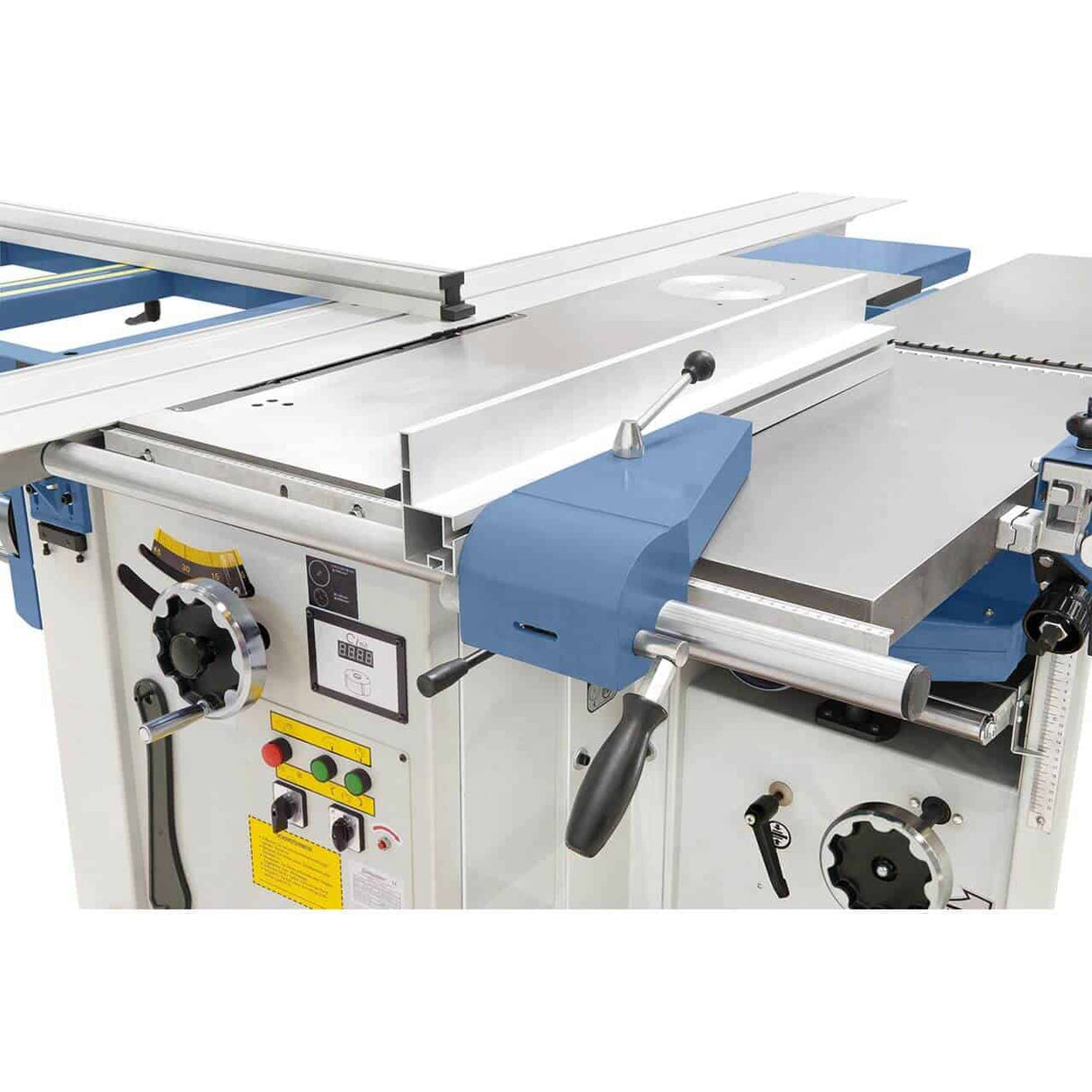

• 2600 mm sliding table in anodized aluminum with tempered prismatic guide

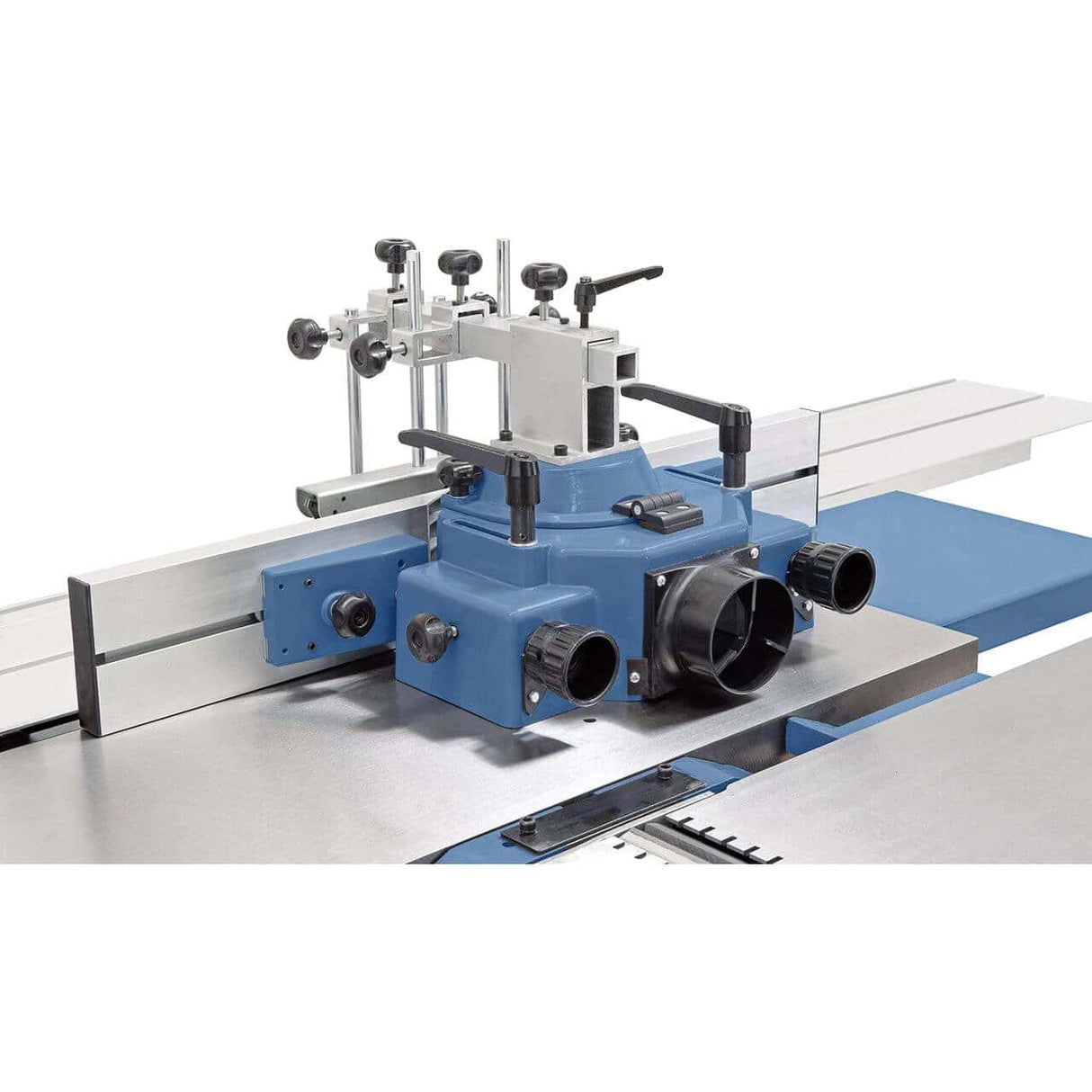

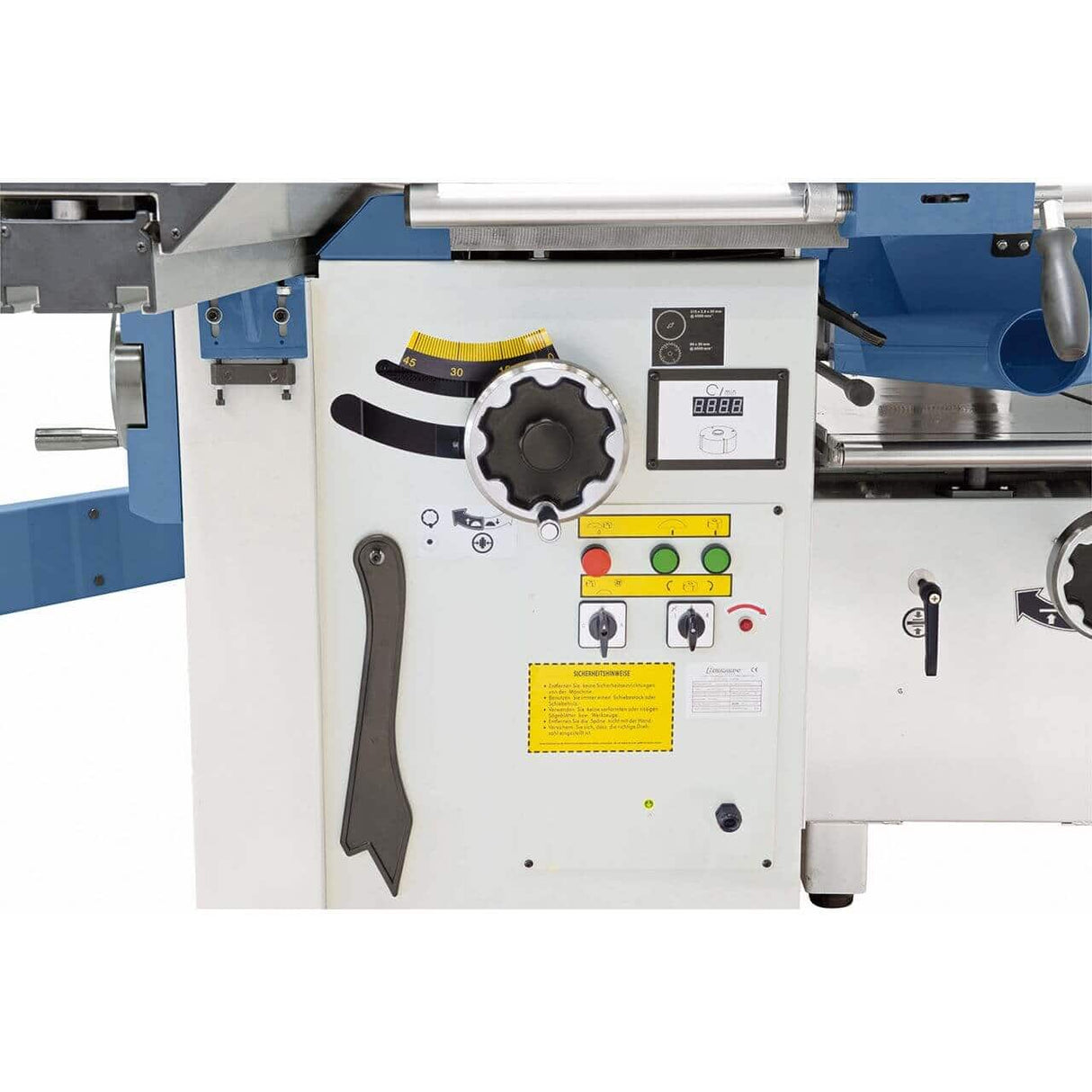

• Milling machine tiltable from 0° to -45° with digital speed display

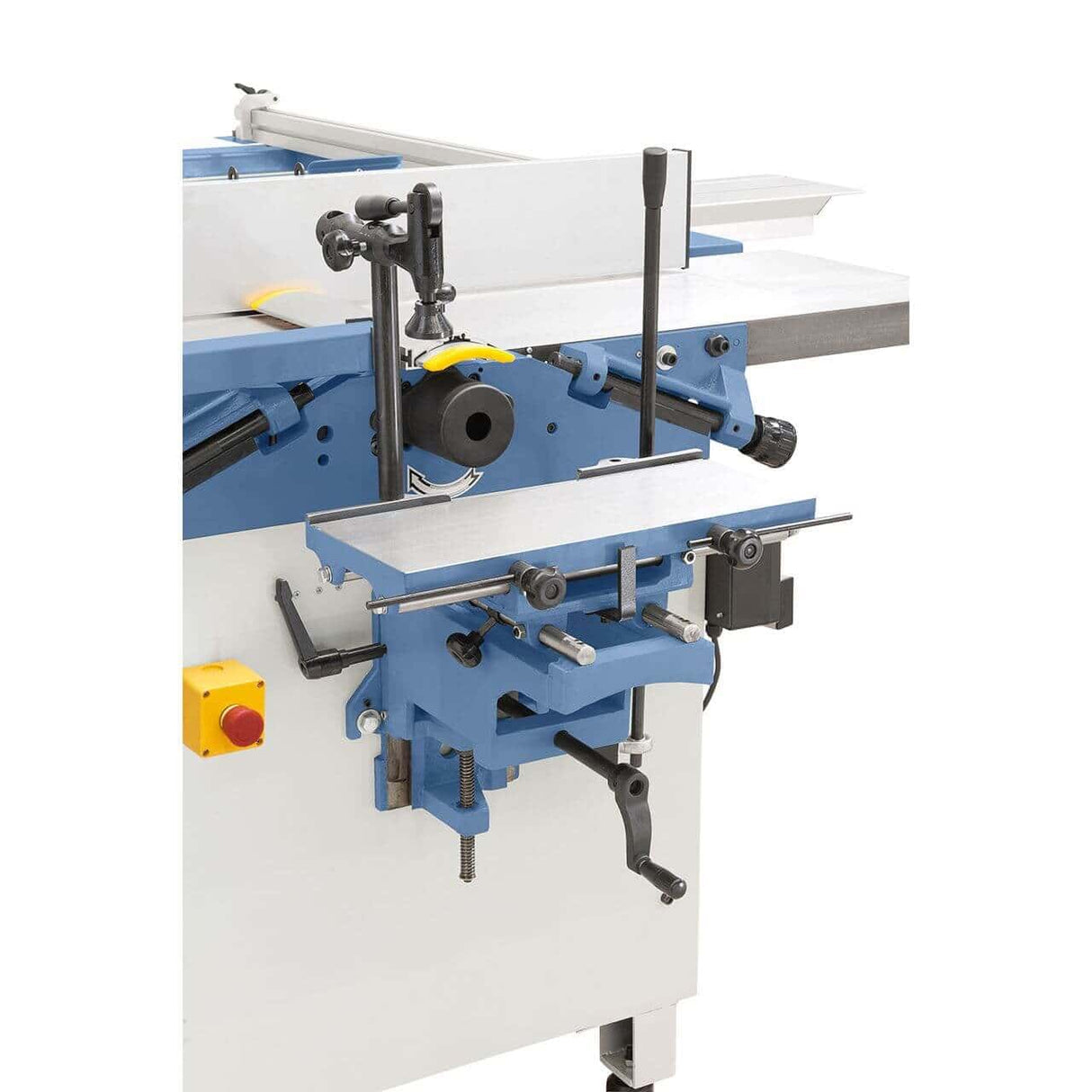

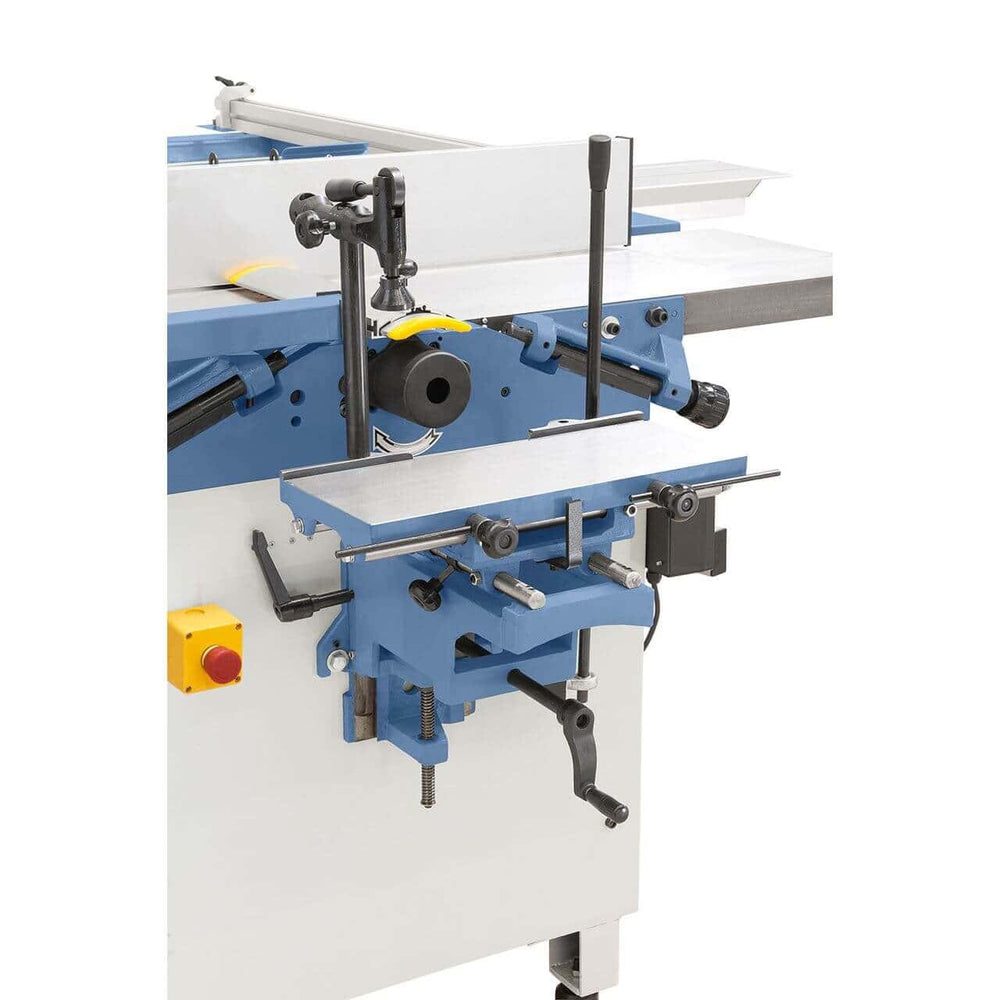

• Integrated mortiser with cast iron table and deep stroke up to 125 mm

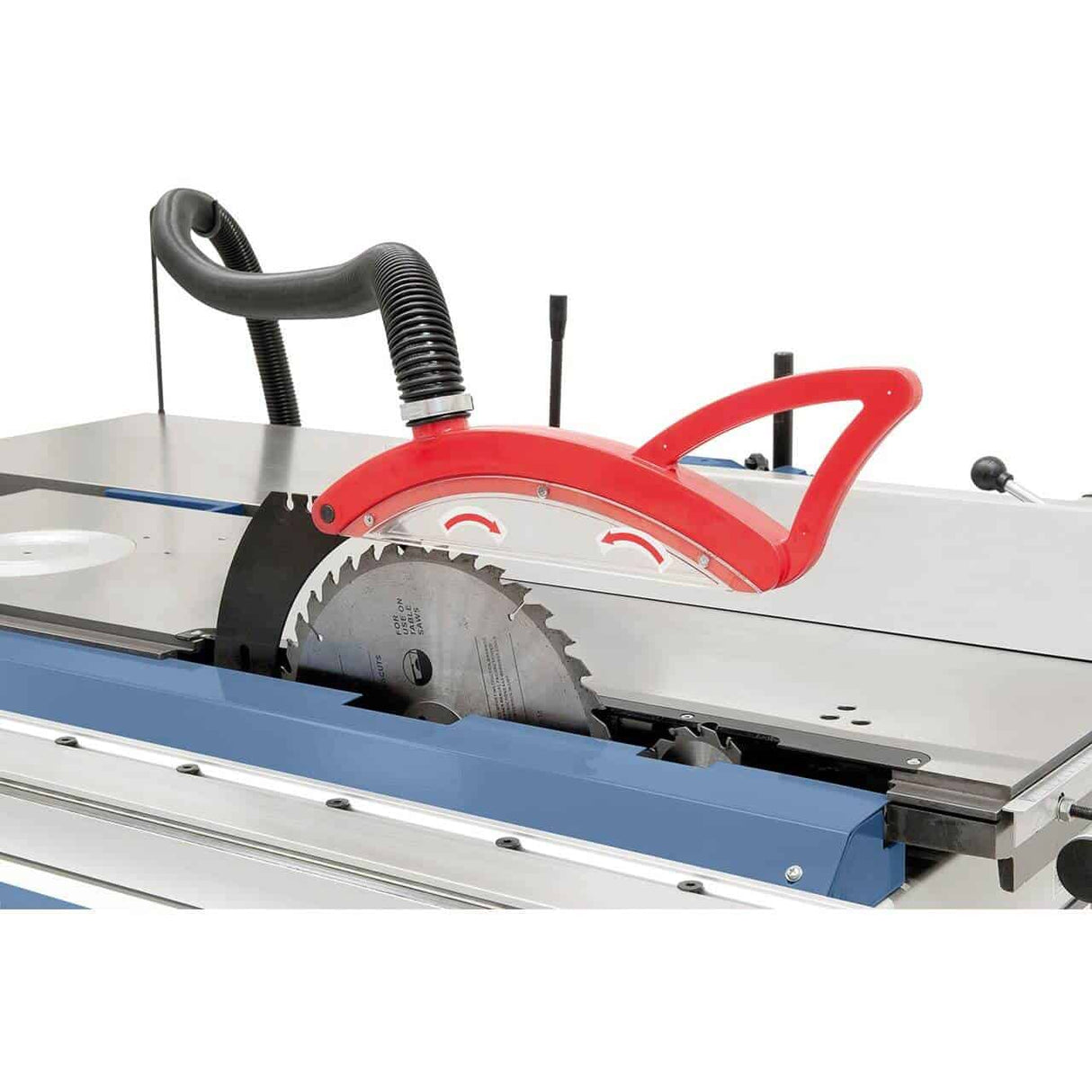

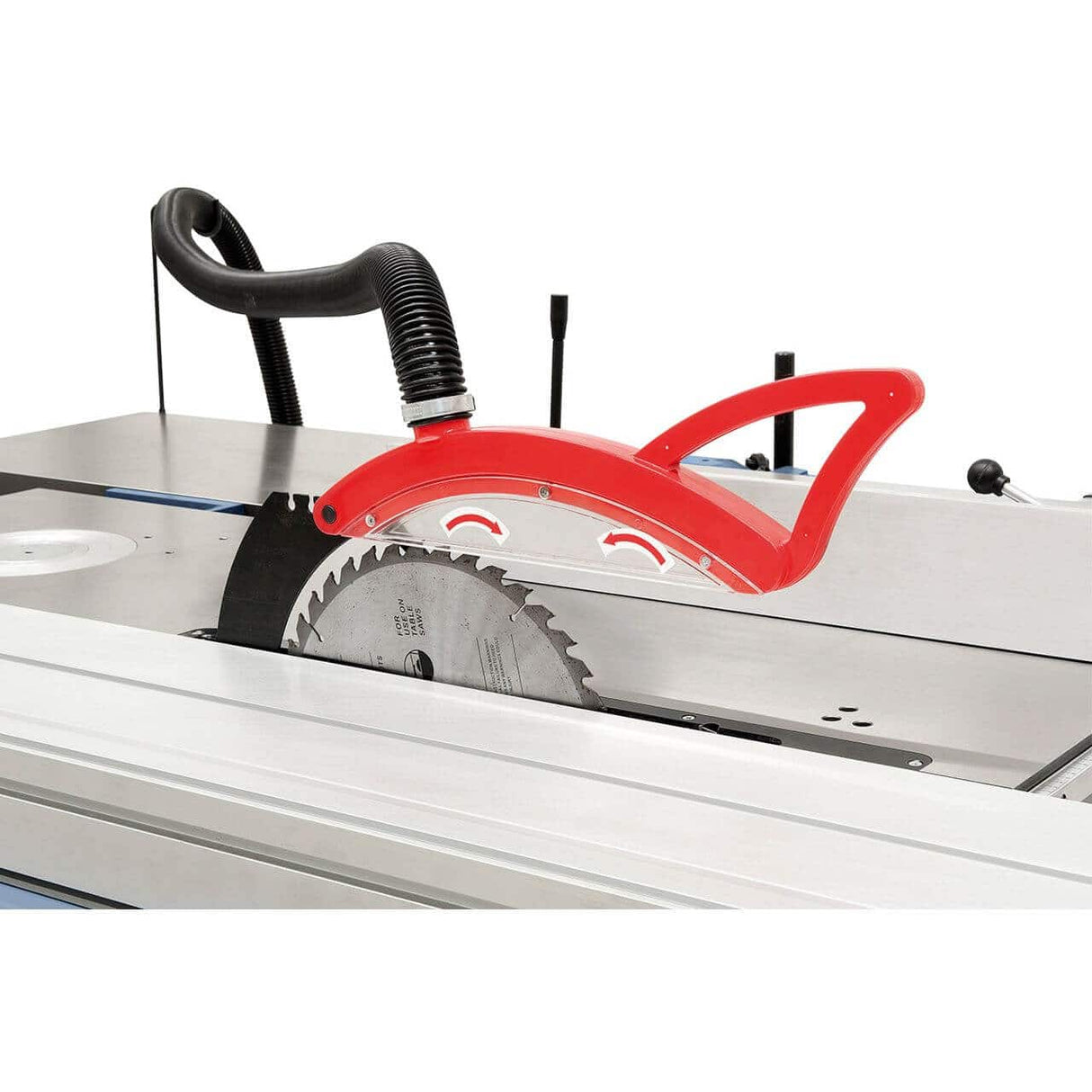

• Saw with 315 mm blade, scoring blade included and cutting capacity up to 100 mm
• 1600 mm planer table and completely cast iron structure to absorb vibrations

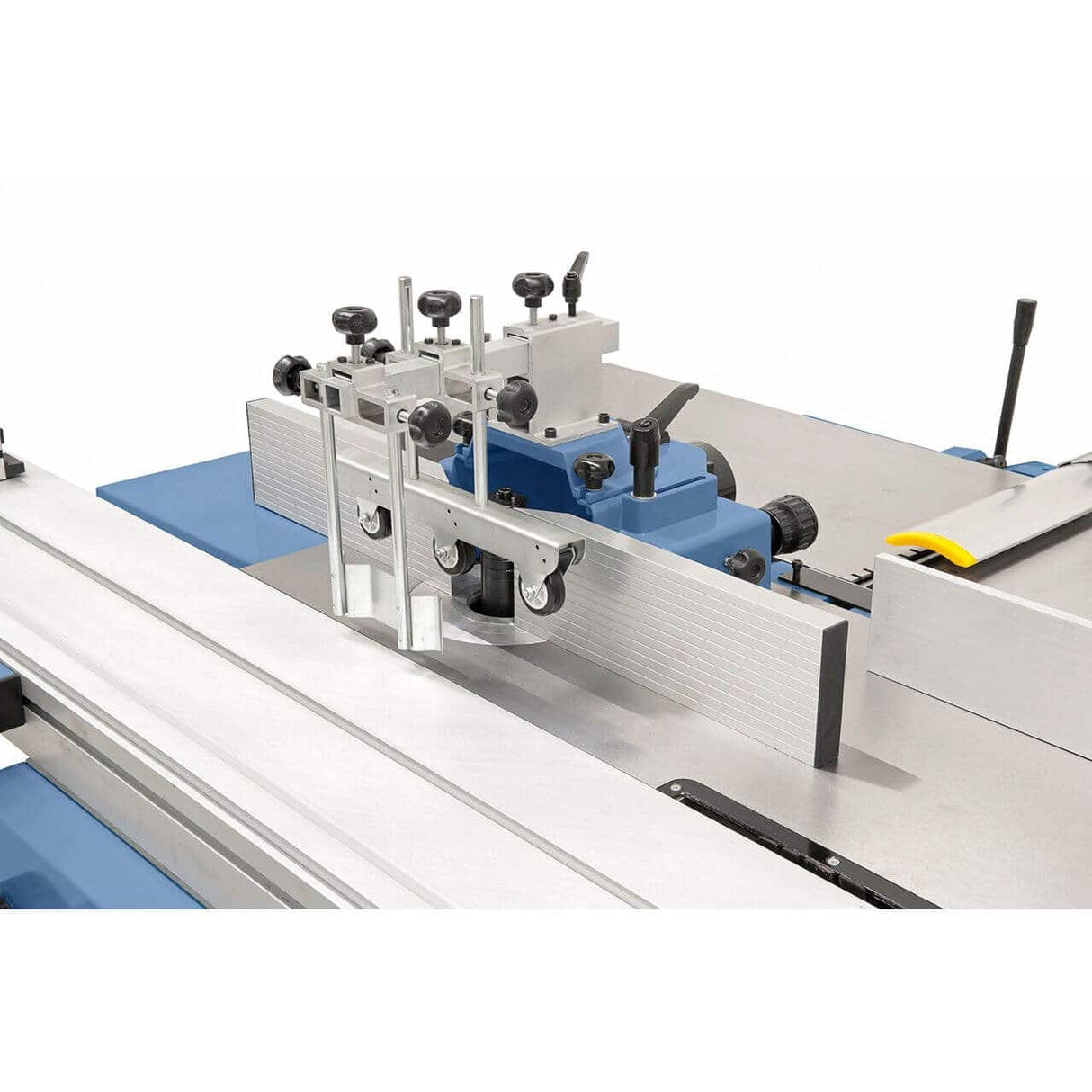

• Telescopic guide and milling guide with micrometric adjustment
• Ideal for professional work on solid wood, panels and chipboard
• Independent high power motors for each function

Technical table

Function Characteristic

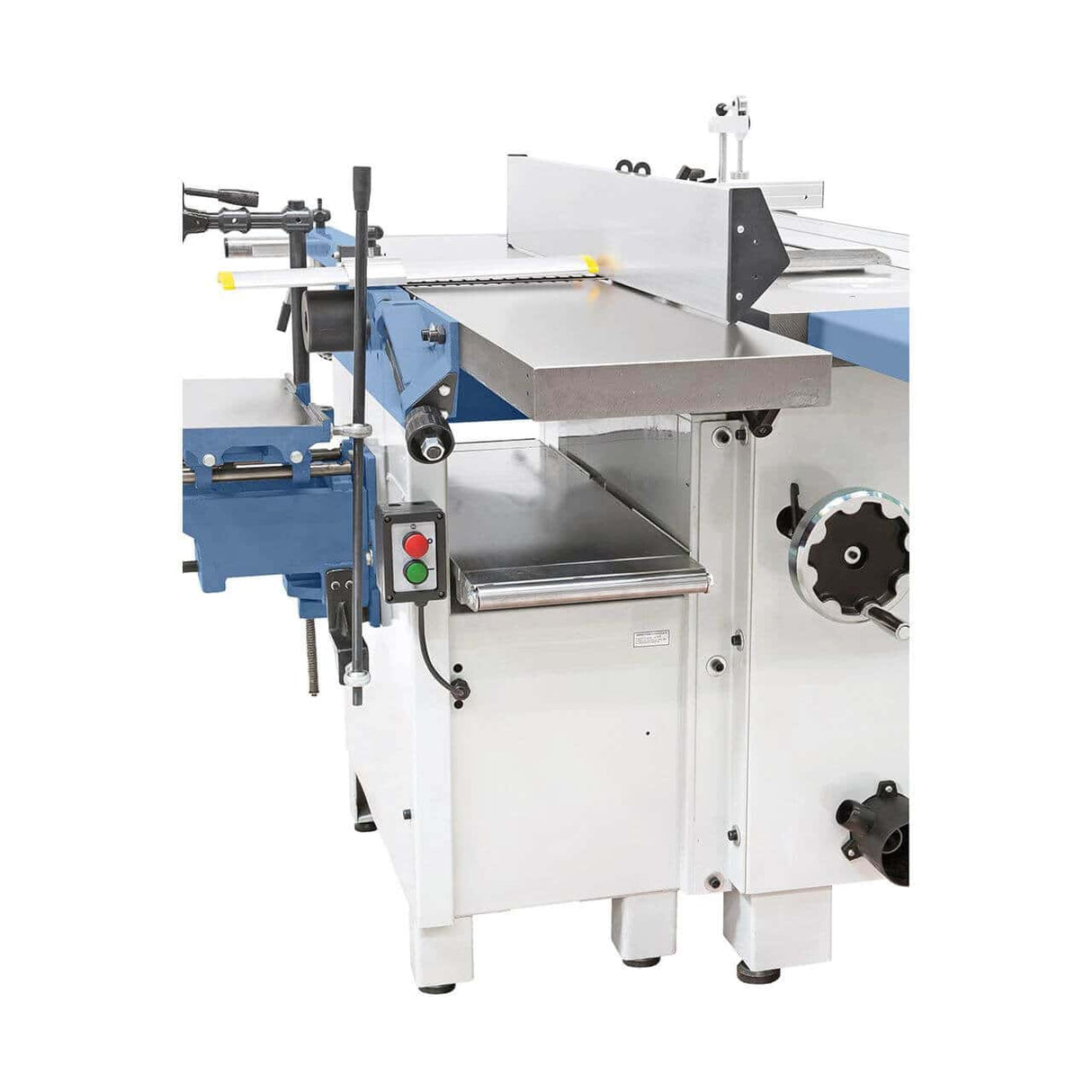

SURFACE PLANER
Planing width 310 mm
Table length 1600 mm
Table height 950 mm
Shaft speed 4100 rpm
Knives 4 pcs
Shaft diameter 95 mm
Planer guide 1100 x 150 mm
Guide inclination 90° – 45°
Maximum cutting depth 5 mm
S1 engine power 2.2 kW (3.0 HP)
S6 engine power 3.0 kW (4.0 HP)

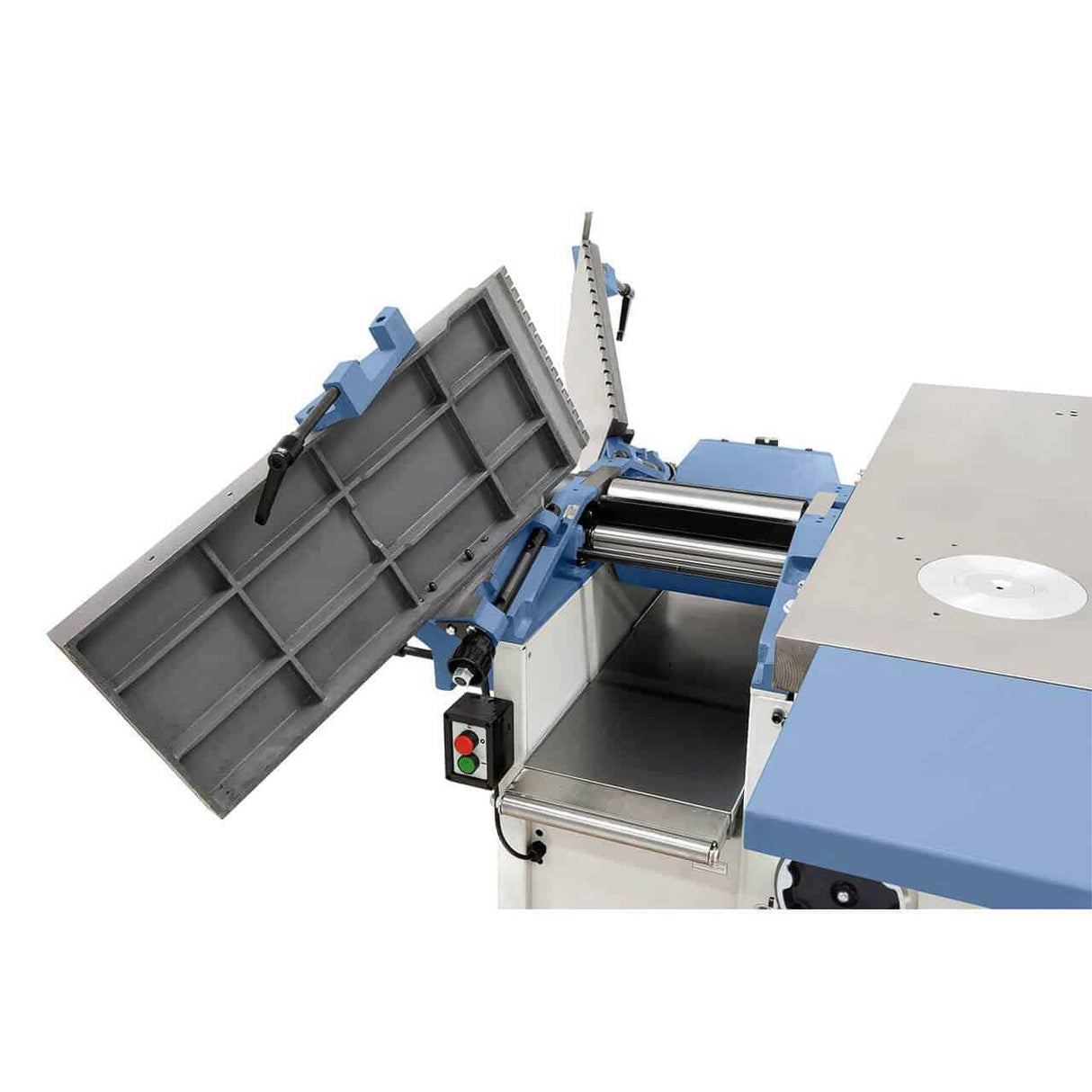

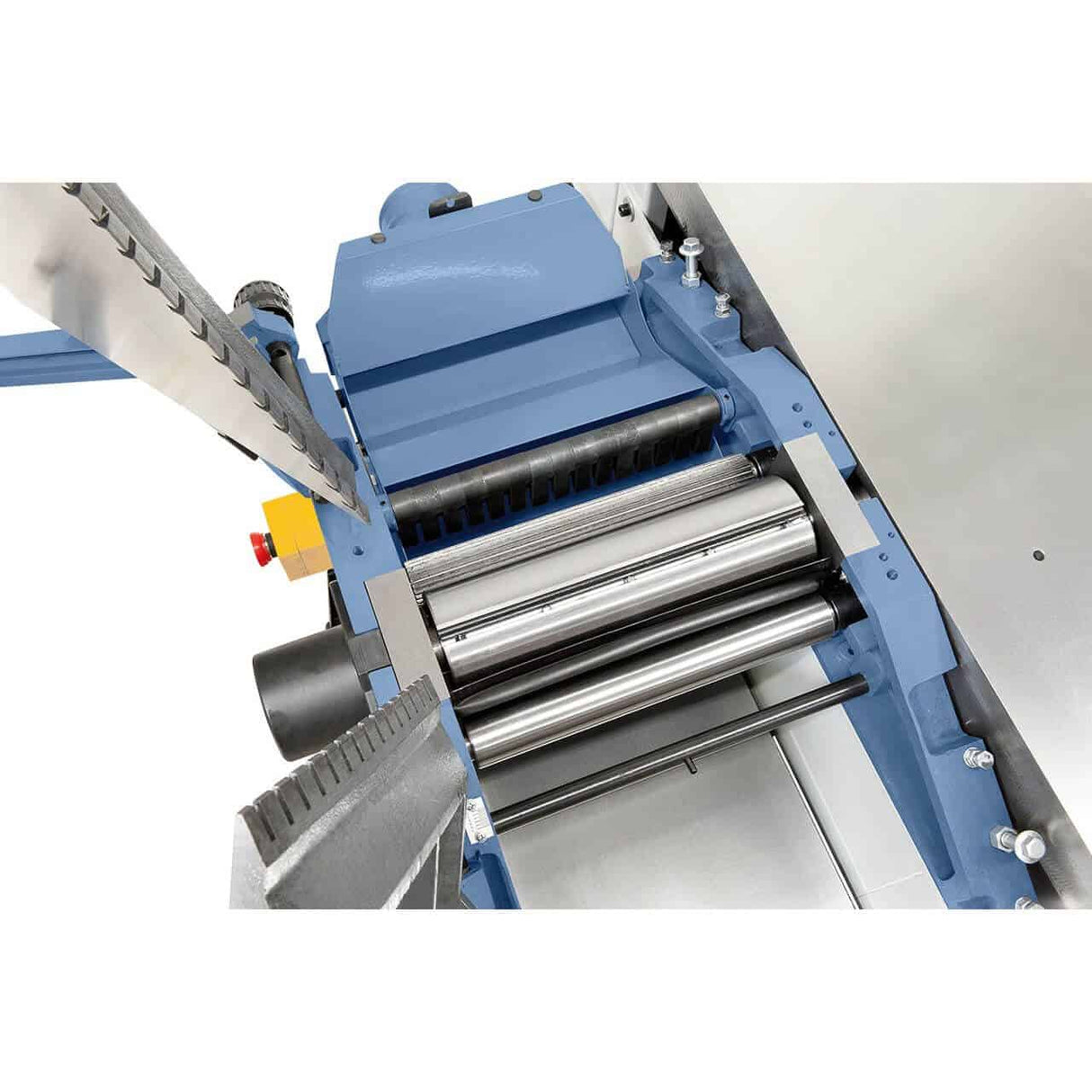

THICKNESS PLANER
Table length 750 / 930 mm*
Max width 305 mm
Min/max thickness 5 – 230 mm
Maximum cutting depth 5 mm
Piece advancement 6 m/min
Aspiration Ø 100 mm
MORTISER
Table 450 x 190 mm
Spindle 0 – 16 mm
Drilling depth 125 mm
Drilling width 175 mm
Height adjustment 115 mm
CIRCULAR SAW
Table dimensions 1300 x 380 mm
Table height 950 mm
Table extension 310 x 350 mm

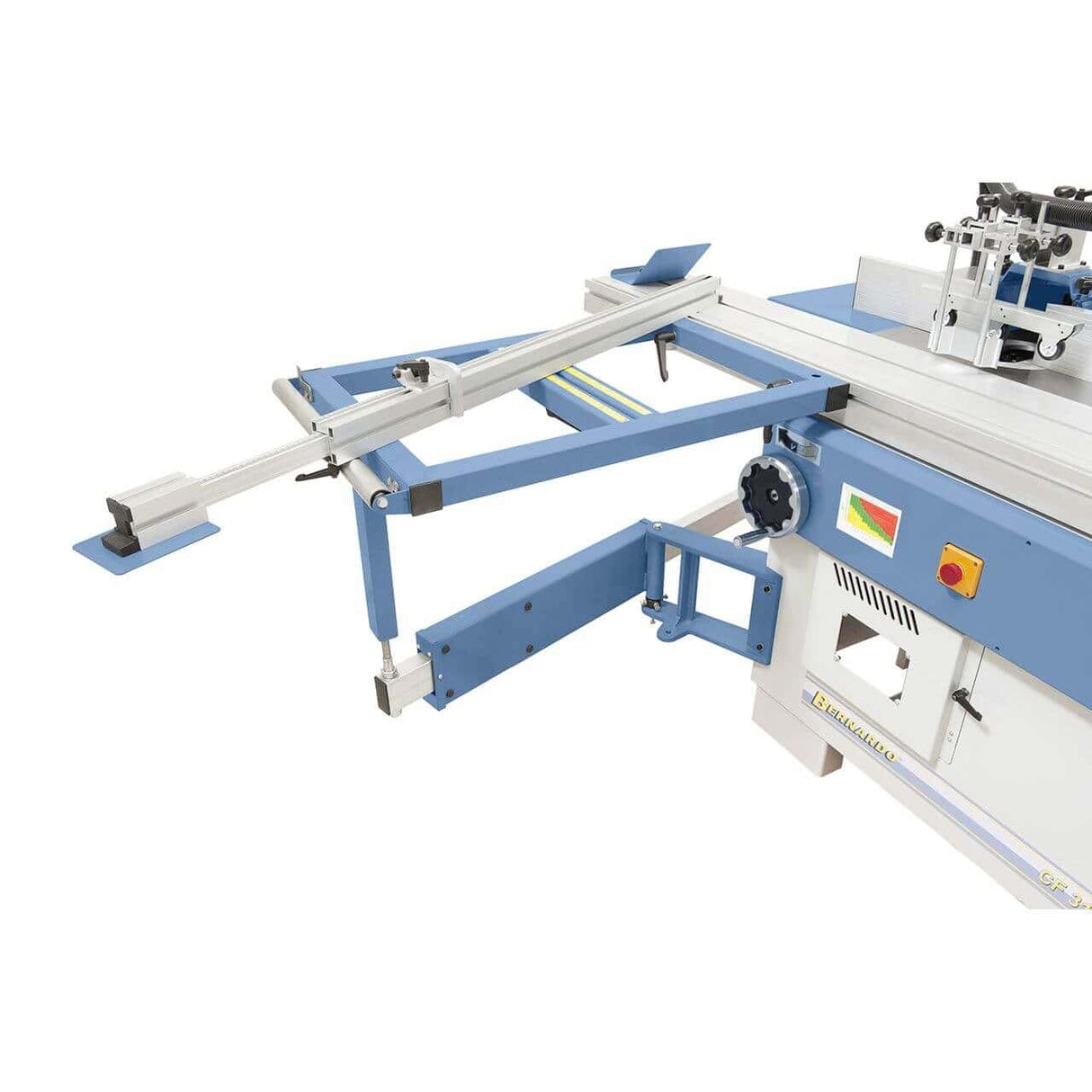

Square table with roller 880 x 580 mm
Sliding table 2600 x 270 mm
Cutting length 2600 mm
Max blade diameter 315 x 30 mm
Cutting height 90°/45° 100 / 80 mm
Guide cutting width 630 mm
Blade speed 4500 rpm
Engraver speed 8500 rpm
Engraving blade 90 x 20 mm
Aspiration Ø 95 mm
S1 engine power 3.0 kW (4.0 HP)
S6 engine power 4.2 kW (5.7 HP)

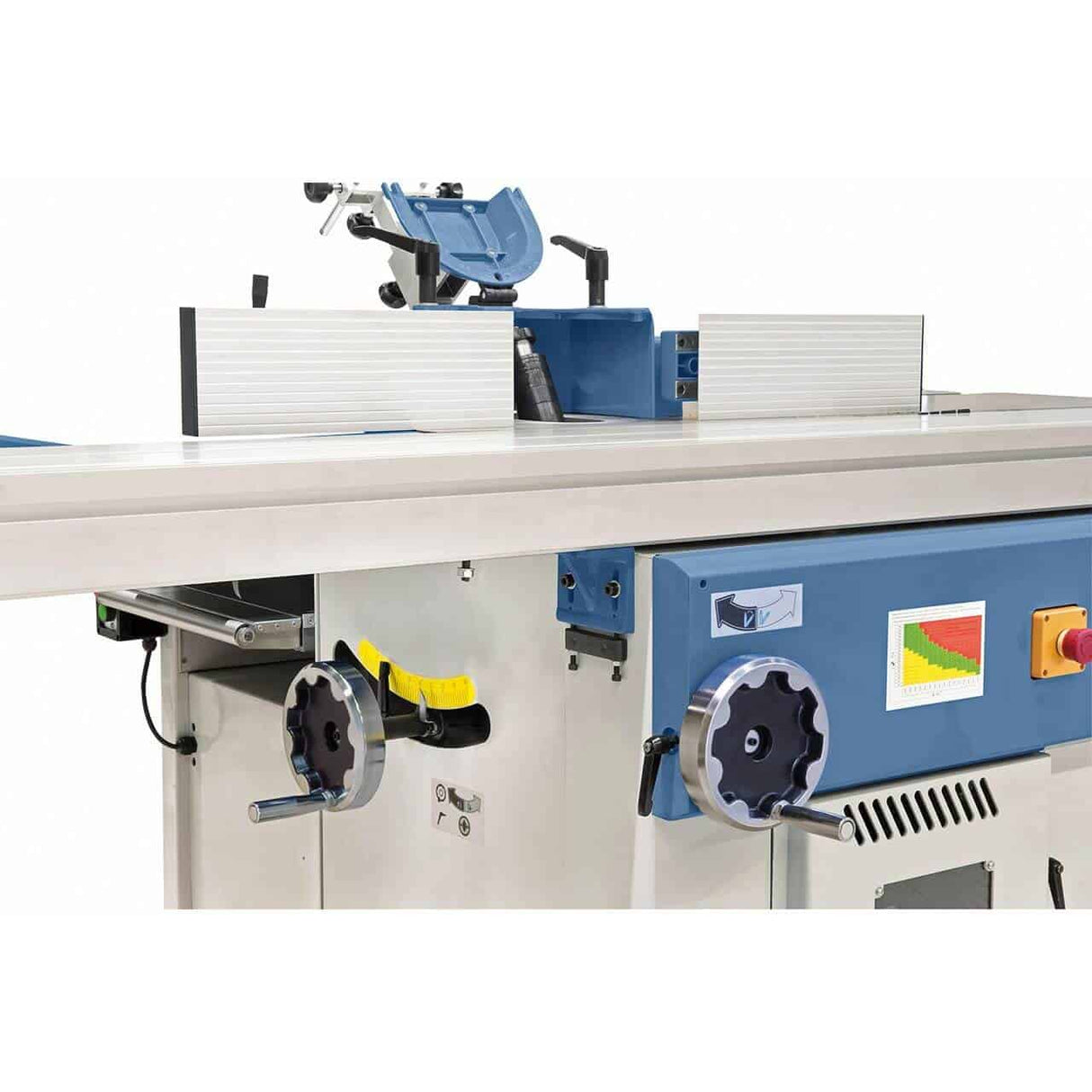

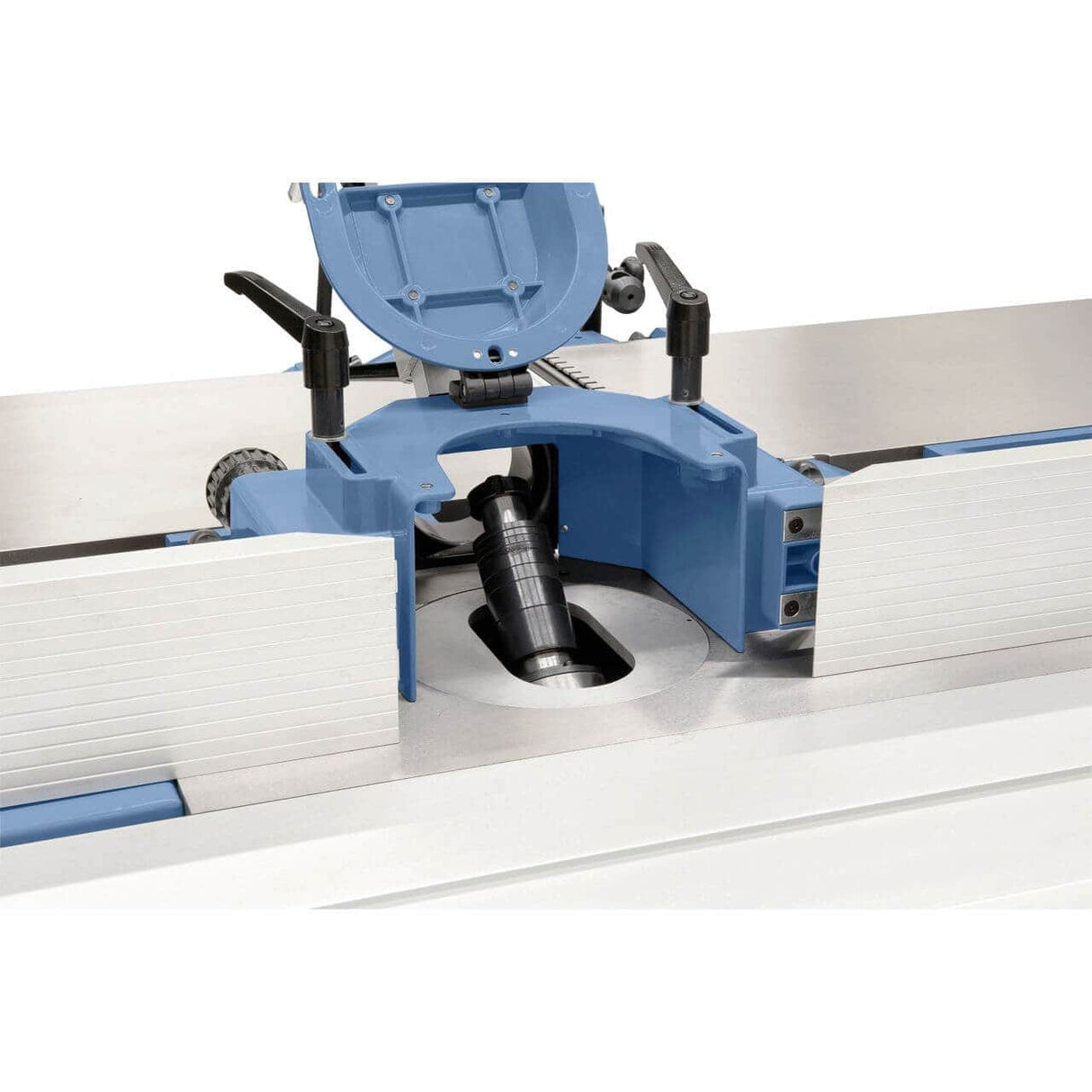

VERTICAL MILLING MACHINE
Shaft diameter 30 mm
Height race 125 mm
Tree tilt 0° – -45°
Opening plan 80 / 110 / 150 / 200 mm
Usable shaft length 110 mm
Max tool diameter 180 mm
Rotation speed 1800 / 3000 / 6000 / 9000 rpm
Aspiration Ø 100 mm
S1 engine power 2.8 kW (3.8 HP)
S6 engine power 3.9 kW (5.3 HP)
GENERAL DATA
Voltage 400 V
Machine dimensions 2600 x 2700 x 1280 mm
Weight 675 kg

* with thicknesser table extension

Package Contents
• Planer knives 310 x 30 x 3 mm
• Planer table extension with roller
• Complete digger
• Westcott chuck 0–16 mm
• Eccentric support
• Widia blade 315 x 3.0 x 30 mm / 40 teeth
• Scoring blade 90 x 3.0 x 20 mm / 12 teeth
• Protection with suction nozzle and tube
• Angle guide with eccentric support
• End of stroke stop
• Table extension
• Telescopic guide with stop
• Square table with roller
• Milling machine guide
• Shaft with right/left rotation
• Digital spindle moulder speed indicator
• Push handle
• 2 pushers
• Tool set

Frequently Asked Questions

It's a professional multifunction machine for planing, thicknessing, hollowing, scoring, and tilting milling. Perfect for woodworking shops looking for quality and compactness.
The 315mm blade allows cuts up to 100mm at 90° and up to 80mm at 45°, with the integrated scoring blade for coated panels.
Yes, the spindle moulder can be tilted from 0° to -45°, ideal for complex and precise milling on inclined profiles.
It works with a 400 V three-phase power supply, necessary to guarantee power and reliability in all processes.
Daily cleaning of surfaces, regular lubrication of guides, periodic inspection of belts, blades, cutters, and safety systems. Simple but constant maintenance.
