Description

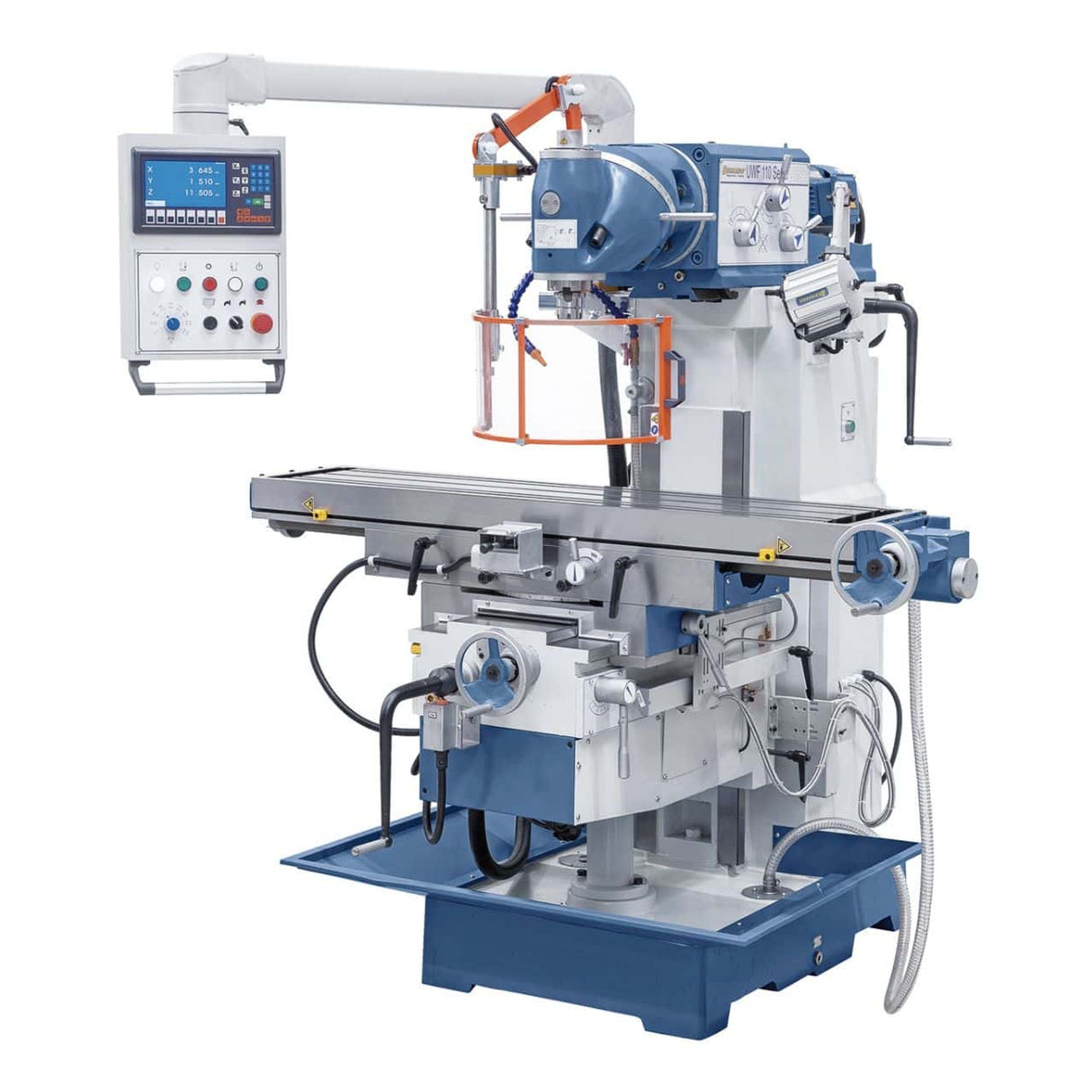

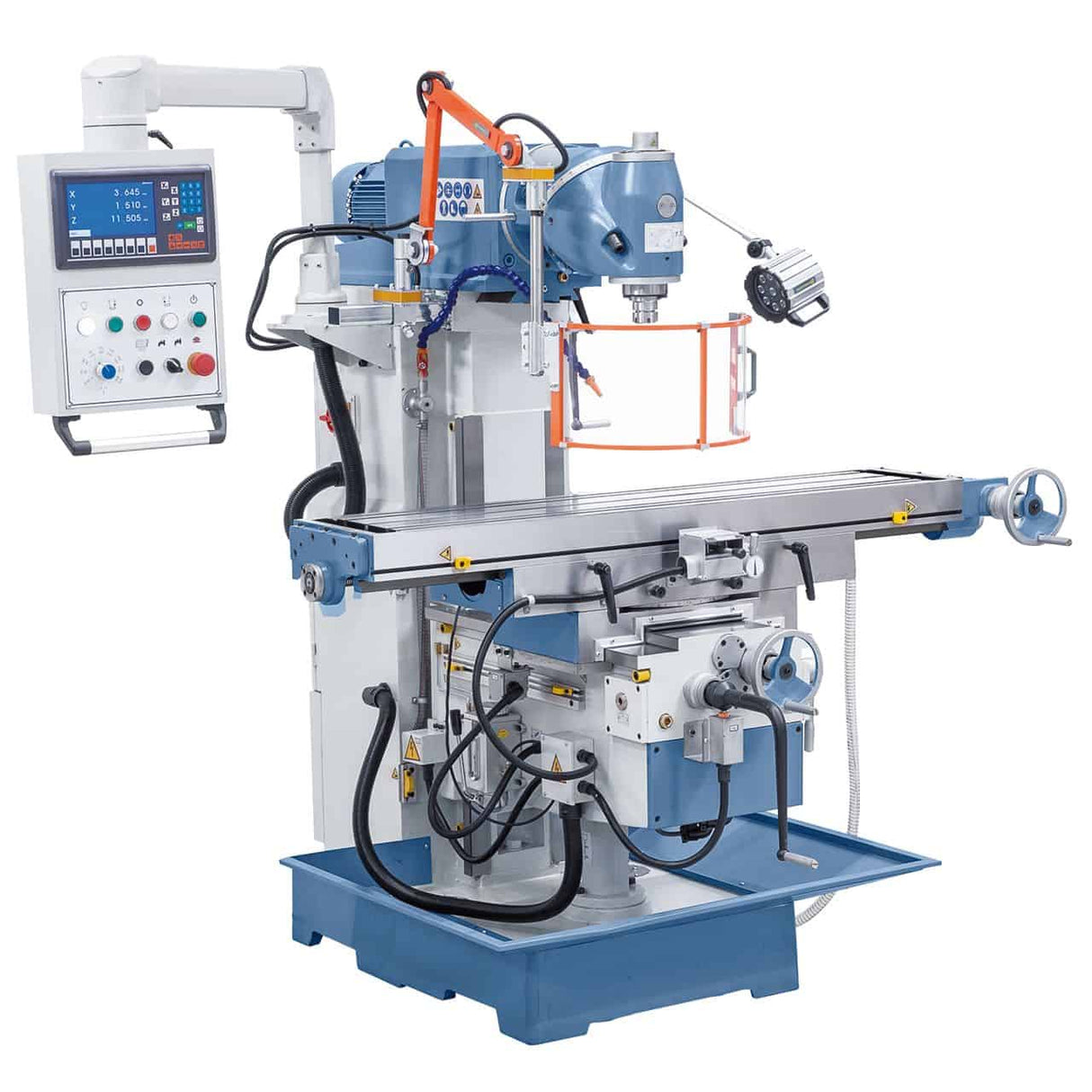

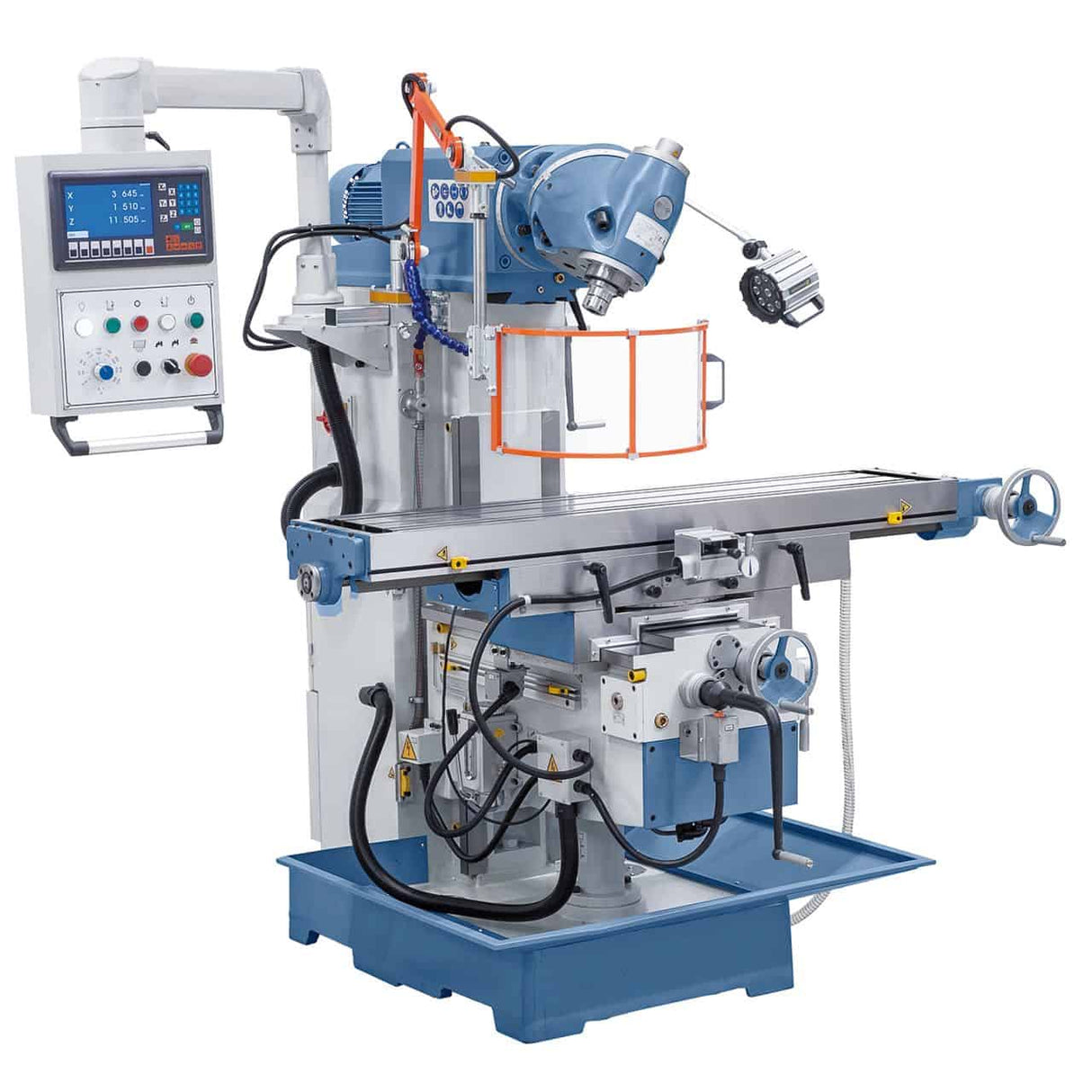

UWF 110 Servo Universal Milling Machine

The UWF 110 Servo Universal Milling Machine is a versatile and robust machine designed for light to medium-duty milling. Thanks to its ease of use and adaptation, it is ideal for workshops requiring flexibility and precision in small to medium-duty production runs. This milling machine features a solid cast iron frame, ensuring stability and reducing vibration during use, and is equipped with a universal milling head adjustable to any angle, ideal for complex machining. The servo motor ensures automatic feed and rapid traverse on all axes, increasing operational efficiency.

Main Features:

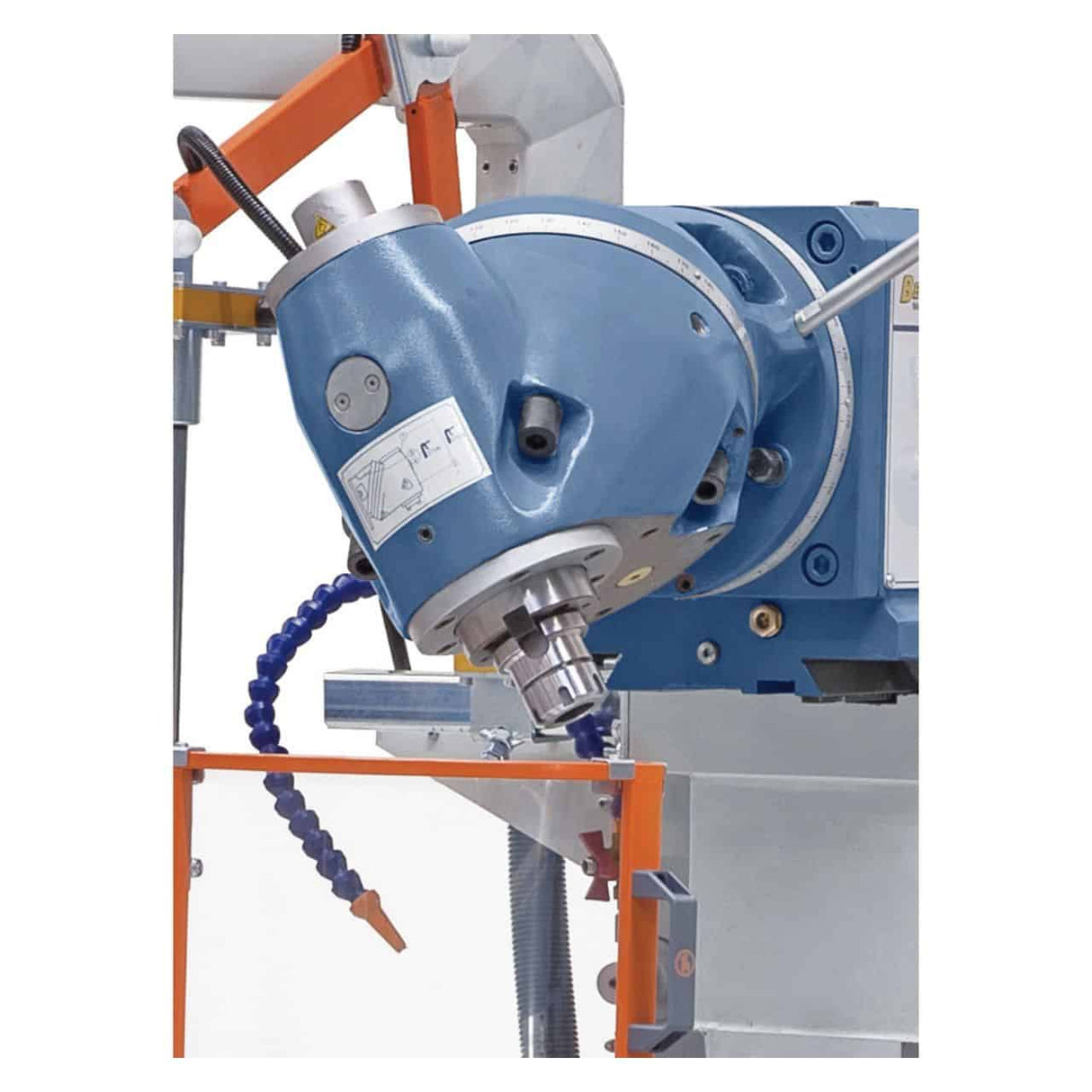

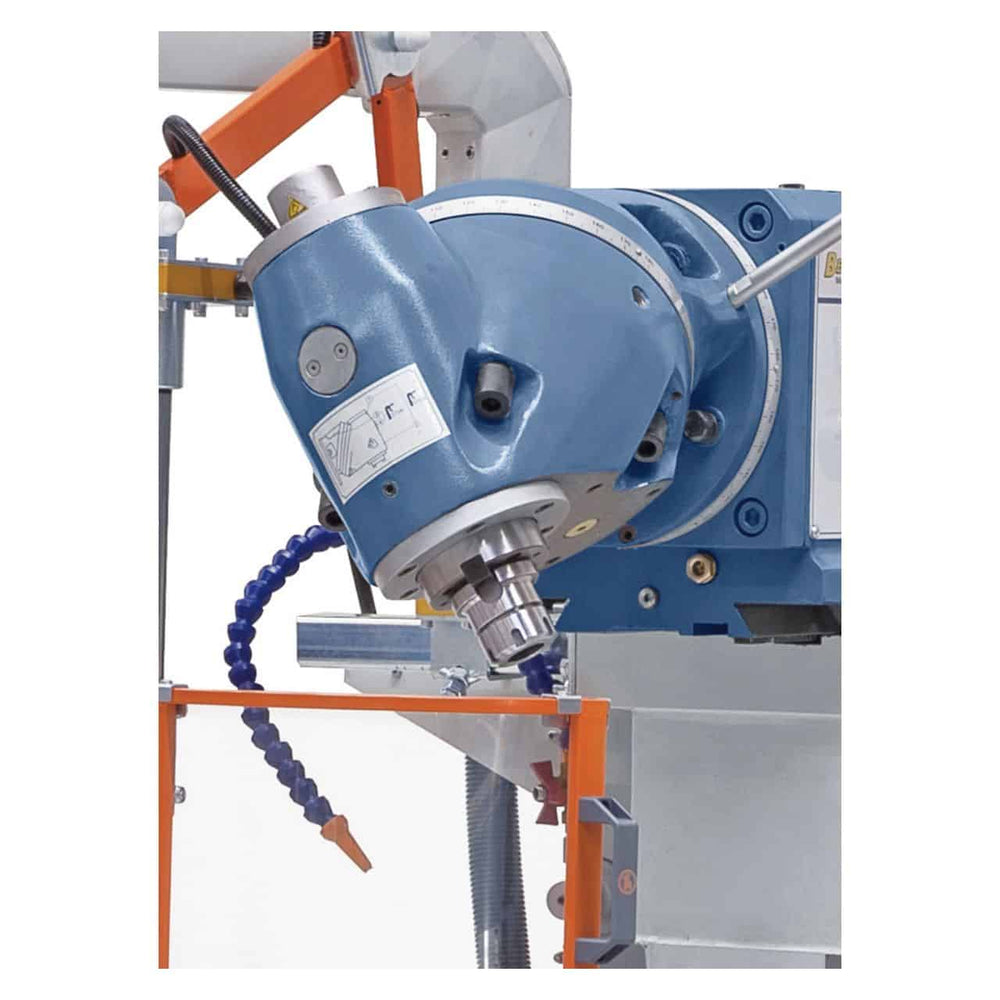

  • Universal Milling Head "Huron" : Adjustable in all angular positions, it allows a wide range of applications, making the machine extremely flexible.

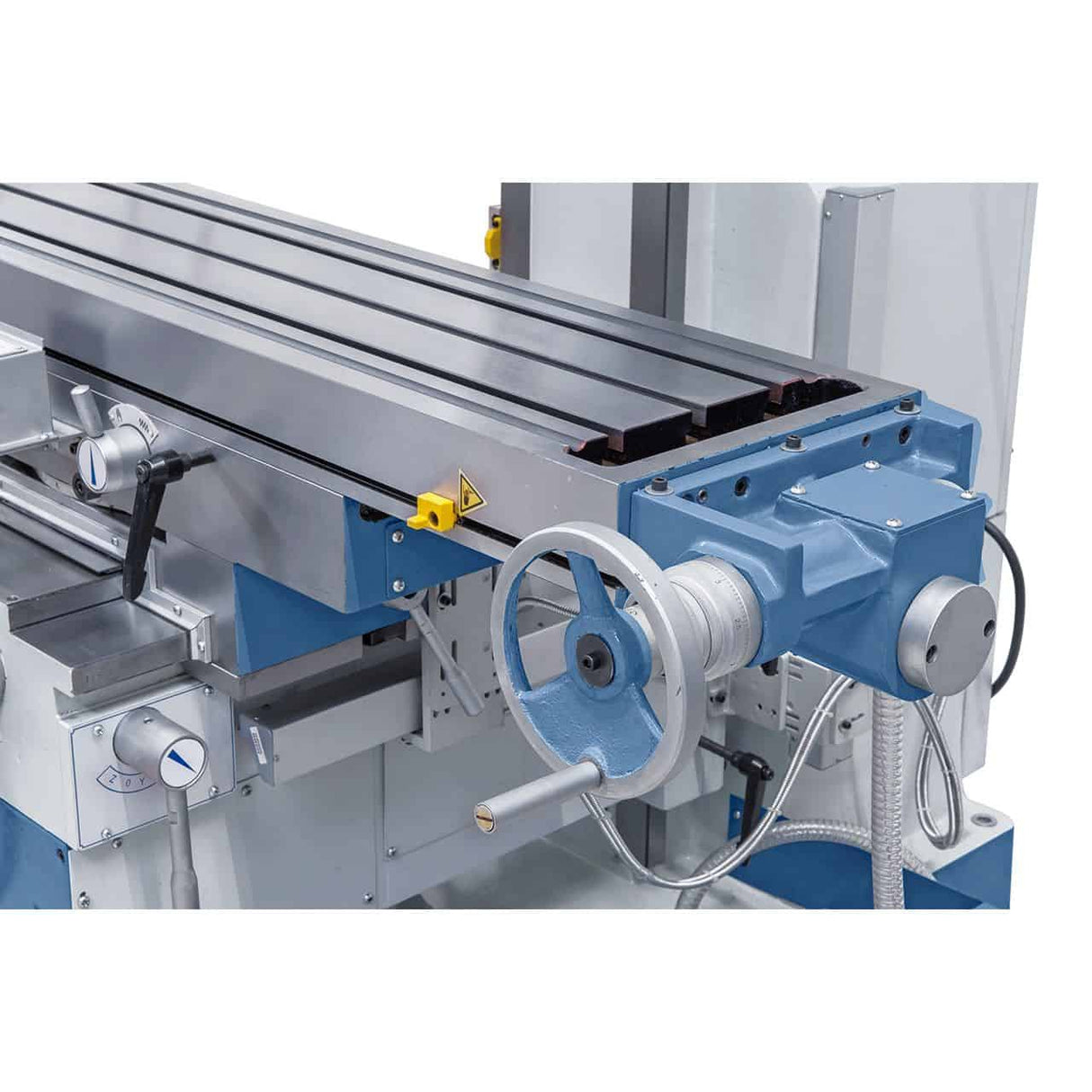

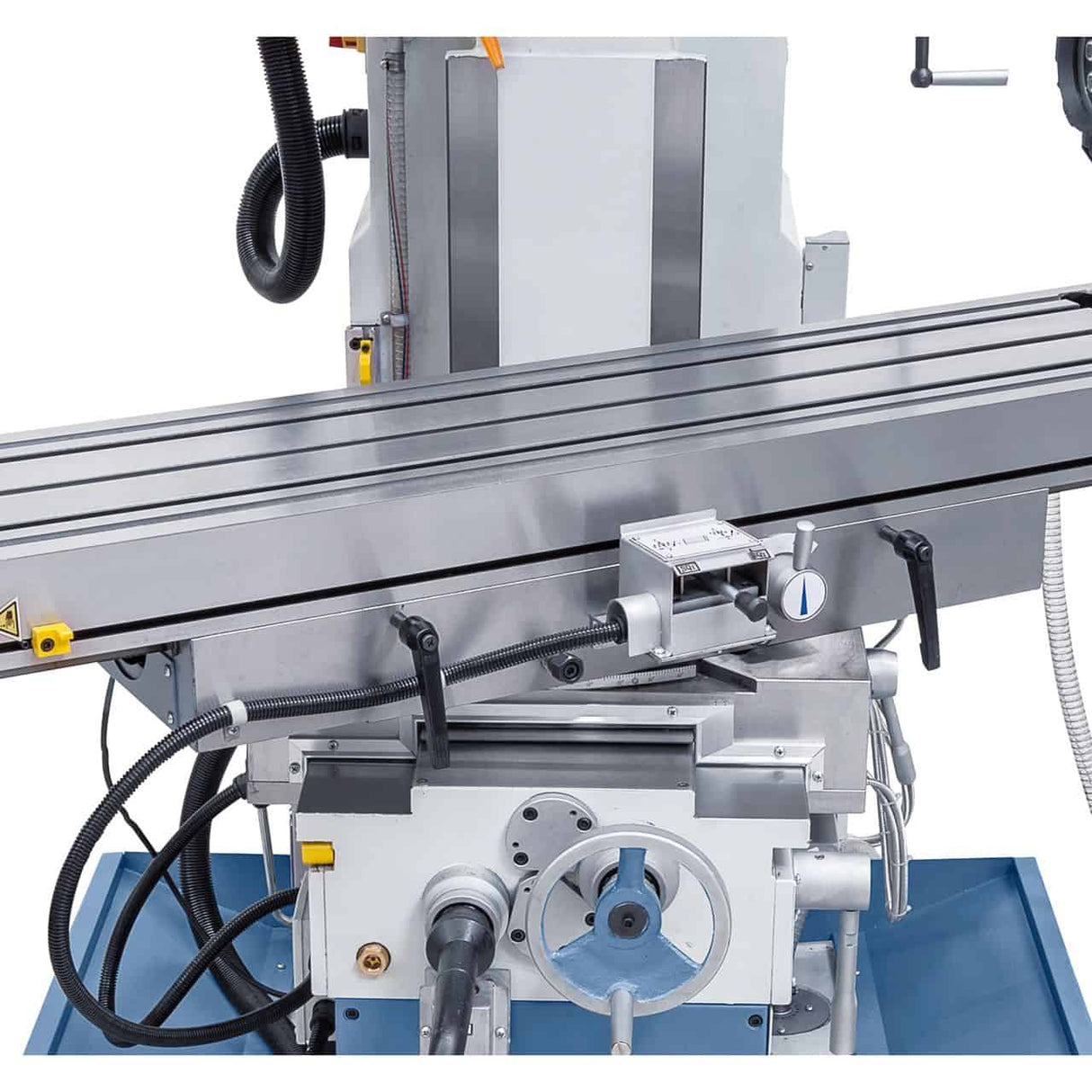

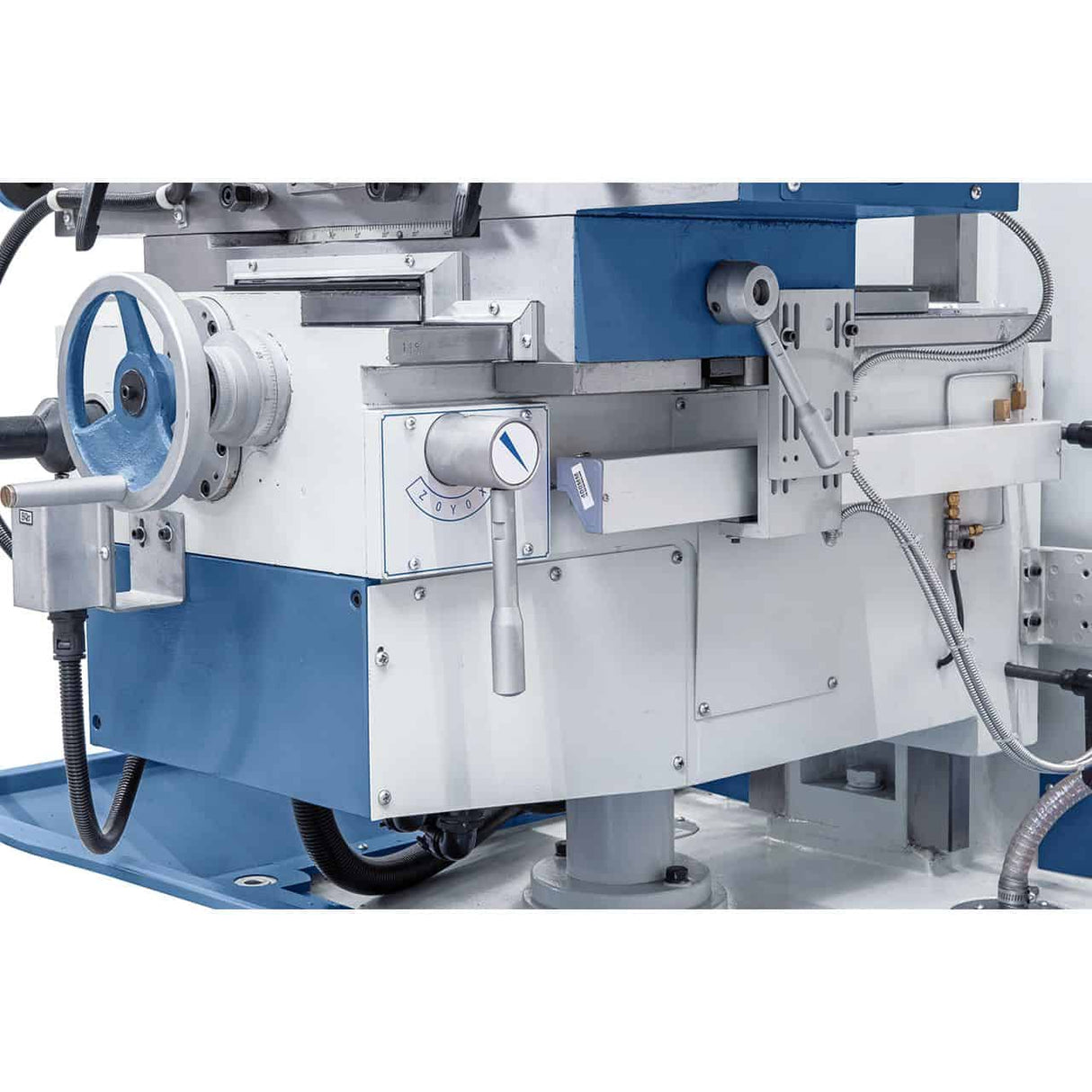

  • Large Rectangular Guides : In the Y and Z axes, the rectangular guides ensure stability and precision, even when machining with high loads.

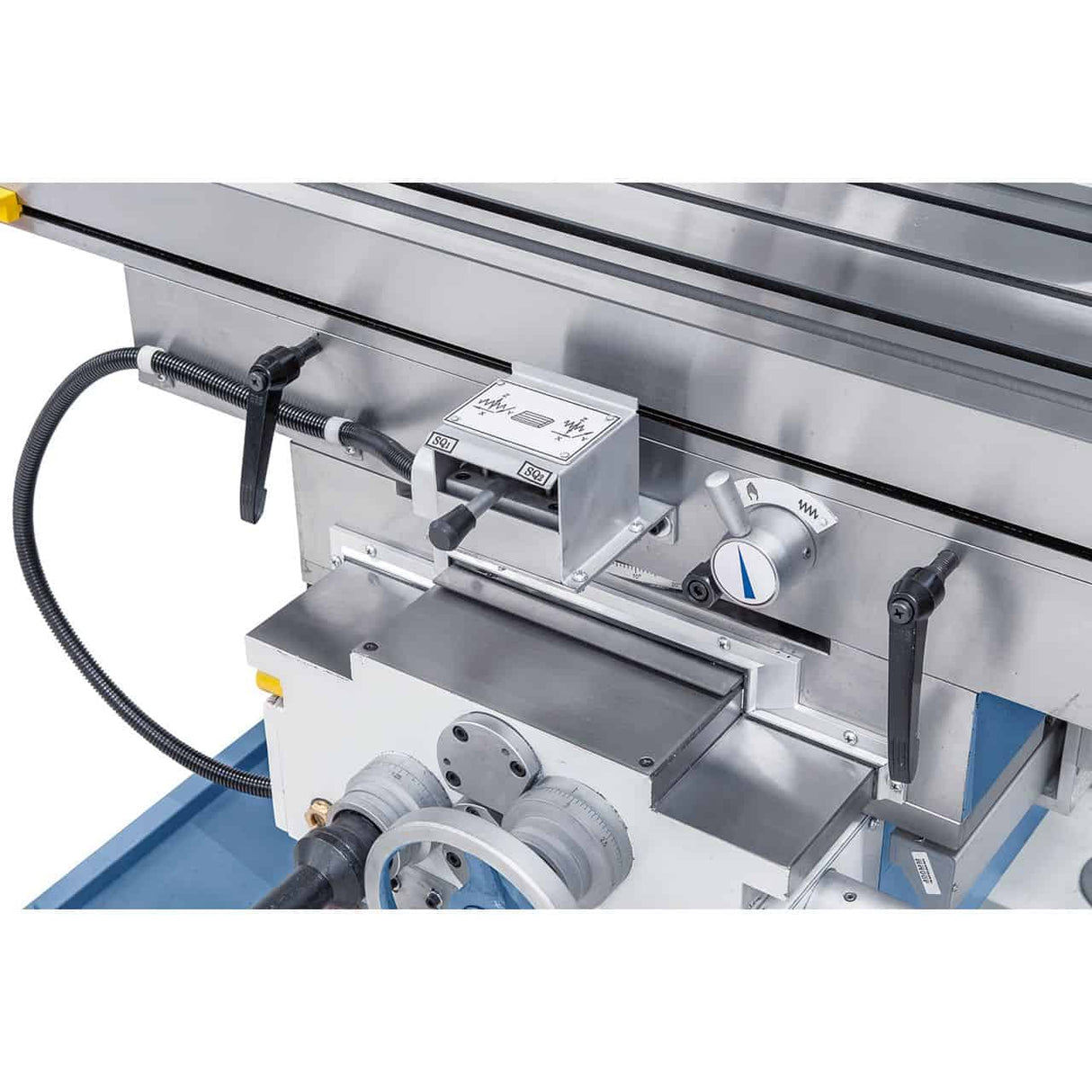

  • Automatic Feeds : The machine is equipped with 8 automatic feeds, operated by a servo motor, which guarantee precision and speed in processing.

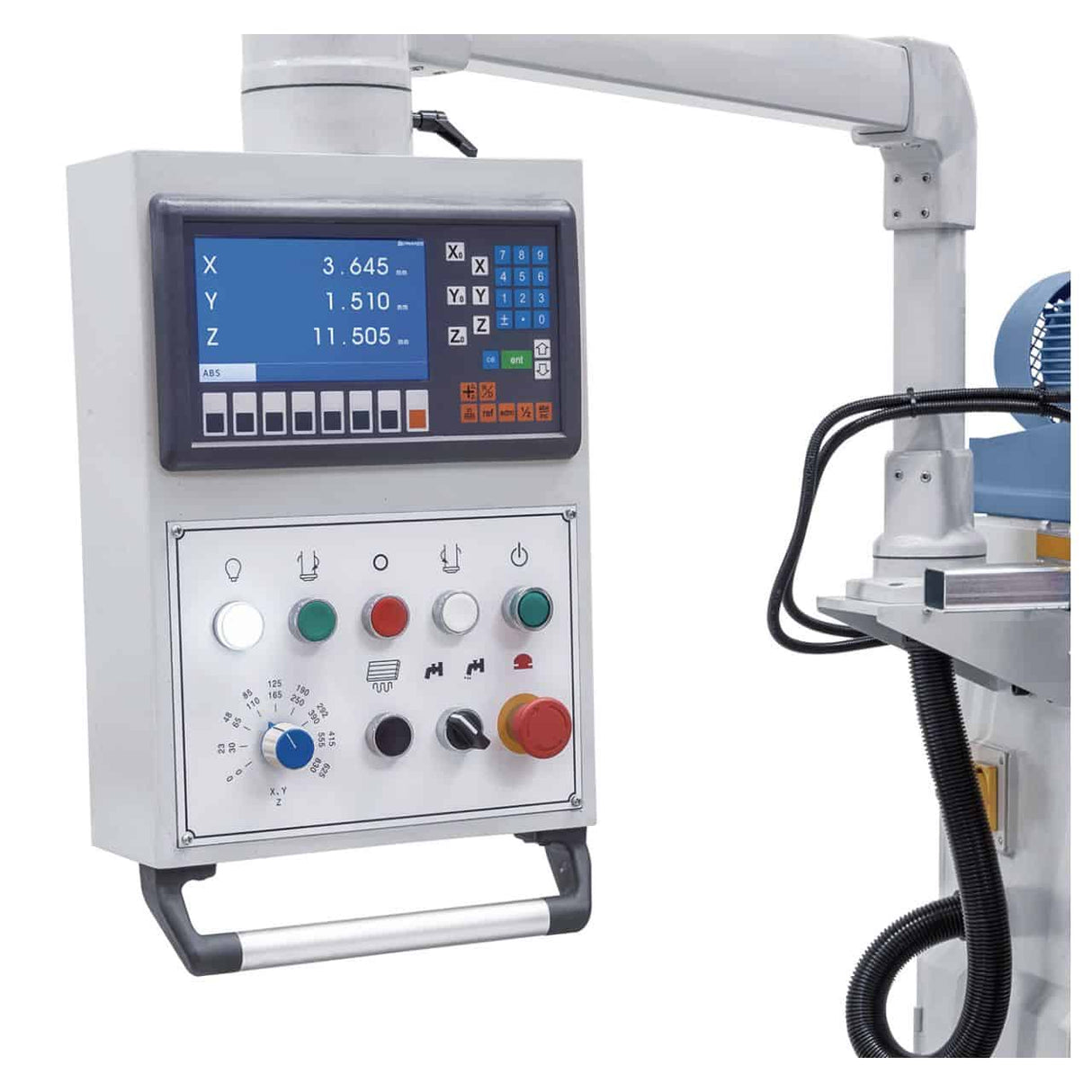

  • Ergonomic Control Panel : The tilting panel, with ergonomically arranged controls, makes using the machine easy and intuitive.
  • Robust Cast Iron Structure : The heavy cast iron base reduces vibrations, ensuring consistent work quality.

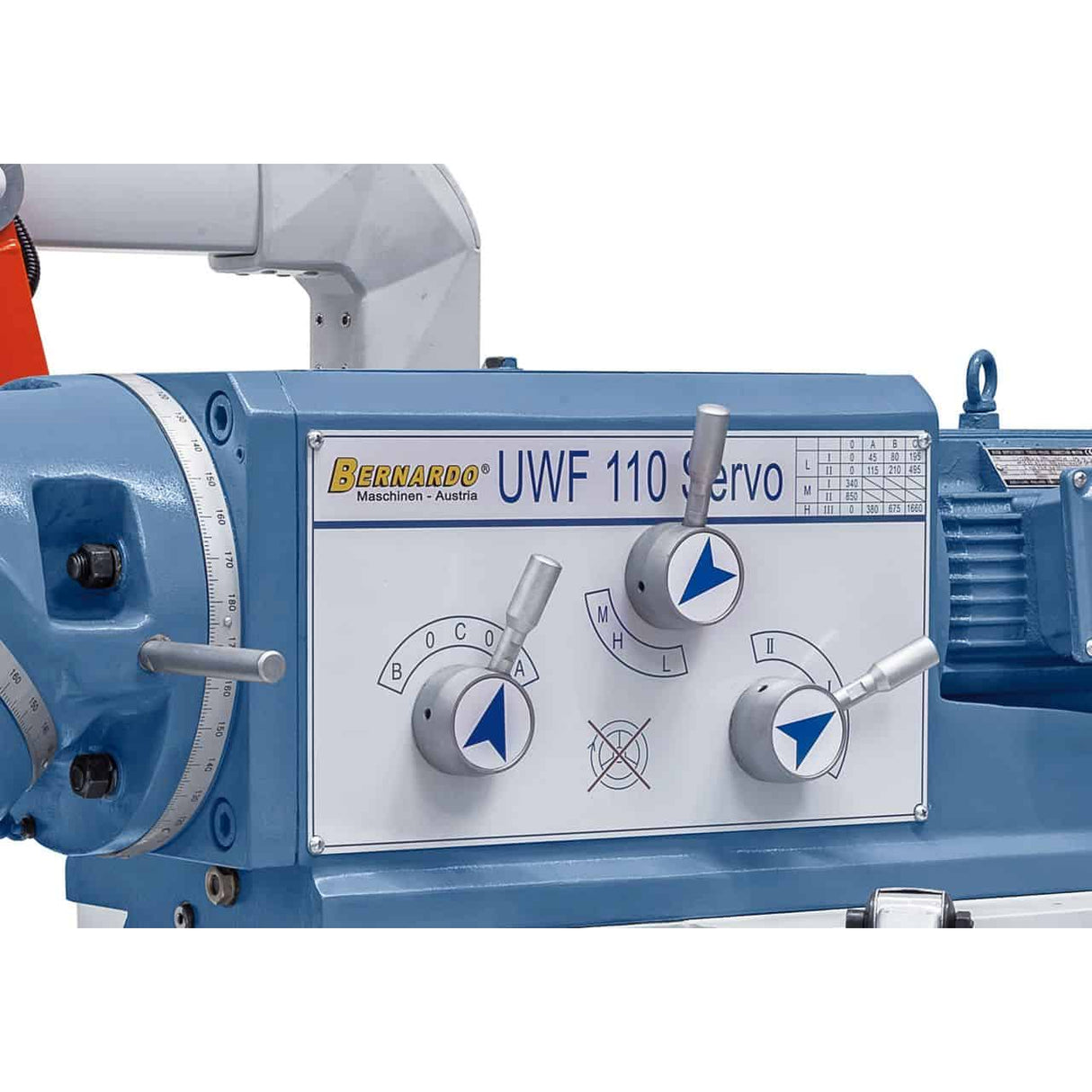

  • Silent Gears : The transmission gears, operating in an oil bath, minimize noise and improve the durability of the machine.

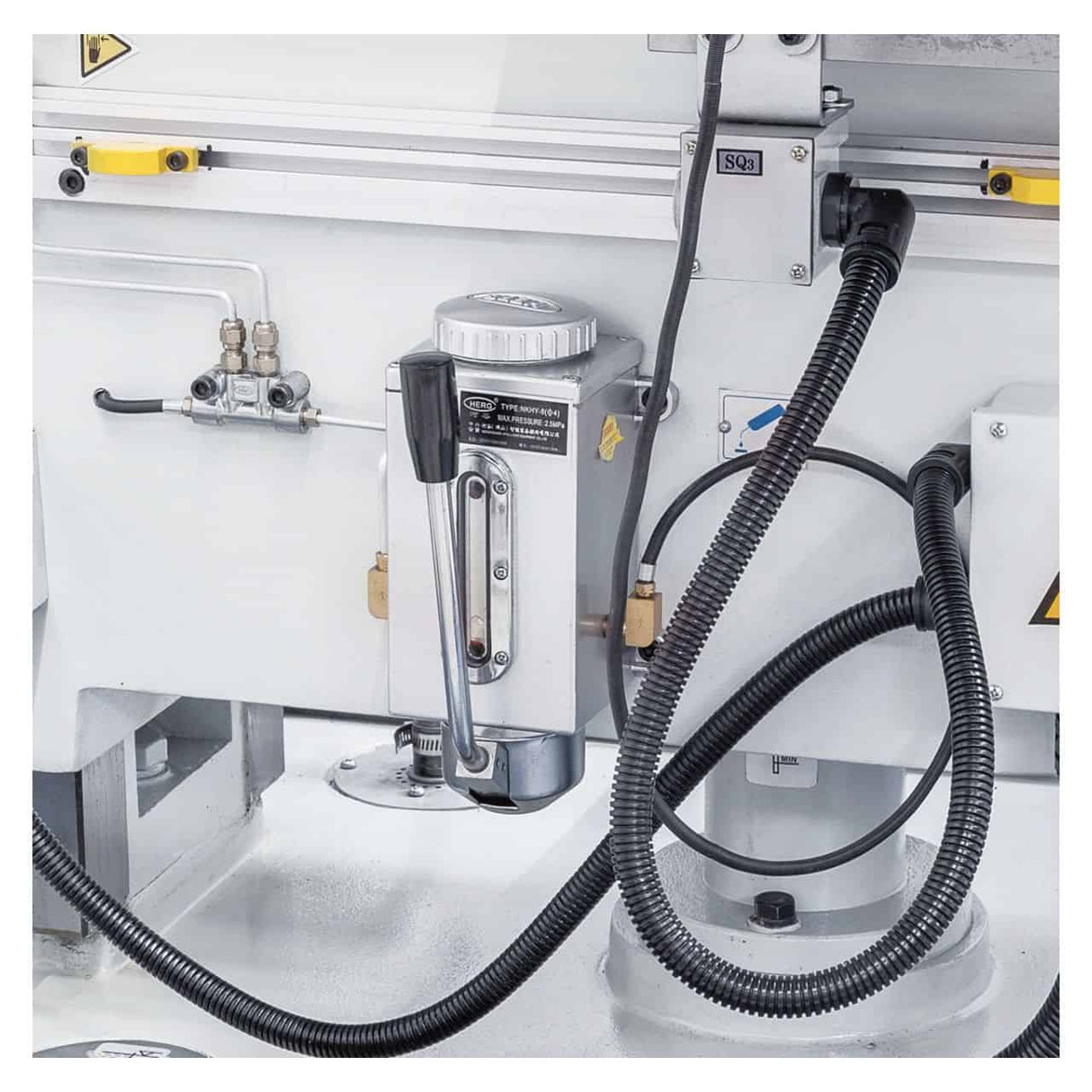

  • Central Lubrication : Automatic centralized lubrication of the X, Y and Z axes ensures long life of the guides and reduces wear.

Standard Accessories:

  • ES-12 H 3-Axis Position Display with LCD Display
  • M16 clamping chuck
  • Integrated LED light
  • Refrigeration system with cooling tank
  • Long and combined drill chuck ISO 40 / 27 mm
  • External support

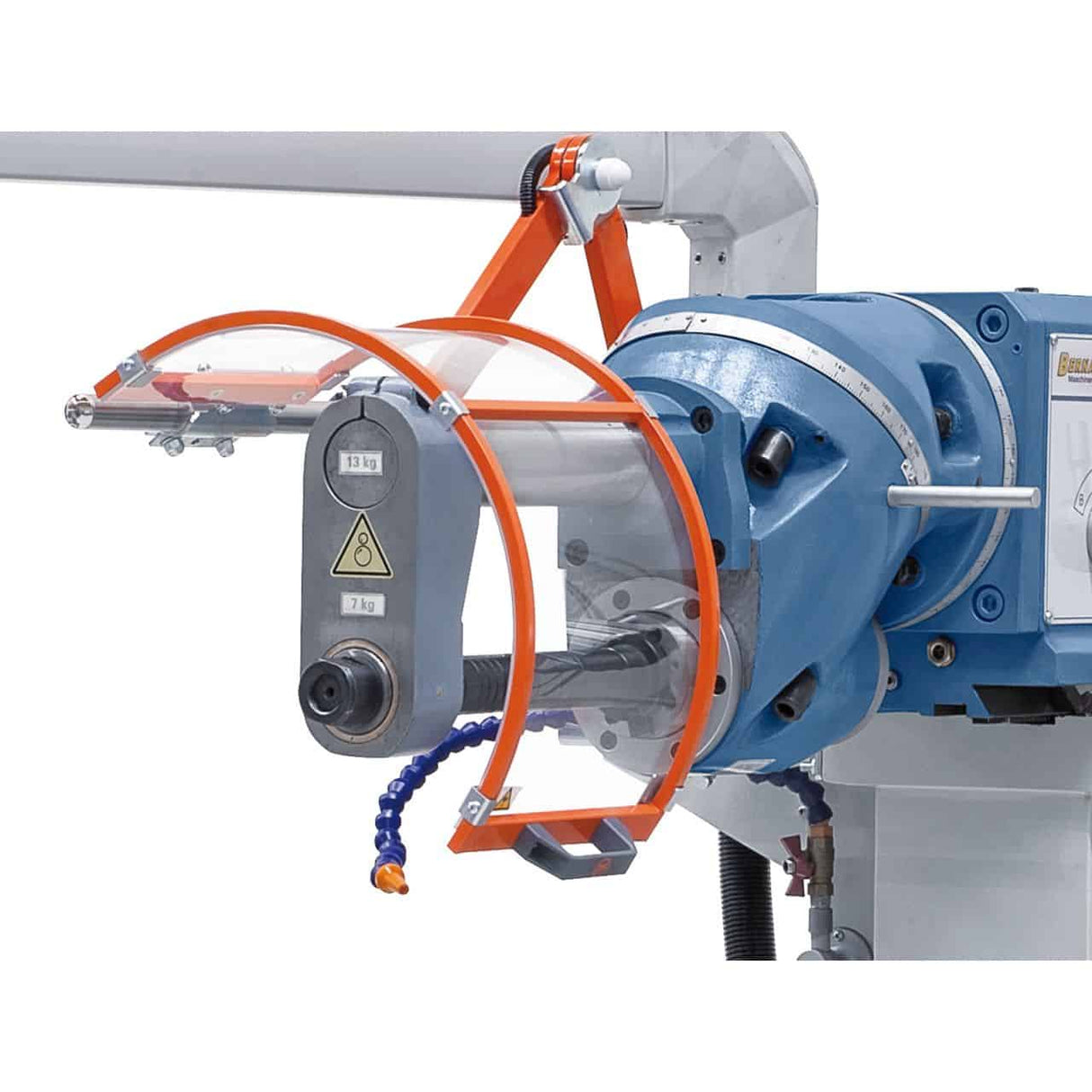

  • Adjustable protection device
  • Central lubrication for X, Y and Z axes
  • Advanced control device

Technical Specifications :

Characteristic Detail
Table dimensions 1370 x 300 mm
Spindle attachment ISO 40
Spindle speed (11) 45 – 1660 rpm
Longitudinal travel (X) 1000 mm
Transverse stroke (Y) 360 mm
Vertical stroke (Z) 400 mm
Spindle/table distance 60 – 460 mm
Length of the arms 95 – 575 mm
Tilting table from -45° to +45°
Maximum piece weight 250 kg
Longitudinal / transverse advancement area (8) 30 – 830 mm/min
Vertical advancement area (8) 23 – 625 mm/min
Rapid travel X, Y and Z axes 1000 / 1000 / 750 mm/min
T-slots (number, width, spacing) 3 / 14 mm / 80 mm
Main engine power 3.0 kW
Servo motor (torque / power) 10 Nm / 1.5 kW
Pump power for coolant circulation 60 W
Coolant circulation pump flow rate 12 l/min
Machine dimensions (L x W x H) 1740 x 1860 x 1900 mm
Weight 1505 kg

The UWF 110 Servo Universal Milling Machine is the ideal choice for workshops seeking a versatile and robust machine for precision machining in small and medium runs. The universal milling head, combined with the automatic feed system and servo motor for rapid travel on all axes, offers flexibility and operational efficiency, ensuring maximum stability thanks to its rectangular guideways. With a wide range of included accessories and a central lubrication system, this milling machine is an ideal investment for those seeking quality and reliability.
