Bernardo  |  SKU: 28-2121

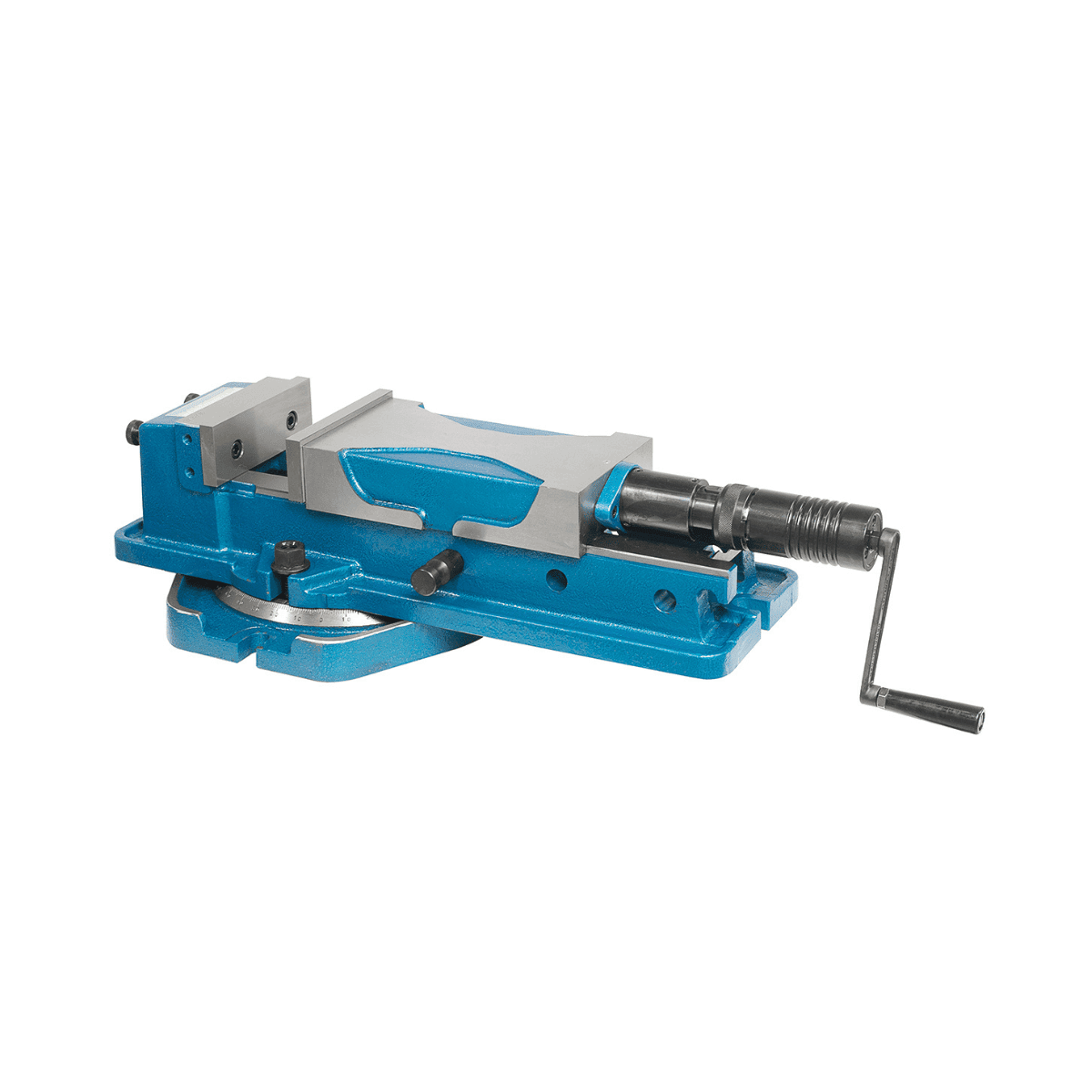

Hydraulic machine vice PHV 160

€2.035,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

Property

  • Can be used on modern CNC machines and machining centers
  • Mechanical / hydraulic locking system by means of a cross crank
  • Hardened and ground guides
  • The integrated jaw mechanism prevents the movable jaw from lifting and the workpiece from tipping over
  • Quick adjustment of the clamping area by means of connecting pins
  • Mechanical or alternatively mechanical/hydraulic tightening by moving the adjustment bushing
  • Stable clamping force across the entire area
  • Long flat trajectory guide of the movable jaw
  • Quick and economical replacement hydraulic unit
  • Various jaws available
  • Complete with turntable and 360° scale

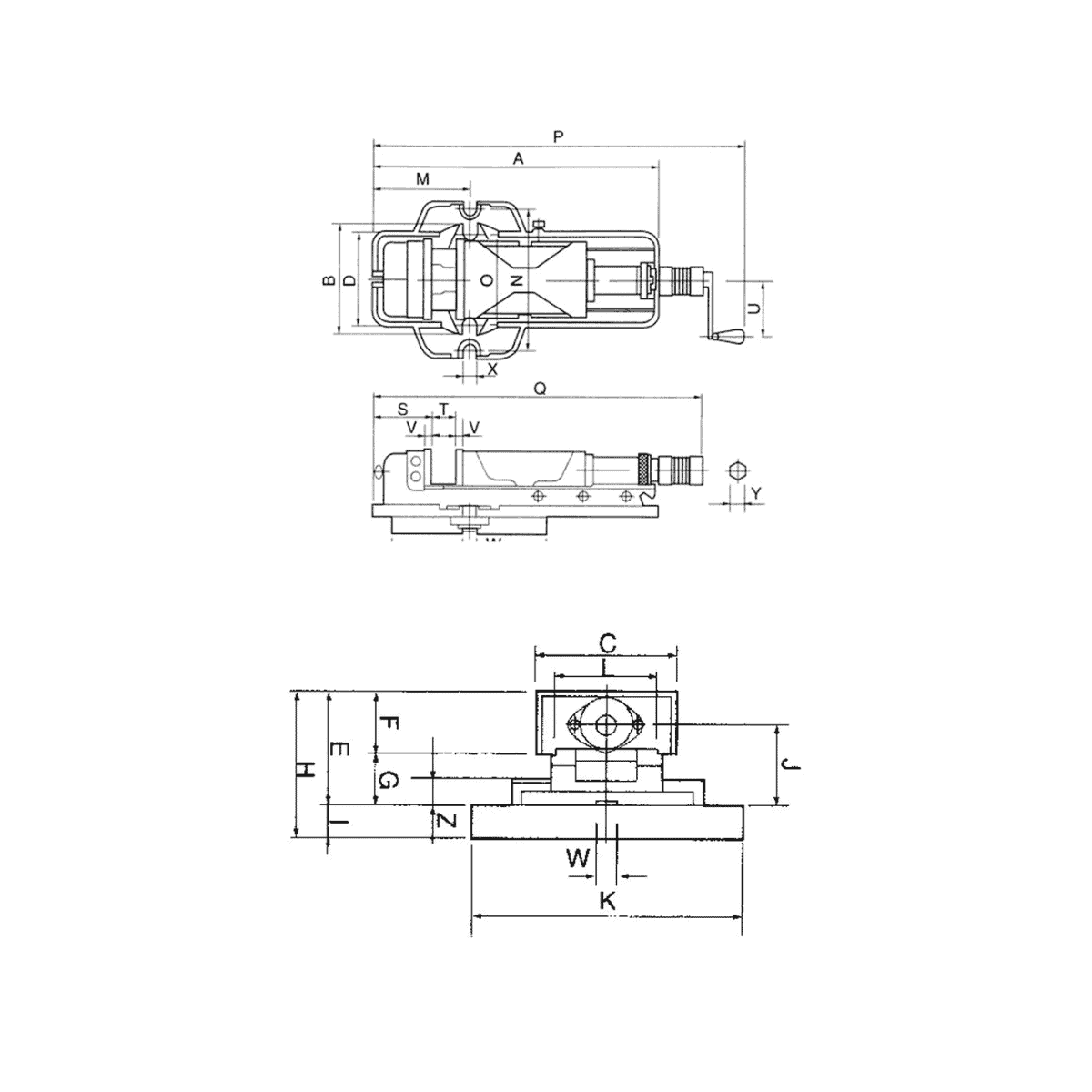

technical specifications

TO

625 mm

B

240 mm

C

160 mm

d

205 mm

AND

140 mm

F

58 mm

G

82 mm

h

179 mm

J

105 mm

K

340 mm

THE

125 mm

M

208 mm

P

755 / 1055 mm

Q

640 / 940 mm

R

320 mm

S

125 mm

T

300 mm

U

125 mm

V

15 mm

W

16 mm

X

18 mm

Y

14 mm

Z

27 mm

Clamping area I

0 - 110 mm

Clamping area II

100 - 210 mm

Clamping area III

200 - 310 mm

Max. clamping force

4000 kg

Weight approx.

72 kg
