Bernardo  |  SKU: 28-2125

High pressure machine vice - NC CHV 100 V

€1.999,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

Property

  • suitable for use in machining centers and in the production of tools, fixtures and molds
  • the fixed base body made of raw cast iron is hardened and ground
  • Mechanical / hydraulic locking system by means of a cross crank
  • usable horizontally, laterally and vertically
  • Alignment to the table by means of a transverse groove, longitudinal on request
  • Spindle protected against dirt and chips
  • The integrated jaw mechanism prevents the movable jaw from lifting and the workpiece from tipping over
  • high and safe clamping force with low physical effort
  • Long flat trajectory guide of the movable jaw
  • Various custom jaws available
  • the total length of the clamping device remains the same even with large workpieces
  • Custom guide on request: grooves and fixing holes, ...

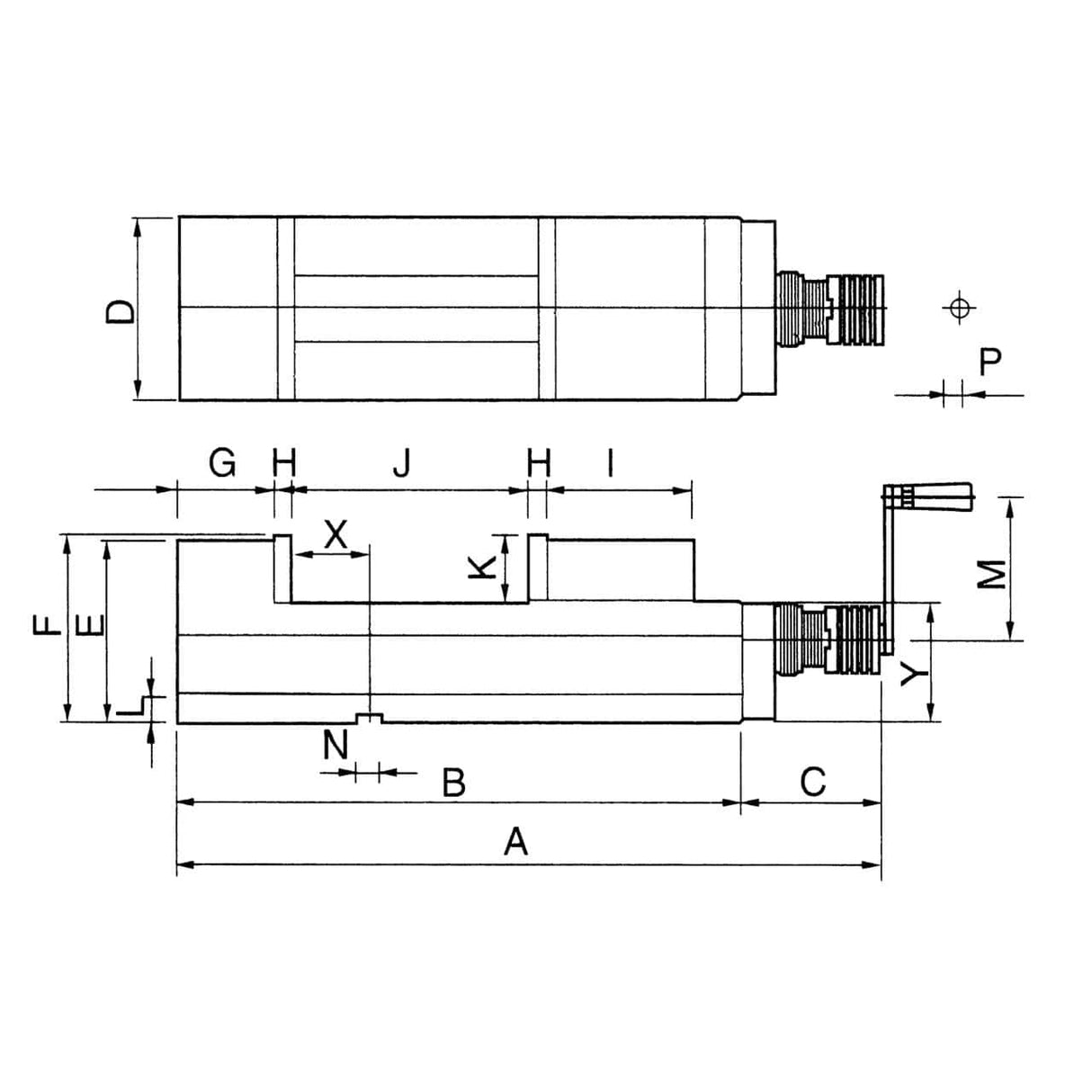

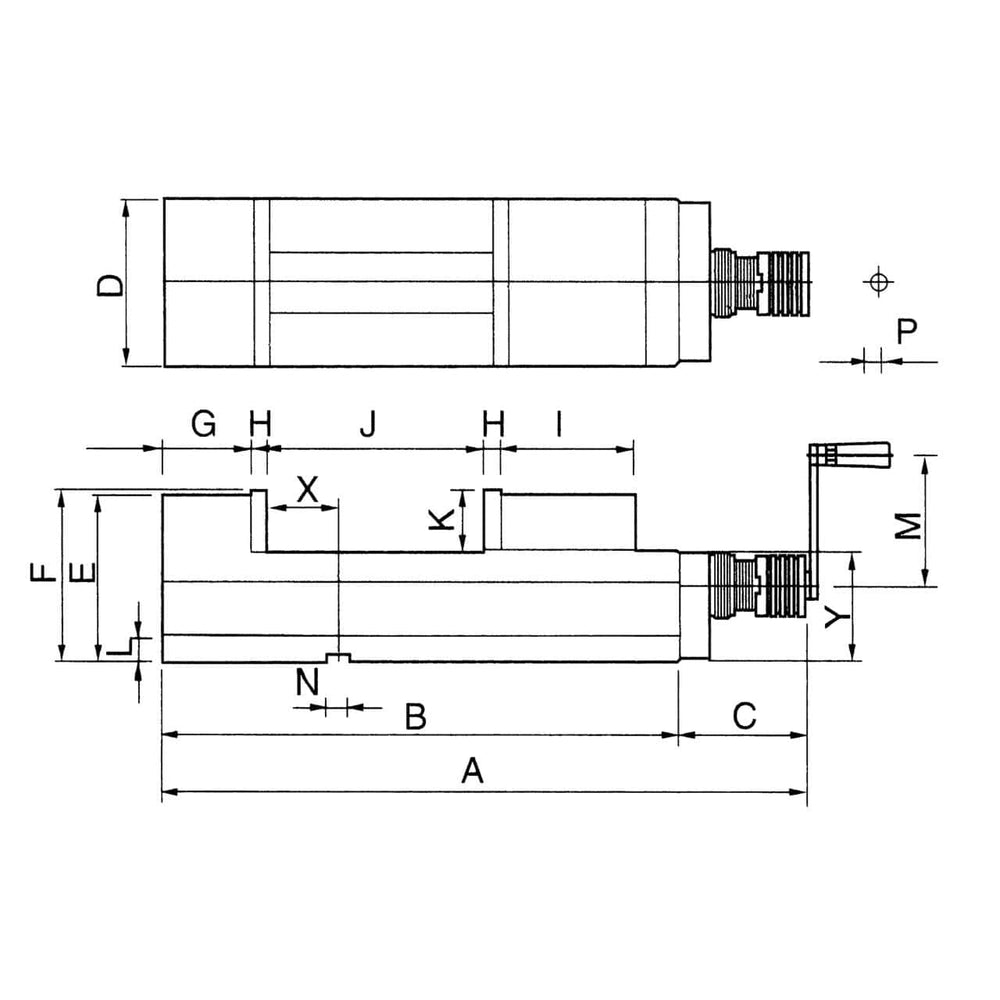

technical specifications

TO

475 mm

B

340 mm

C

135 mm

d

101 mm

AND

130 mm

F

133 mm

G

65 mm

h

15 mm

the

105 mm

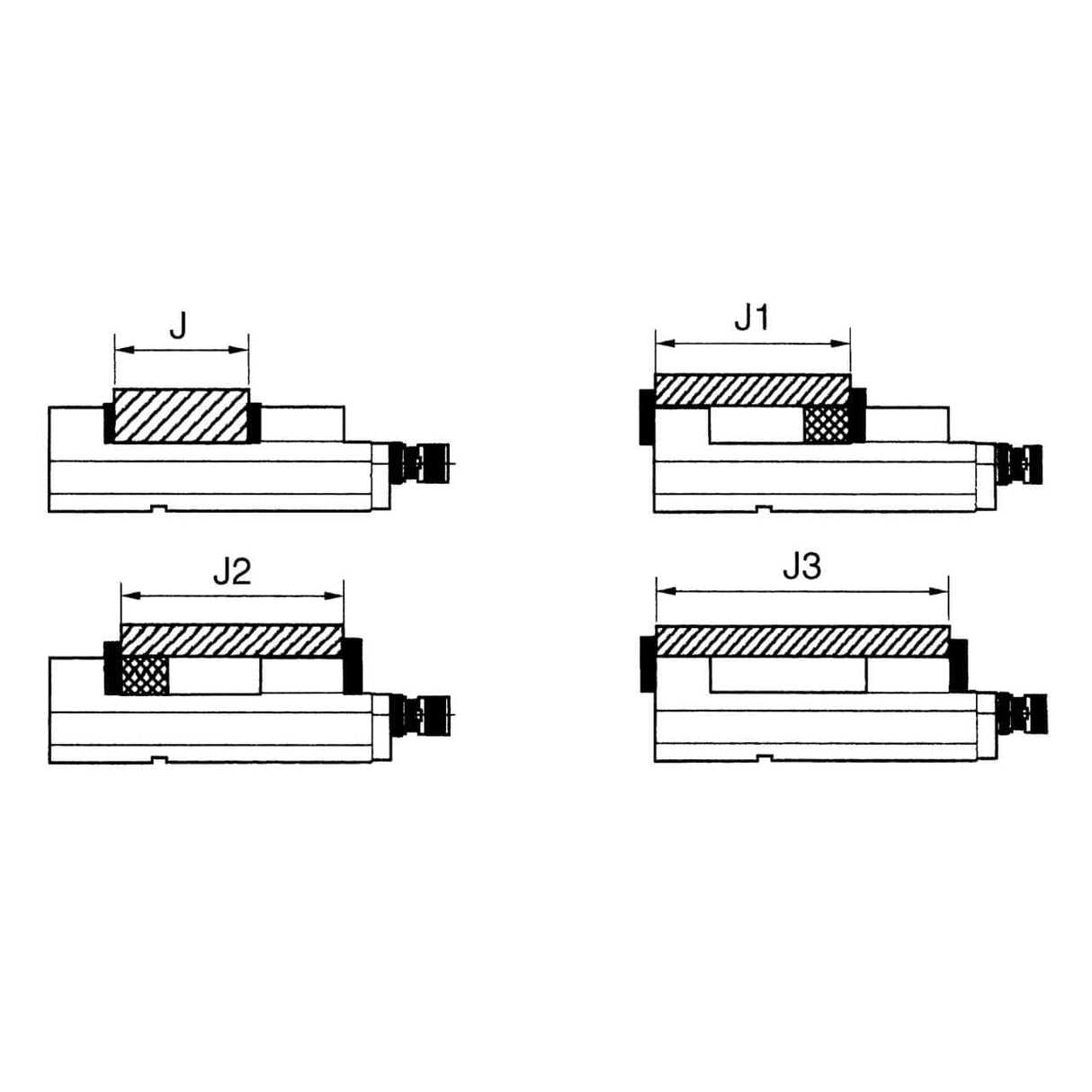

J

0 - 125 mm

J1

125 - 190 mm

J2

125 - 230 mm

J3

125 - 320 mm

K

48 mm

THE

22 mm

M

125 mm

N

16 mm

P

14 mm

X

45 mm

Y

85 mm

Max. clamping force

3500 kg

Weight approx.

27 kg
